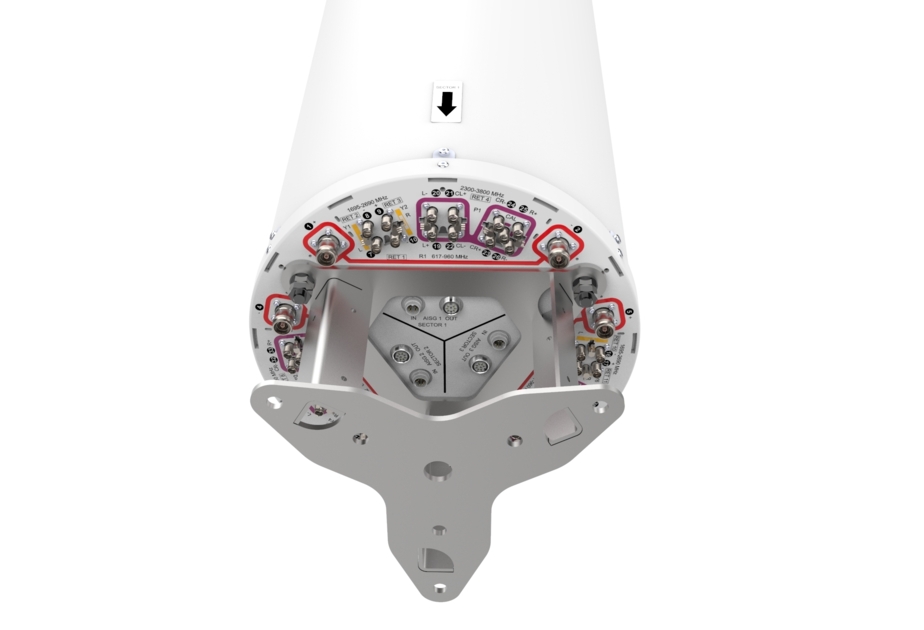

3X-KVVQ4-65B-R12
42-port tri-sector antenna, 6x617-960, 12x1695-2690MHz, 65°HPBW, 24x2300-3800MHz Beamformer, 12x RET
Features and benefits
- Pole mounting kit not included. Separate pole mounting kit TS-MNT-TOP-370 available for pole diameter from 150 mm (5.9 inch) to 273 mm (10.7 inch). Please check Optional Mounting Kits section for more details
- 42-Port, Tri-Sector Design: Covers low, mid, and high bands (6x617-960MHz, 12x1695-2690MHz, 24x2300-3800MHz) for versatile network applications
- Future-Proof & 5G-Ready: Integrates 4T4R in mid FDD bands (1695-2690MHz) and 8T8R in high TDD band (2300-3800MHz), supporting flexible deployment of 2.3/2.6 or 3.5 GHz configurations Beamforming and Soft Split
- Optimized RF Pattern: Symmetrical internal design ensures consistent performance across ports, with column spacing for enhanced beamforming in the 2300-3800MHz bands
- Compact Design: Space-efficient with flexible internal RET control for streamlined site integration. The TS-MNT-TOP-370 mounting kit is available to simplify installation on low-profile sites
Specifications
General specifications
| Antenna Type | DualPol® tri-sector |
| Band | Multiband |
| Calibration Connector Interface | M-LOC Female |
| Calibration Connector Quantity | 3 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| RF Connector Interface | 4.3-10 Female | M-LOC Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 6 |
| RF Connector Quantity, total | 42 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Internal RET | High band (3) | Low band (3) | Mid band (6) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Length | 2100 mm | 82.677 in |
| Outer Diameter | 370 mm | 14.567 in |

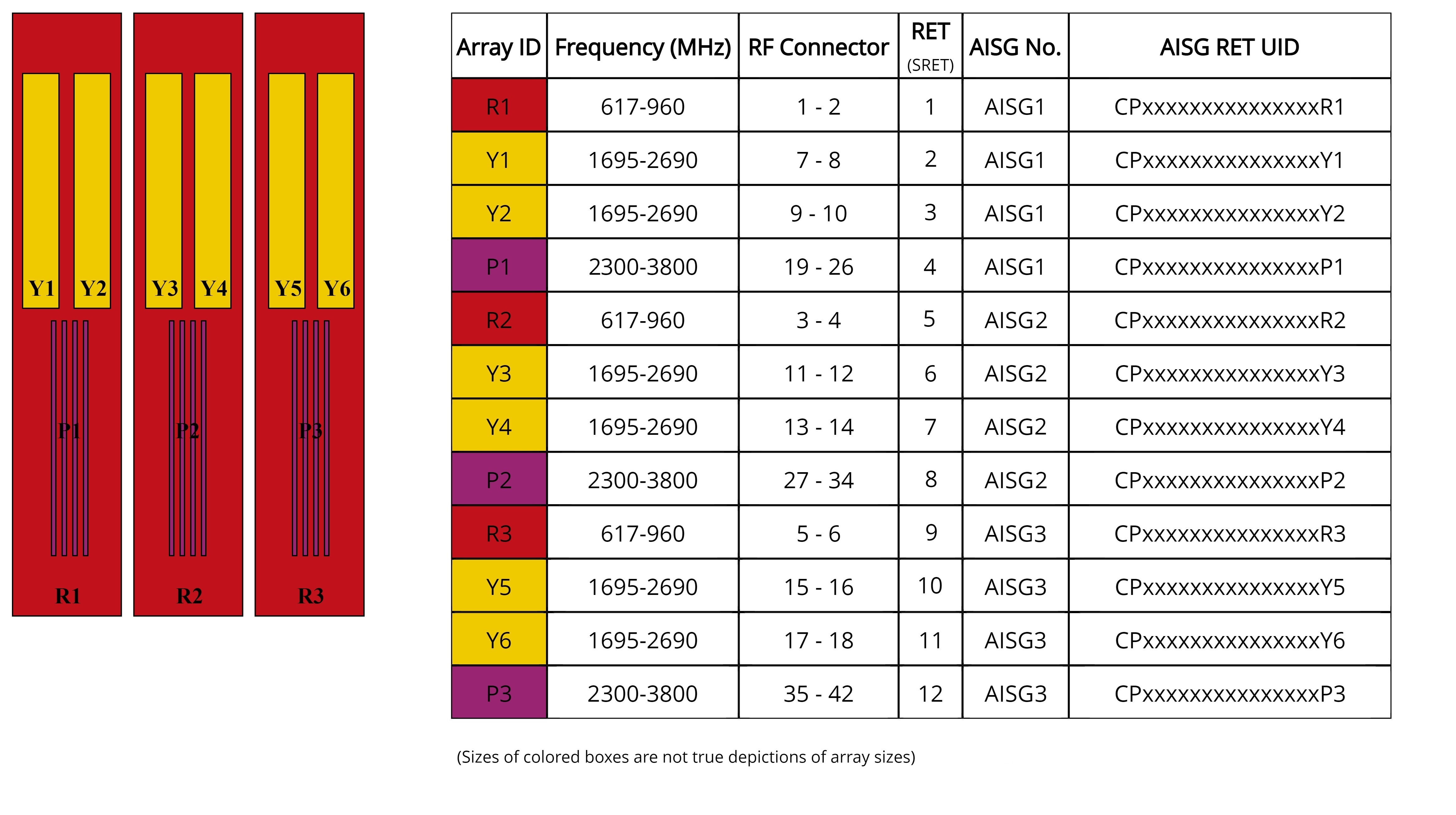

Array layout
| Click on image to enlarge. |

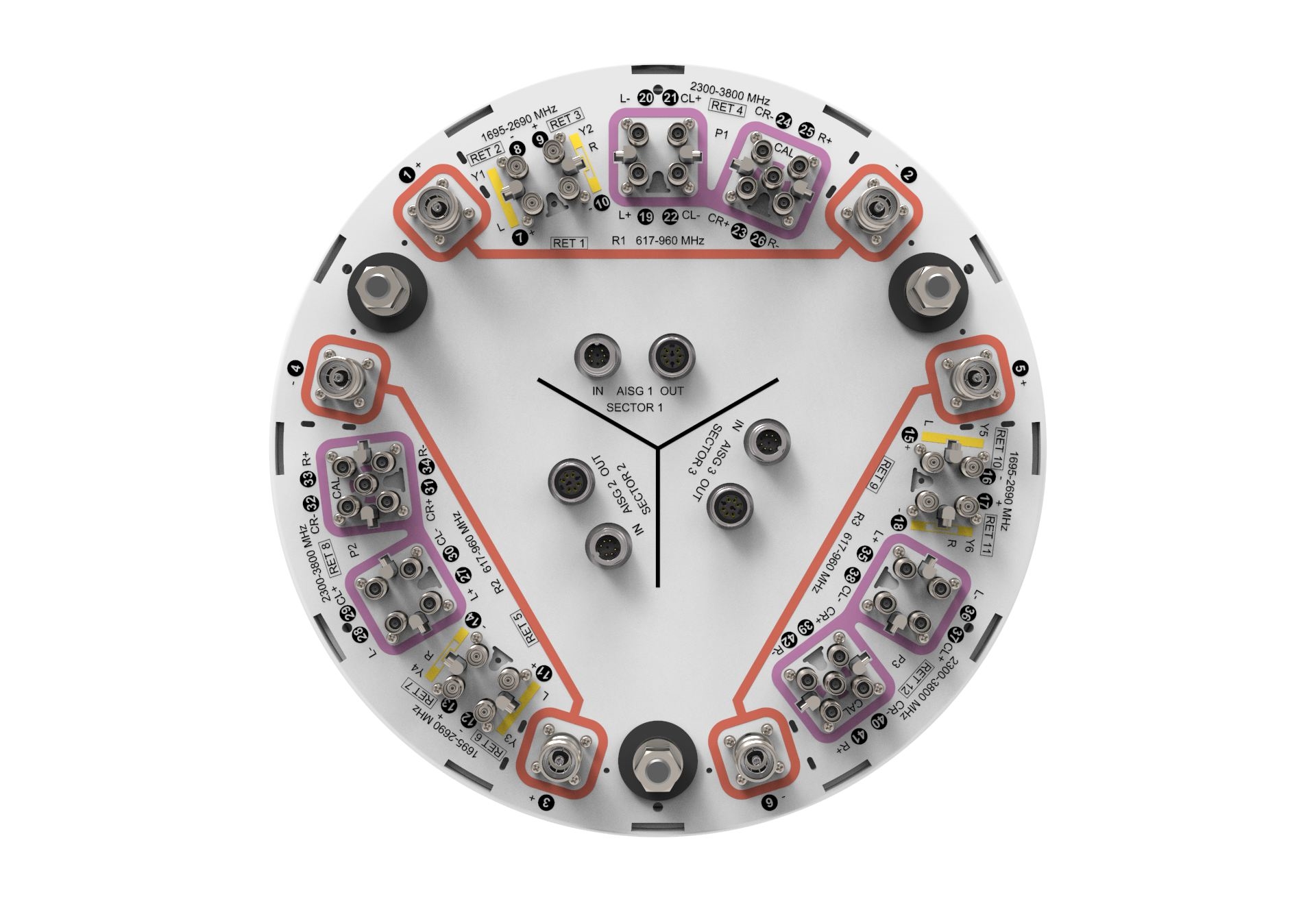

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,200 W @ 50 °C |
Electrical specifications
| R1-R3 | R1-R3 | R1-R3 | R1-R3 | Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | P1-P3 | P1-P3 | |
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| RF Port | 1-6 | 1-6 | 1-6 | 1-6 | 7-18 | 7-18 | 7-18 | 7-18 | 19-42 | 19-42 |
| Gain, Maximum, dBi | 14.900 | 15.400 | 15.900 | 16.000 | 17.100 | 17.600 | 17.600 | 17.600 | 16.400 | 17.300 |
| Gain at Mid Tilt, dBi | 14.5 | 14.9 | 15.5 | 15.7 | 16.3 | 17.1 | 17.2 | 17.1 | 14.8 | 16.2 |
| Beamwidth, Horizontal, degrees | 78 | 77 | 73 | 70 | 65 | 62 | 62 | 60 | 87 | 65 |
| Beamwidth, Vertical, degrees | 12.3 | 11.3 | 10.1 | 9.3 | 7.8 | 6.9 | 6 | 5.7 | 8.5 | 6.2 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 22 | 21 | 16 | 17 | 17 | 18 | 16 | 10 | 13 |
| Front-to-Back Ratio at 180°, dB | 27 | 28 | 31 | 30 | 30 | 33 | 30 | 29 | 28 | 28 |
| Coupling level, Amp, Antenna port to Cal port, dB | -26 | -26 | ||||||||
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 | ||||||||
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 | ||||||||
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 | ||||||||
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 23 | 23 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Co-polarization, dB | 18 | 18 | ||||||||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -140 | -140 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 250 | 250 | 200 | 200 | 75 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 17.3 | 17.5 | ||||||||
| Beamwidth, Vertical, degrees | 8.5 | 6.2 | ||||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 25 | 22 | ||||||||
| USLS (First Lobe), dB | 15 | 14 |
Electrical specifications, service beam
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| Steered 0° Gain, dBi | 20.3 | 21.5 | ||||||||
| Steered 0° Beamwidth, Horizontal, degrees | 24 | 18 | ||||||||
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 29 | 28 | ||||||||
| Steered 0° Horizontal Sidelobe, dB | 13 | 10 | ||||||||
| Steered 30° Gain, dBi | 19.4 | 19.6 | ||||||||
| Steered 30° Beamwidth, Horizontal, degrees | 27 | 20 | ||||||||
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 27 | 25 |
Electrical specifications, soft split
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 19.1 | |||||||||
| Beamwidth, Horizontal, degrees | 28 | |||||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 29 | |||||||||
| Horizontal Sidelobe, dB | 11 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 240.0 N @ 150 km/h (54.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 2461 mm | 96.890 in |
| Weight, gross | 62.7 kg | 138.230 lb |
| Weight, net | 53.9 kg | 118.829 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | DualPol® tri-sector |
| Band | Multiband |
| Calibration Connector Interface | M-LOC Female |
| Calibration Connector Quantity | 3 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| RF Connector Interface | 4.3-10 Female | M-LOC Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 6 |
| RF Connector Quantity, total | 42 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Internal RET | High band (3) | Low band (3) | Mid band (6) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Length | 2100 mm | 82.677 in |
| Outer Diameter | 370 mm | 14.567 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 960 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,200 W @ 50 °C |
Electrical specifications
| R1-R3 | R1-R3 | R1-R3 | R1-R3 | Y1-Y6 | Y1-Y6 | Y1-Y6 | Y1-Y6 | P1-P3 | P1-P3 | |
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| RF Port | 1-6 | 1-6 | 1-6 | 1-6 | 7-18 | 7-18 | 7-18 | 7-18 | 19-42 | 19-42 |
| Gain, Maximum, dBi | 14.900 | 15.400 | 15.900 | 16.000 | 17.100 | 17.600 | 17.600 | 17.600 | 16.400 | 17.300 |
| Gain at Mid Tilt, dBi | 14.5 | 14.9 | 15.5 | 15.7 | 16.3 | 17.1 | 17.2 | 17.1 | 14.8 | 16.2 |
| Beamwidth, Horizontal, degrees | 78 | 77 | 73 | 70 | 65 | 62 | 62 | 60 | 87 | 65 |
| Beamwidth, Vertical, degrees | 12.3 | 11.3 | 10.1 | 9.3 | 7.8 | 6.9 | 6 | 5.7 | 8.5 | 6.2 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 22 | 21 | 16 | 17 | 17 | 18 | 16 | 10 | 13 |
| Front-to-Back Ratio at 180°, dB | 27 | 28 | 31 | 30 | 30 | 33 | 30 | 29 | 28 | 28 |
| Coupling level, Amp, Antenna port to Cal port, dB | -26 | -26 | ||||||||
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 | ||||||||
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 | ||||||||
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 | ||||||||
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 23 | 23 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Co-polarization, dB | 18 | 18 | ||||||||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -140 | -140 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 250 | 250 | 200 | 200 | 75 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 17.3 | 17.5 | ||||||||
| Beamwidth, Vertical, degrees | 8.5 | 6.2 | ||||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 25 | 22 | ||||||||
| USLS (First Lobe), dB | 15 | 14 |
Electrical specifications, service beam
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| Steered 0° Gain, dBi | 20.3 | 21.5 | ||||||||
| Steered 0° Beamwidth, Horizontal, degrees | 24 | 18 | ||||||||
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 29 | 28 | ||||||||
| Steered 0° Horizontal Sidelobe, dB | 13 | 10 | ||||||||
| Steered 30° Gain, dBi | 19.4 | 19.6 | ||||||||
| Steered 30° Beamwidth, Horizontal, degrees | 27 | 20 | ||||||||
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 27 | 25 |
Electrical specifications, soft split
| Frequency Band, MHz | 617–698 | 698–806 | 790–894 | 890–960 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 19.1 | |||||||||
| Beamwidth, Horizontal, degrees | 28 | |||||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 29 | |||||||||
| Horizontal Sidelobe, dB | 11 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 240.0 N @ 150 km/h (54.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 2461 mm | 96.890 in |
| Weight, gross | 62.7 kg | 138.230 lb |
| Weight, net | 53.9 kg | 118.829 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
