4P-4M-A2-V5
4-port sector antenna, 4x 1695–2690 MHz, 65°HPBW, 2x RET
Features and benefits
- Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE at a later date
- Employs state-of-the-art ultra-wideband technology providing excellent RF performance in all bands
- Antenna with integrated pluggable RET and retractable tilt scale indicators
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2B |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 257 mm | 10.118 in |
| Depth | 87 mm | 3.425 in |
| Length | 1377 mm | 54.213 in |
| Net Weight, antenna only | 9.5 kg | 20.944 lb |

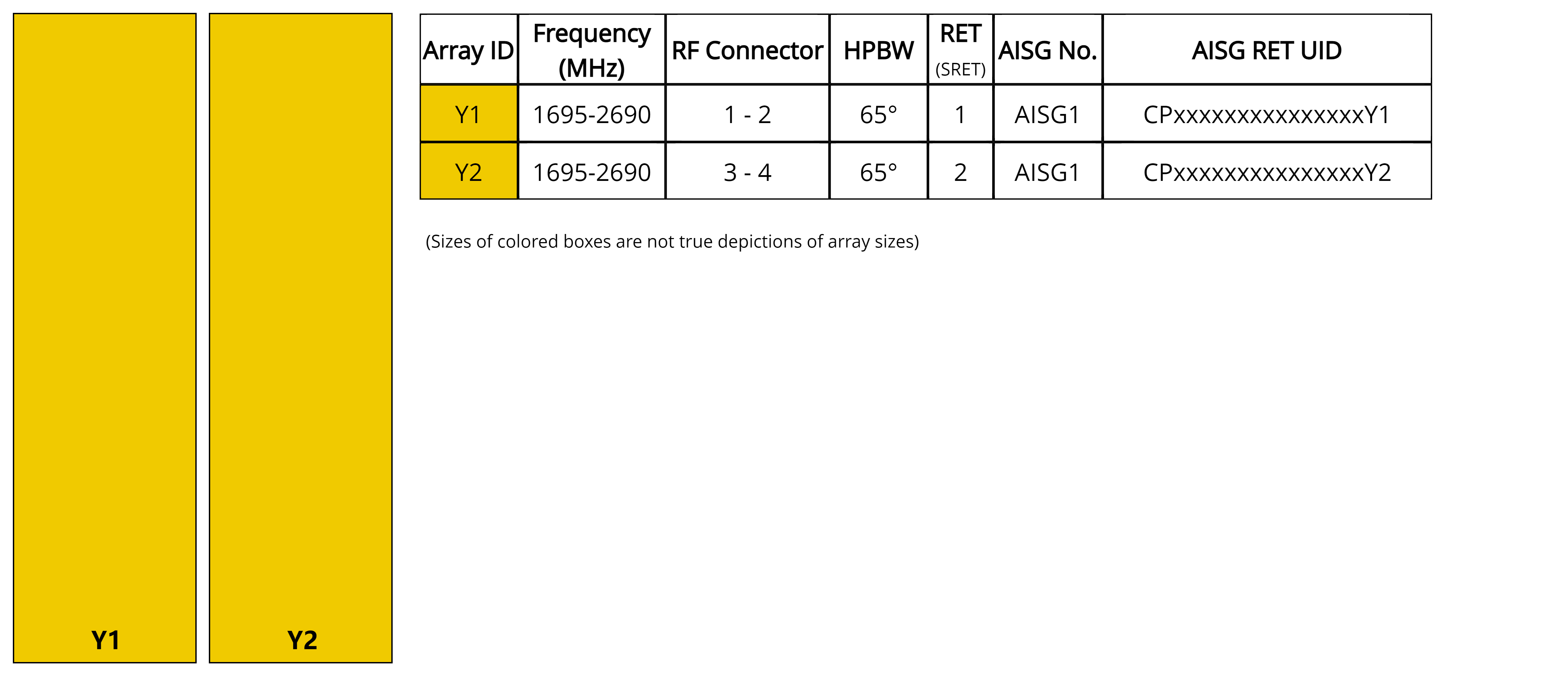

Array layout
| Click on image to enlarge. |

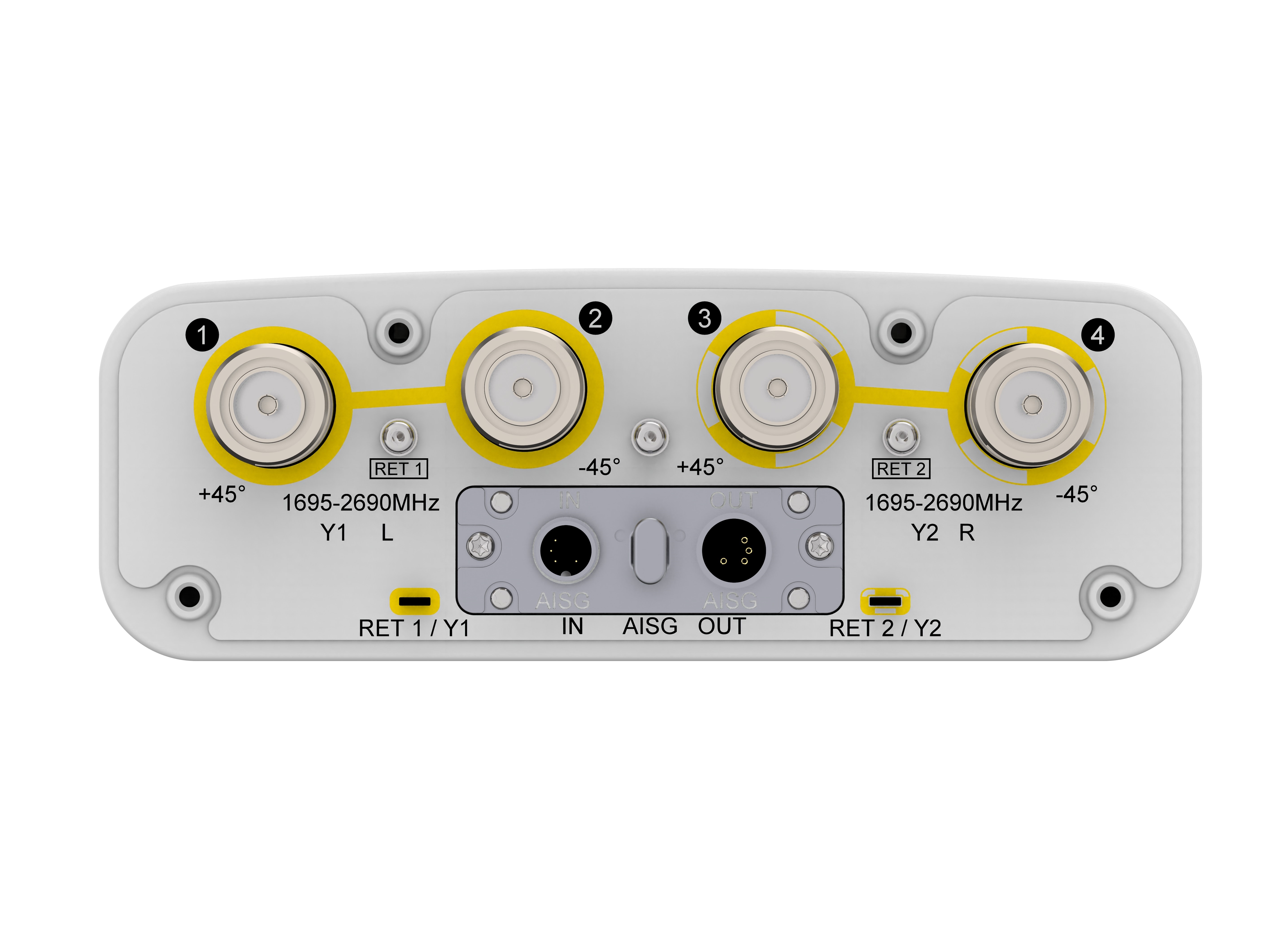

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 450 W |
Electrical specifications
| Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 1695–1880 | 1850–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Gain, dBi | 17.3 | 17.7 | 18.2 | 18.5 | 18.2 |
| Beamwidth, Horizontal, degrees | 64 | 63 | 62 | 61 | 56 |
| Beamwidth, Vertical, degrees | 7.1 | 6.8 | 6.2 | 5.3 | 5 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 20 | 23 | 22 | 16 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 31 | 29 | 29 | 30 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 250 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 1695–1880 | 1850–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| Beamwidth, Horizontal Tolerance, degrees | ±4 | ±1 | ±2 | ±3 | ±3 |
| Beamwidth, Vertical Tolerance, degrees | ±0.4 | ±0.2 | ±0.4 | ±0.3 | ±0.2 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 278.0 N @ 150 km/h (62.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 75.0 N @ 150 km/h (16.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 237.0 N @ 150 km/h (53.3 lbf @ 150 km/h) |
Packaging and weights
| Width, packed | 352 mm | 13.858 in |
| Depth, packed | 207 mm | 8.150 in |
| Length, packed | 1557 mm | 61.299 in |
| Weight, gross | 15.6 kg | 34.392 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2B |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 257 mm | 10.118 in |
| Depth | 87 mm | 3.425 in |
| Length | 1377 mm | 54.213 in |
| Net Weight, antenna only | 9.5 kg | 20.944 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 450 W |
Electrical specifications
| Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 1695–1880 | 1850–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Gain, dBi | 17.3 | 17.7 | 18.2 | 18.5 | 18.2 |
| Beamwidth, Horizontal, degrees | 64 | 63 | 62 | 61 | 56 |
| Beamwidth, Vertical, degrees | 7.1 | 6.8 | 6.2 | 5.3 | 5 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 20 | 23 | 22 | 16 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 31 | 29 | 29 | 30 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 250 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 1695–1880 | 1850–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| Beamwidth, Horizontal Tolerance, degrees | ±4 | ±1 | ±2 | ±3 | ±3 |
| Beamwidth, Vertical Tolerance, degrees | ±0.4 | ±0.2 | ±0.4 | ±0.3 | ±0.2 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 278.0 N @ 150 km/h (62.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 75.0 N @ 150 km/h (16.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 237.0 N @ 150 km/h (53.3 lbf @ 150 km/h) |
Packaging and weights
| Width, packed | 352 mm | 13.858 in |
| Depth, packed | 207 mm | 8.150 in |
| Length, packed | 1557 mm | 61.299 in |
| Weight, gross | 15.6 kg | 34.392 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
