5UPX0805F

10-port multibeam antenna, 10x 698–894 MHz, 5 x 13.5° HPBW, fixed electrical tilt. Ships with two T-041-GL-E mounting kits.

Finish making your selections or clear them to view relevant specifications.

Find a partner

Specifications

General specifications

Antenna Type	Multi-beam
Band	Single band
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Polyester fiberglass pultrusion
RF Connector Interface	7-16 DIN Female

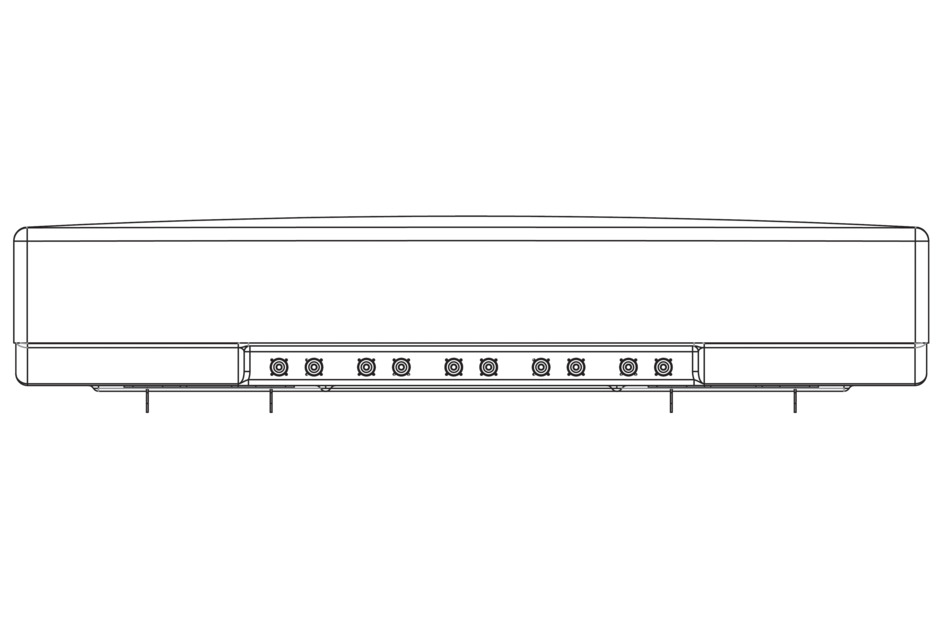

RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	10
RF Connector Quantity, total	10

Width	1574 mm \| 61.969 in
Depth	282 mm \| 11.102 in
Length	1617 mm \| 63.661 in
Net Weight, without mounting kit	85 kg \| 187.393 lb

Frequency Band, MHz	698–894
Gain, dBi	20.6
Beamwidth, Horizontal, degrees	13
Beamwidth, Vertical, degrees	17.1
Beam Tilt, degrees	6
USLS (First Lobe), dB	18
Front-to-Back Ratio at 180°, dB	35
CPR at Boresight, dB	12
Isolation, Cross Polarization, dB	25
VSWR \| Return loss, dB	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150
Input Power per Port, maximum, watts	300

Wind Loading @ Velocity, maximum	2,700.0 N @ 160 km/h (607.0 lbf @ 160 km/h)
Wind Speed, maximum	140 km/h (87 mph)

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
