DB436-C

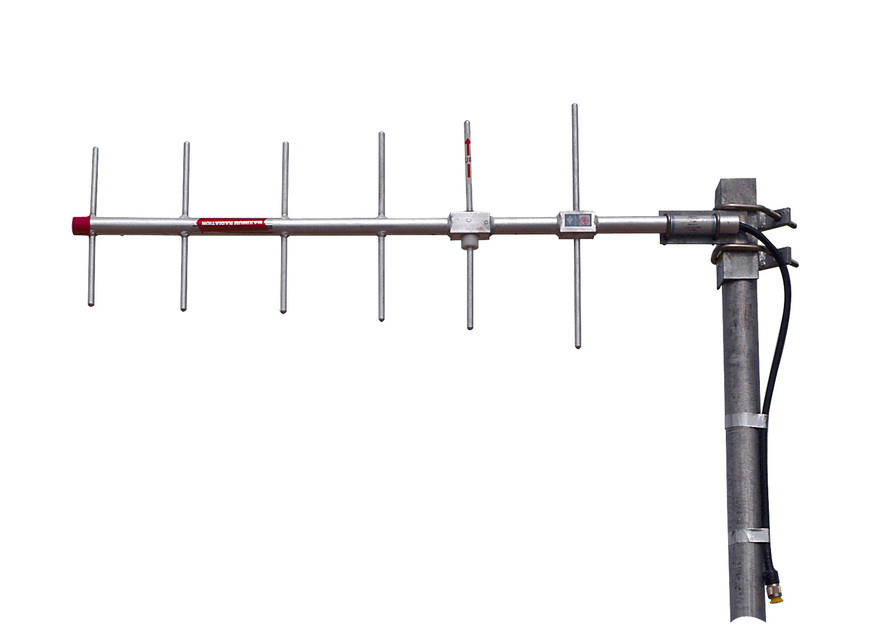

1-port sector (yagi) antenna, 450–470 MHz, 60° HPBW, fixed electrical tilt

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Silver
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radiator Material	Aluminum
RF Connector Interface	N Male
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	1
RF Connector Quantity, total	1

Width	368.3 mm \| 14.5 in
Depth	25.4 mm \| 1 in
Length	889 mm \| 35 in
Net Weight, without mounting kit	3.2 kg \| 7.055 lb

Frequency Band, MHz	450–470
Gain, dBi	12.1
Beamwidth, Horizontal, degrees	60
Beamwidth, Vertical, degrees	44
Beam Tilt, degrees	0
Front-to-Back Ratio at 180°, dB	16
VSWR \| Return loss, dB	1.5 \| 14.0
Input Power per Port, maximum, watts	250

Wind Loading @ Velocity, maximum	80.1 N @ 100 mph (18.0 lbf @ 100 mph)
Wind Speed, maximum	201 km/h (125 mph)

Included

U-bolts

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
