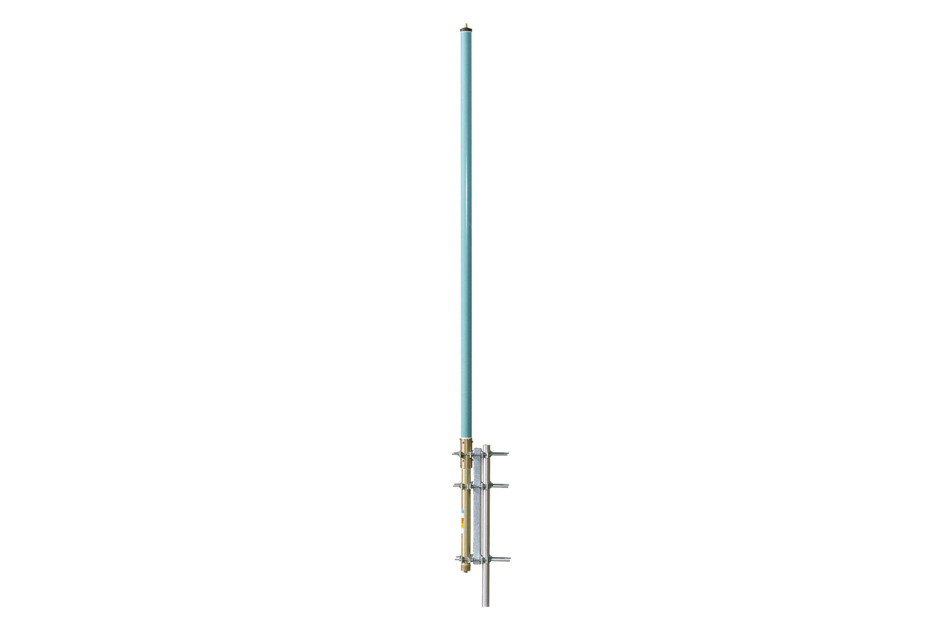

DB809KE-XT

1-port omni antenna, 806–869 MHz, 360° HPBW, fixed electrical tilt

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Omnidirectional antenna
  • Rugged, durable design, heavy duty radome for minimum tip deflection
  • Invert mountable

General specifications

Antenna Type Omni
Band Single band
Color Horizon blue
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Brass
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Length 3708 mm | 145.984 in
Net Weight, without mounting kit 12 kg | 26.455 lb
Outer Diameter 76 mm | 2.992 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 806 – 869 MHz
Polarization Vertical

Electrical specifications

Frequency Band, MHz 806–869
Gain, dBi 11.1
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 8
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
PIM, 5th Order, 2 x 20 W, dBc -150
Input Power per Port, maximum, watts 500

Mechanical specifications

Wind Loading @ Velocity, maximum 364.8 N @ 100 mph (82.0 lbf @ 100 mph)
Wind Speed, maximum 362 km/h (225 mph)

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
