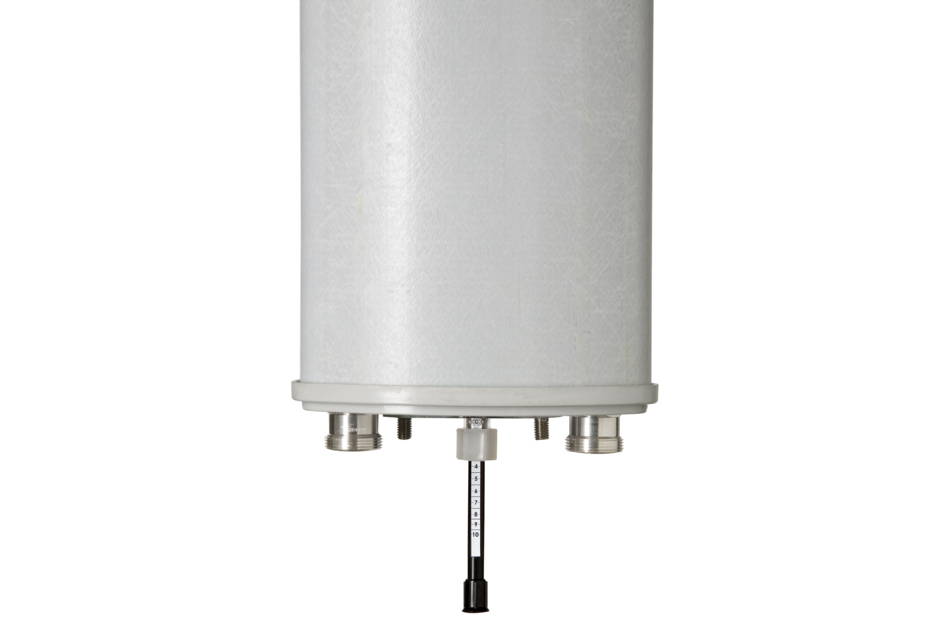

HBX-9016DS-VTM | HBX-9016DS-A1M

2-port sector antenna, 2x 1710–2180 MHz, 90° HPBW, RET compatible

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Excellent gain, USLS, VSWR, and PIM specification to improve network quality
  • Ideal solution to maximize coverage and capacity in suburban and rural areas
  • Fully compatible with ANDREW remote electrical tilt system for greater OpEx savings
  • Wide horizontal and narrow vertical beamwidth to maximize coverage and capacity

General specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 2

Remote electrical tilt (ret) information

Model with Factory Installed AISG 2.0 Actuator HBX-9016DS-A1M

Dimensions

Width 172 mm | 6.772 in
Depth 97 mm | 3.819 in
Length 1897 mm | 74.685 in
Net Weight, without mounting kit 7.6 kg | 16.755 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain, dBi 17.7 17.7 18.0
Beamwidth, Horizontal, degrees 85 86 87
Beamwidth, Vertical, degrees 5.1 4.7 4.4
Beam Tilt, degrees 0–6 0–6 0–6
USLS (First Lobe), dB 18 18 18
Front-to-Back Ratio at 180°, dB 28 28 27
CPR at Boresight, dB 24 26 23
CPR at Sector, dB 14 13 11
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.4 | 15.6 1.4 | 15.6 1.4 | 15.6
PIM, 3rd Order, 2 x 20 W, dBc -155 -155 -155
Input Power per Port, maximum, watts 350 350 350

Mechanical specifications

Wind Loading @ Velocity, frontal 302.0 N @ 150 km/h (67.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 140.0 N @ 150 km/h (31.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 503.0 N @ 150 km/h (113.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 283 mm | 11.142 in
Depth, packed 200 mm | 7.874 in
Length, packed 2206 mm | 86.85 in
Weight, gross 16.6 kg | 36.597 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 2

Remote electrical tilt (ret) information

Model with Factory Installed AISG 2.0 Actuator HBX-9016DS-A1M

Dimensions

Width 172 mm | 6.772 in
Depth 97 mm | 3.819 in
Length 1897 mm | 74.685 in
Net Weight, without mounting kit 7.6 kg | 16.755 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain, dBi 17.7 17.7 18.0
Beamwidth, Horizontal, degrees 85 86 87
Beamwidth, Vertical, degrees 5.1 4.7 4.4
Beam Tilt, degrees 0–6 0–6 0–6
USLS (First Lobe), dB 18 18 18
Front-to-Back Ratio at 180°, dB 28 28 27
CPR at Boresight, dB 24 26 23
CPR at Sector, dB 14 13 11
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.4 | 15.6 1.4 | 15.6 1.4 | 15.6
PIM, 3rd Order, 2 x 20 W, dBc -155 -155 -155
Input Power per Port, maximum, watts 350 350 350

Mechanical specifications

Wind Loading @ Velocity, frontal 302.0 N @ 150 km/h (67.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 140.0 N @ 150 km/h (31.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 503.0 N @ 150 km/h (113.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 283 mm | 11.142 in
Depth, packed 200 mm | 7.874 in
Length, packed 2206 mm | 86.85 in
Weight, gross 16.6 kg | 36.597 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
