LLPX210R-V1

4-port sector antenna, 4x 2300–2700 MHz, 33° HPBW, 2x RET with manual override

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	ASA, UV stabilized
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female

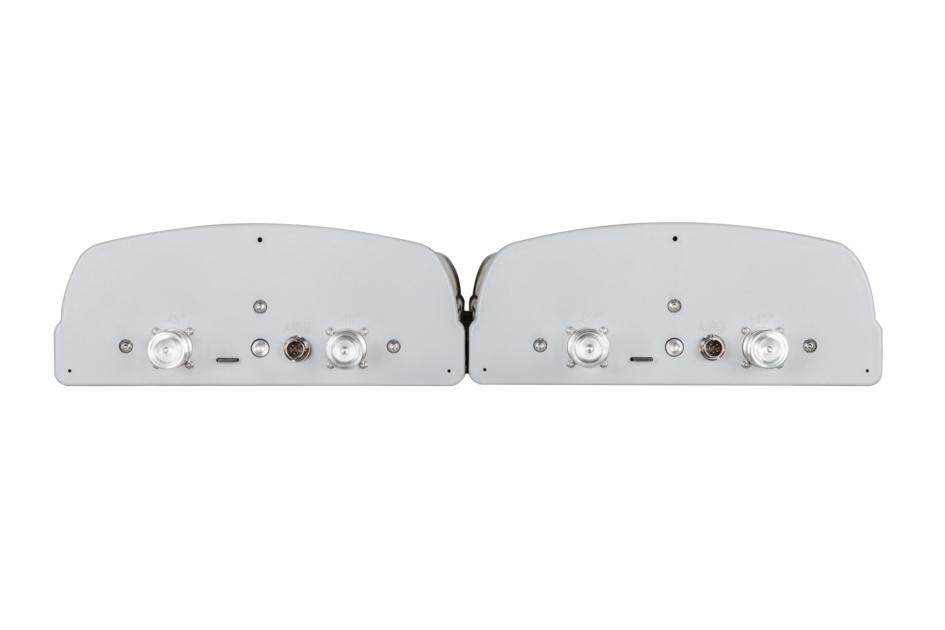

RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	0
RF Connector Quantity, total	4

RET Interface	8-pin DIN Male
RET Interface, quantity	2 male
Input Voltage	10–30 Vdc
Internal RET	High band (2)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	610 mm \| 24.016 in
Depth	115 mm \| 4.528 in
Length	1077 mm \| 42.402 in
Net Weight, without mounting kit	14.5 kg \| 31.967 lb

Frequency Band, MHz	2300–2500	2500–2700
Gain, dBi	20.1	20.2
Beamwidth, Horizontal, degrees	34	31
Beamwidth, Vertical, degrees	7.3	6.8
Beam Tilt, degrees	0–10	0–10
USLS (First Lobe), dB	22	19
Null Fill, dB	-22	-22
Front-to-Back Ratio at 180°, dB	33	33
CPR at Boresight, dB	18	19
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port, maximum, watts	250	250

Wind Loading @ Velocity, frontal	862.0 N @ 150 km/h (193.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	70.0 N @ 150 km/h (15.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	889.0 N @ 150 km/h (199.9 lbf @ 150 km/h)
Wind Speed, maximum	200 km/h (124 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
