This product was discontinued on: March 31, 2021

0 Replacement products available

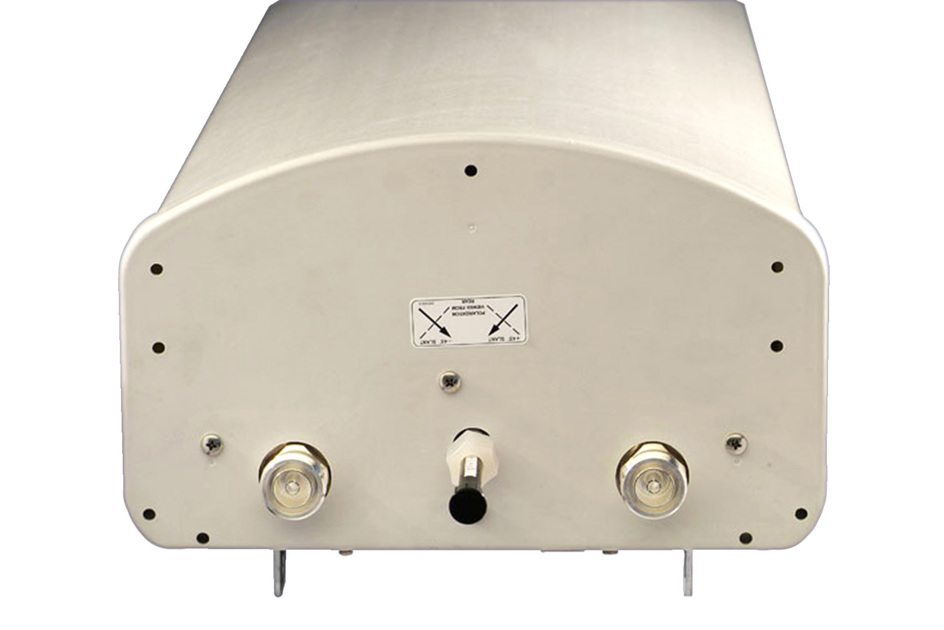

LNX-6515DS-VTM

2-port sector antenna, 2x 698–896 MHz, 65° HPBW, RET compatible

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Excellent choice to maximize both coverage and capacity in suburban and rural applications
Fully compatible with ANDREW remote electrical tilt system for greater OpEx savings
Exceptional horizontal pattern roll-off and strong front-to-back ratio
Extended bandwidth allows one antenna to serve multiple frequency allocations
Great solution to maximize network coverage and capacity
The RF connectors are designed for IP67 rating and the radome for IP56 rating

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Model with Factory Installed AISG 2.0 Actuator

LNX-6515DS-A1M

Width	301 mm \| 11.85 in
Depth	180.5 mm \| 7.106 in
Length	2453 mm \| 96.575 in
Net Weight, without mounting kit	19.8 kg \| 43.651 lb

Click on image to enlarge.

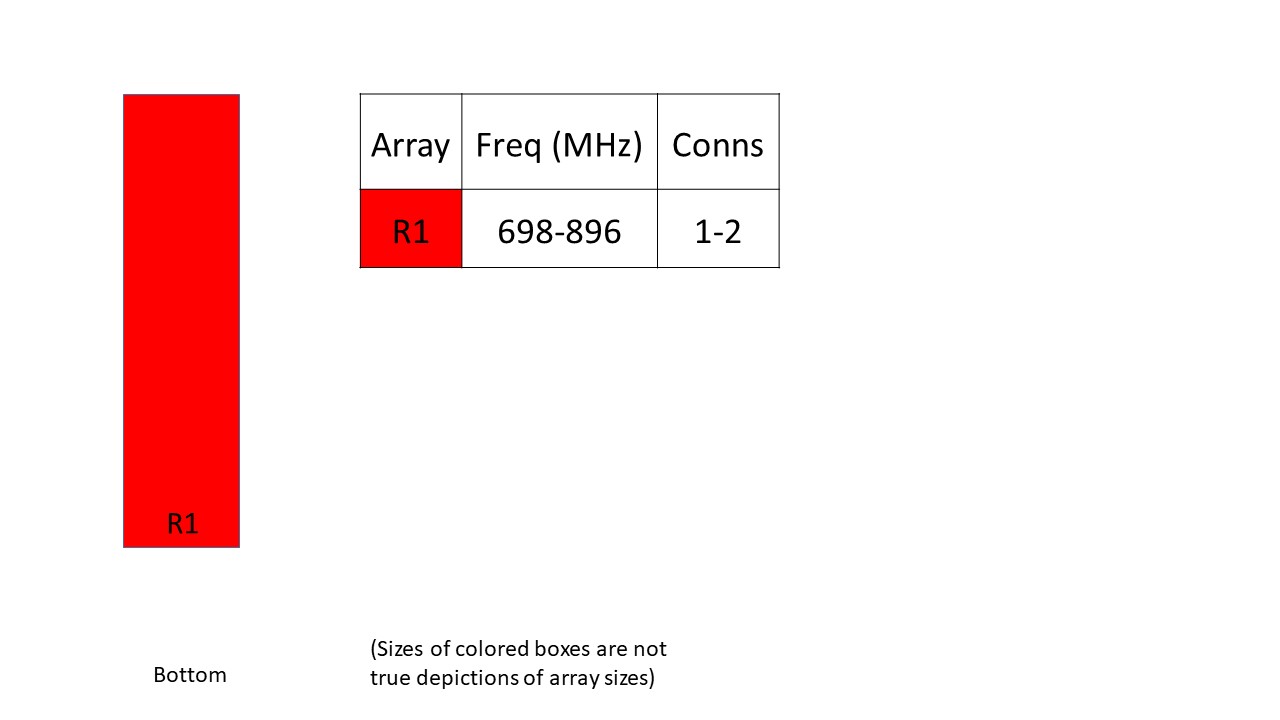

Frequency Band, MHz	698–806	806–896
Gain, dBi	16.7	17.6
Beamwidth, Horizontal, degrees	65	64
Beamwidth, Vertical, degrees	9.7	8.6
Beam Tilt, degrees	0–8	0–8
USLS (First Lobe), dB	17	17
Front-to-Back Ratio at 180°, dB	32	27
CPR at Boresight, dB	24	27
CPR at Sector, dB	15	13
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153
Input Power per Port, maximum, watts	400	400

Wind Loading @ Velocity, frontal	396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	333.0 N @ 150 km/h (74.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	762.0 N @ 150 km/h (171.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	401.0 N @ 150 km/h (90.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Model with Factory Installed AISG 2.0 Actuator

LNX-6515DS-A1M

Width	301 mm \| 11.85 in
Depth	180.5 mm \| 7.106 in
Length	2453 mm \| 96.575 in
Net Weight, without mounting kit	19.8 kg \| 43.651 lb

Frequency Band, MHz	698–806	806–896
Gain, dBi	16.7	17.6
Beamwidth, Horizontal, degrees	65	64
Beamwidth, Vertical, degrees	9.7	8.6
Beam Tilt, degrees	0–8	0–8
USLS (First Lobe), dB	17	17
Front-to-Back Ratio at 180°, dB	32	27
CPR at Boresight, dB	24	27
CPR at Sector, dB	15	13
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153
Input Power per Port, maximum, watts	400	400

Wind Loading @ Velocity, frontal	396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	333.0 N @ 150 km/h (74.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	762.0 N @ 150 km/h (171.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	401.0 N @ 150 km/h (90.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Click on image to enlarge.

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
