N45C-1XB1

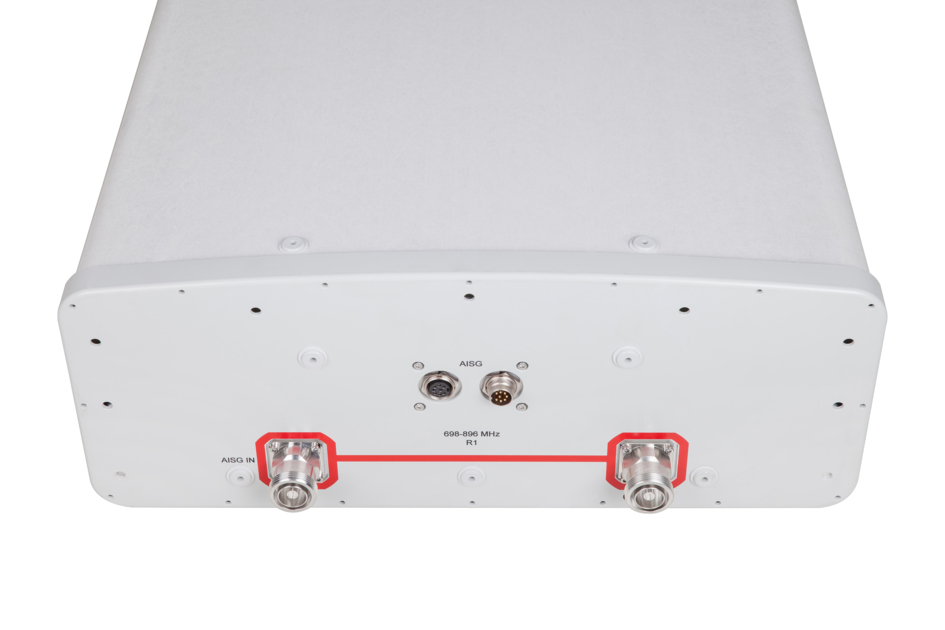

2-port sector antenna, 2x 698–896 MHz, 45° HPBW, 1x RET, internal SBT
Features and benefits
- Broadband, providing future-ready single antenna for application in 700 MHz and existing 850 MHz cellular operation
- Specifically designed to have physical dimensions similar to most existing cellular antennas
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Copper | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 2437 mm | 95.945 in |
| Net Weight, without mounting kit | 32 kg | 70.548 lb |

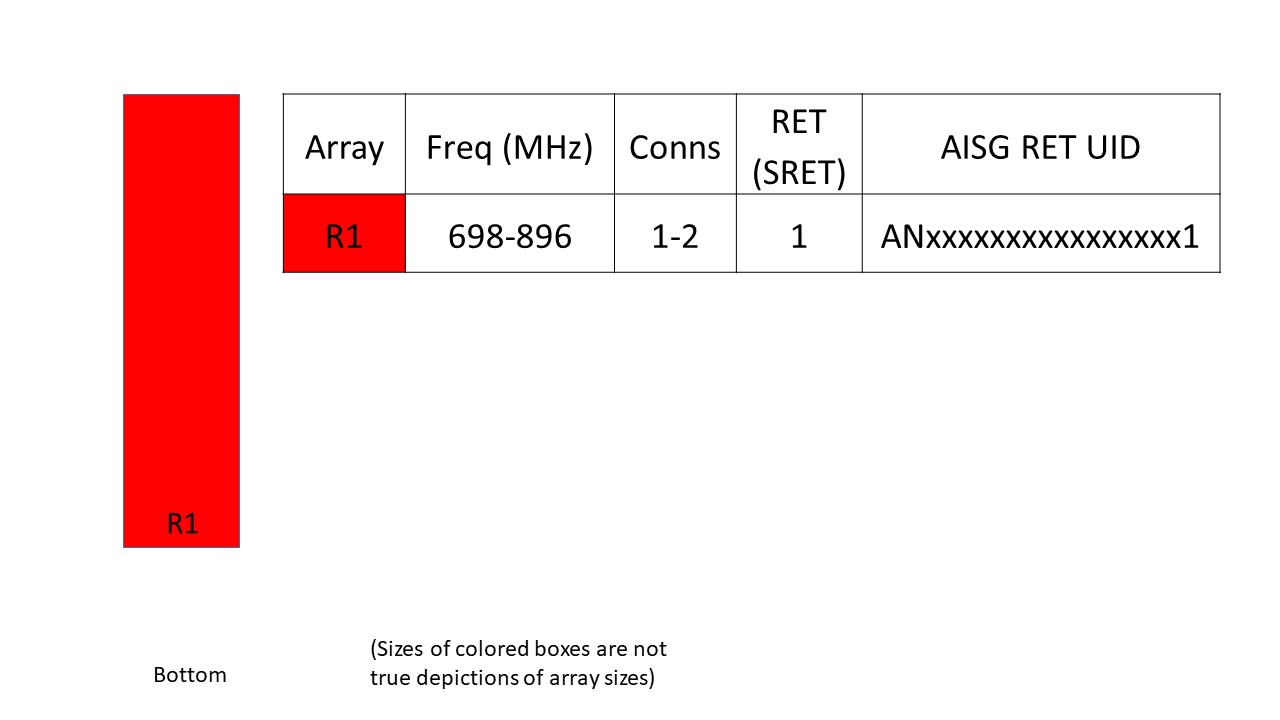

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 |
| Gain, dBi | 18.2 | 18.5 |
| Beamwidth, Horizontal, degrees | 47 | 43 |
| Beamwidth, Vertical, degrees | 9 | 8.3 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 14 | 14 |
| Front-to-Back Ratio at 180°, dB | 29 | 30 |
| CPR at Boresight, dB | 27 | 21 |
| CPR at 10 dB Horizontal Beamwidth, dB | 11.000000 | 13.000000 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 1.4 m² | 15.069 ft² |
| Effective Projective Area (EPA), lateral | 0.3 m² | 3.229 ft² |
| Mechanical Tilt Range | 0°–11° |
| Wind Loading @ Velocity, frontal | 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 567 mm | 22.323 in |
| Depth, packed | 311 mm | 12.244 in |
| Length, packed | 2559 mm | 100.748 in |
| Weight, gross | 51.7 kg | 113.979 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Copper | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 2437 mm | 95.945 in |
| Net Weight, without mounting kit | 32 kg | 70.548 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 |
| Gain, dBi | 18.2 | 18.5 |
| Beamwidth, Horizontal, degrees | 47 | 43 |
| Beamwidth, Vertical, degrees | 9 | 8.3 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 14 | 14 |
| Front-to-Back Ratio at 180°, dB | 29 | 30 |
| CPR at Boresight, dB | 27 | 21 |
| CPR at 10 dB Horizontal Beamwidth, dB | 11.000000 | 13.000000 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 1.4 m² | 15.069 ft² |
| Effective Projective Area (EPA), lateral | 0.3 m² | 3.229 ft² |
| Mechanical Tilt Range | 0°–11° |
| Wind Loading @ Velocity, frontal | 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 567 mm | 22.323 in |
| Depth, packed | 311 mm | 12.244 in |
| Length, packed | 2559 mm | 100.748 in |
| Weight, gross | 51.7 kg | 113.979 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
