NHH-55A-R2B
6-port sector antenna, 2x 698–896, 4x 1695–2200, 55° HPBW, 2x RETs
Features and benefits
- Utilizes Pattern Shaping Technology to reduce cell overlap and maximize SINR (Signal to Interference and Noise Ratio)
- Superior SPR (Sector Power Ratio) for best-in-class data throughput rates
- Excellent pattern overlay across all bands
- Low band and mid band performance mirrors performance of the equivalent ten port antenna
- Internal SBTs on low and mid band allow remote RET control from the radio over the RF jumper cable
- One LB RET and one MB RET. Both mid band arrays are controlled by one RET to ensure same tilt level for best 4x4 MIMO performance
- Use optional BSAMNT-SBS-2-2 for side-by-side mounting of two hex and/or ten port 55° antennas
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 395 mm | 15.551 in |
| Depth | 228 mm | 8.976 in |
| Length | 1413 mm | 55.630 in |
| Net Weight, antenna only | 20 kg | 44.092 lb |

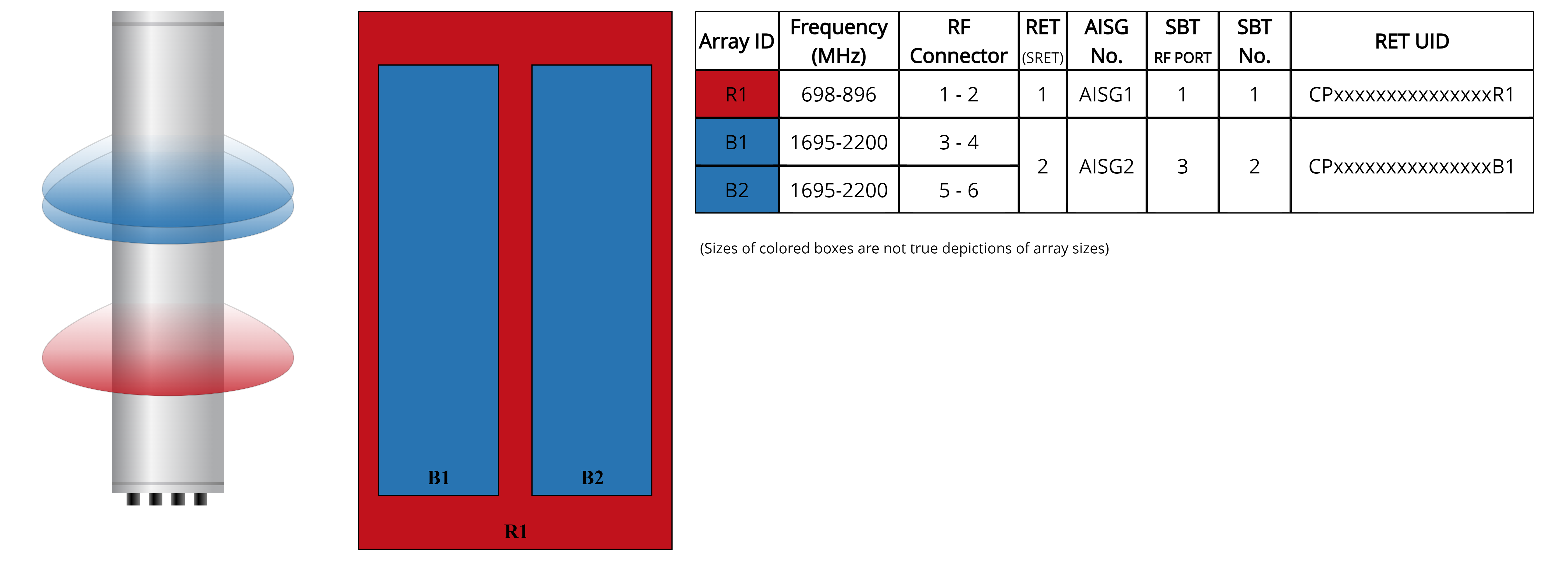

Array layout
| Click on image to enlarge. |

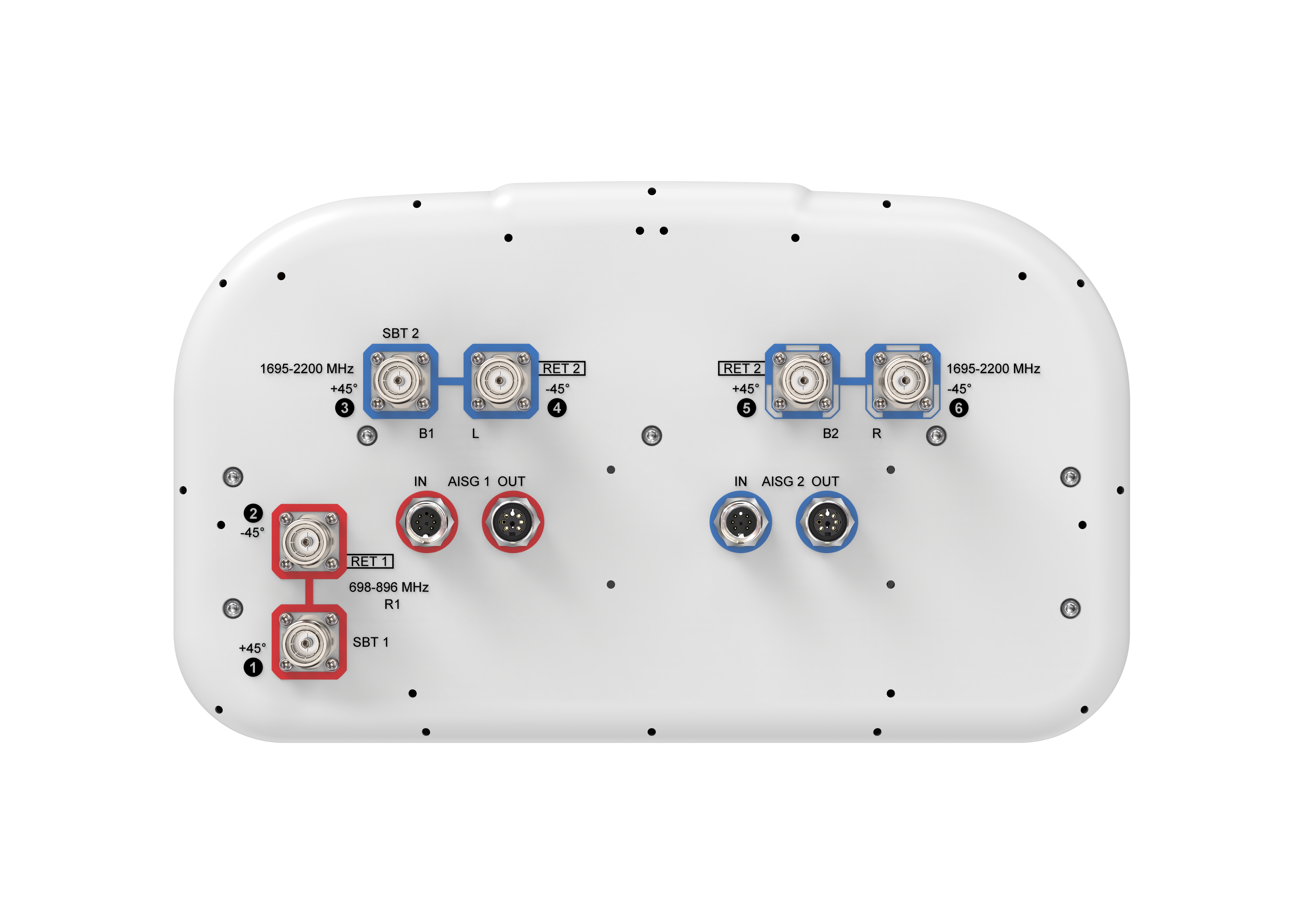

Port configuration
| Click on image to enlarge. |
Logo image
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W @ 50 °C |
Electrical specifications
| R1 | R1 | B1,B2 | B1,B2 | B1,B2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 |
| RF Port | 1,2 | 1,2 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 |
| Gain, dBi | 14.5 | 14.7 | 17.1 | 17.6 | 18.1 |
| Beamwidth, Horizontal, degrees | 59 | 54 | 58 | 58 | 55 |
| Beamwidth, Vertical, degrees | 16 | 14.6 | 7.1 | 6.8 | 6.4 |
| Beam Tilt, degrees | 0–18 | 0–18 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 16 | 17 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 31 | 31 | 32 | 32 | 32 |
| CPR at Boresight, dB | 21 | 21 | 17 | 19 | 22 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 203.0 N @ 150 km/h (45.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 180.0 N @ 150 km/h (40.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 407.0 N @ 150 km/h (91.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 232.0 N @ 150 km/h (52.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 505 mm | 19.882 in |
| Depth, packed | 386 mm | 15.197 in |
| Length, packed | 1545 mm | 60.827 in |
| Weight, gross | 32.9 kg | 72.532 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 395 mm | 15.551 in |
| Depth | 228 mm | 8.976 in |
| Length | 1413 mm | 55.630 in |
| Net Weight, antenna only | 20 kg | 44.092 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W @ 50 °C |
Electrical specifications
| R1 | R1 | B1,B2 | B1,B2 | B1,B2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 |
| RF Port | 1,2 | 1,2 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 |
| Gain, dBi | 14.5 | 14.7 | 17.1 | 17.6 | 18.1 |
| Beamwidth, Horizontal, degrees | 59 | 54 | 58 | 58 | 55 |
| Beamwidth, Vertical, degrees | 16 | 14.6 | 7.1 | 6.8 | 6.4 |
| Beam Tilt, degrees | 0–18 | 0–18 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 16 | 17 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 31 | 31 | 32 | 32 | 32 |
| CPR at Boresight, dB | 21 | 21 | 17 | 19 | 22 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 203.0 N @ 150 km/h (45.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 180.0 N @ 150 km/h (40.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 407.0 N @ 150 km/h (91.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 232.0 N @ 150 km/h (52.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 505 mm | 19.882 in |
| Depth, packed | 386 mm | 15.197 in |
| Length, packed | 1545 mm | 60.827 in |
| Weight, gross | 32.9 kg | 72.532 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
