NHHS4-45C-R3B

14 Port Sector Antenna, 2x 698-896 MHz, 4x 1695-2360 MHz 45° HPBW, and 8x 3400-3550/3700-4000 MHz Beamformer, 3x RETs and 3x SBTs

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
  • Separate RS-485 RET input/output for low and high band
  • One LB RET and one HB RET. Both high bands are controlled by one RET to ensure same tilt level for 4x Rx or 4x MIMO

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal Bias Tee Cal Port | Port 1 | Port 3
Internal RET High band (1) | Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 2437 mm | 95.945 in
Net Weight, antenna only 44.5 kg | 98.106 lb

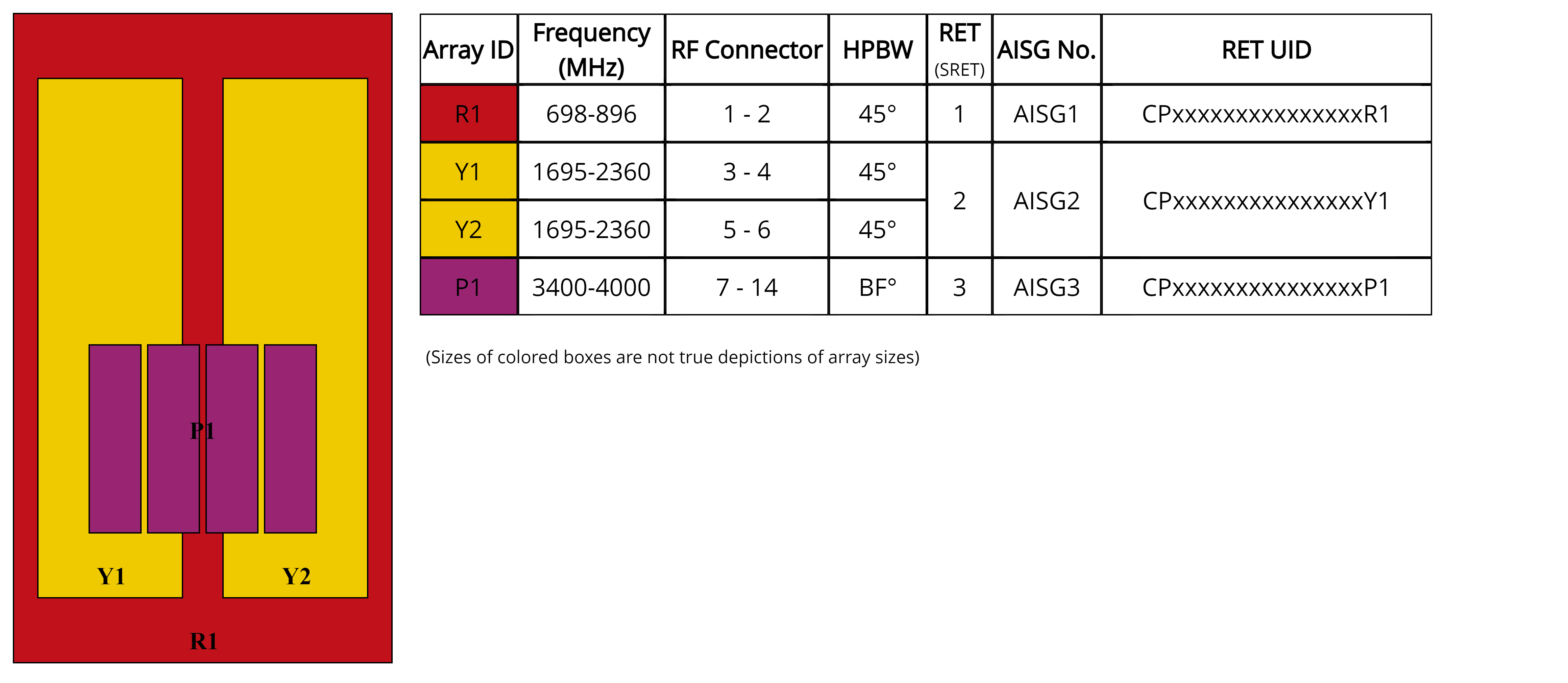

Array layout

Click on image to enlarge.

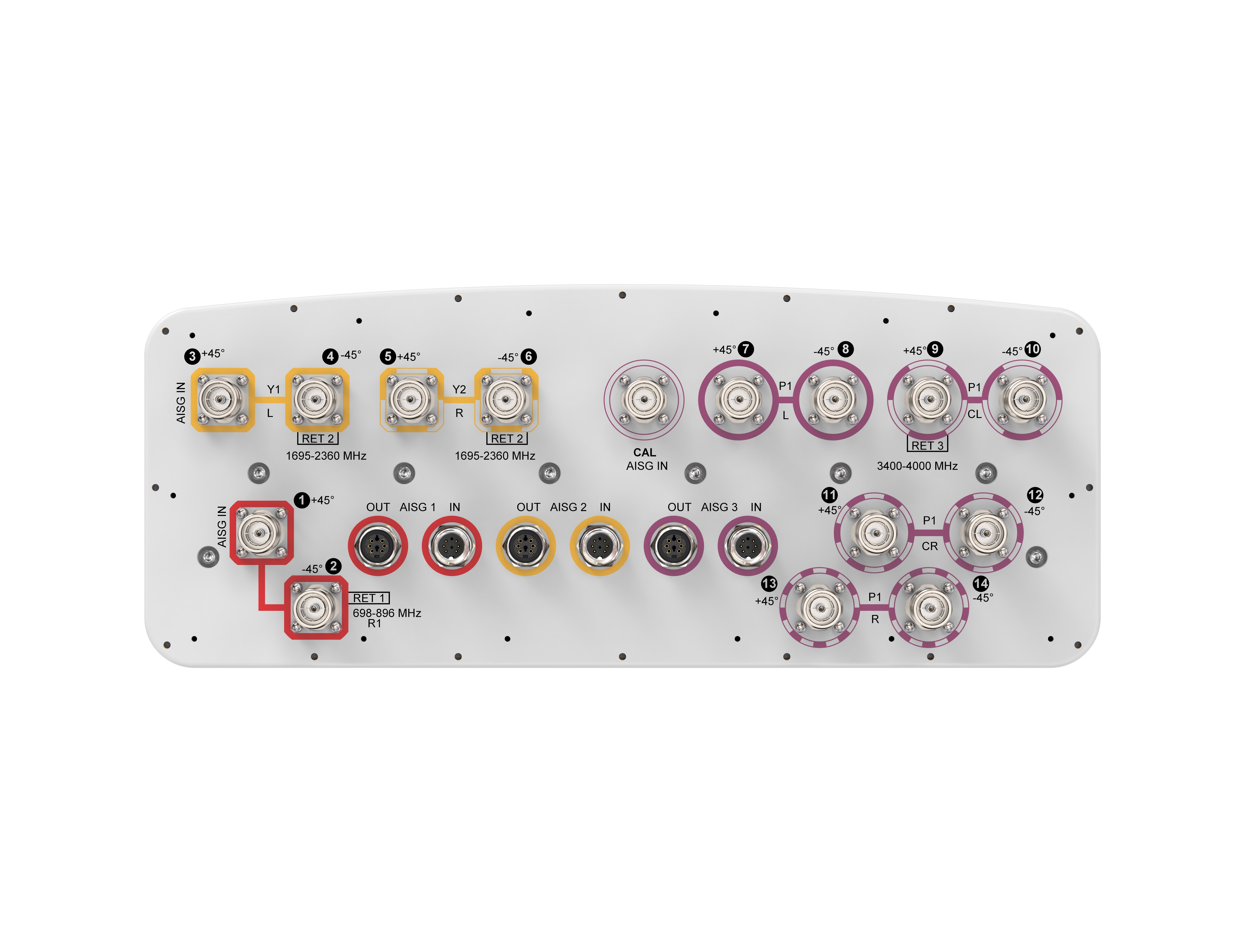

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz | 3400 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,040 W @ 50 °C

Electrical specifications

R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 P1 P1
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360 3400–3550 3700–4000
RF Port 1,2 1,2 3-6 3-6 3-6 3-6 7-14 7-14
Gain, dBi 18.0 18.6 19.2 19.7 20.1 20.5 15.7 15.9
Beamwidth, Horizontal, degrees 45 40 44 43 42 39 92 87
Beamwidth, Vertical, degrees 9.7 8.7 5.9 5.5 5.2 4.7 6.5 6.2
Beam Tilt, degrees 0–10 0–10 0–8 0–8 0–8 0–8 0–10 0–10
USLS (First Lobe), dB 20 16 21 22 23 26 19 16
Front-to-Back Ratio at 180°, dB 31 35 36 36 34 35 27 27
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 18 18 20 21 21 22 15 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 28 28 28 25 25
Isolation, Co-polarization, dB 19 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -145 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 250 50 50

Electrical specifications, broadcast 45

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360 3400–3550 3700–4000
Beamwidth, Vertical, degrees 6.6 6.3
Front-to-Back Total Power at 180° ± 30°, dB 25 25
USLS (First Lobe), dB 20 18

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360 3400–3550 3700–4000
Gain, dBi 17.8 18.7
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 6.6 6.3
Front-to-Back Total Power at 180° ± 30°, dB 24 26
USLS (First Lobe), dB 21 19

Electrical specifications, service beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360 3400–3550 3700–4000
Steered 0° Gain, dBi 20.8 21.2
Steered 0° Beamwidth, Horizontal, degrees 25 25
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29 29
Steered 0° Horizontal Sidelobe, dB 15 14
Steered 0° USLS (First Lobe), dB 23 21
Steered 30° Gain, dBi 19.7 20.7
Steered 30° Beamwidth, Horizontal, degrees 31 25
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26 27

Electrical specifications, soft split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360 3400–3550 3700–4000
Gain, dBi 20.1 20.6
Front-to-Back Total Power at 180° ± 30°, dB 27 28
Horizontal Sidelobe, dB 17
USLS (First Lobe), dB 23 21

Mechanical specifications

Wind Loading @ Velocity, frontal 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 526 mm | 20.709 in
Depth, packed 283 mm | 11.142 in
Length, packed 2604 mm | 102.520 in
Weight, gross 63.5 kg | 139.993 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant, Compliant/Exempted
