NHHSS-65B-R2BT8-V2
10-port sector antenna 2x 698-896, 4x 1695-2200 and 4x 3550-3700 MHz, 65° HPBW, 2x RETs and 2x SBTs.
Features and benefits
- Perfect antenna to add 3.5GHz CBRS to macro sites
- Low band and mid band performance mirrors the performance of existing NHH hex port antennas
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Internal SBT on low and mid band allow remote RET control from the radio over the RF jumper cable
- One LB RET and one MB RET, both Mid bands are controlled by one RET to ensure same tilt level for 4x MIMO
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 21 kg | 46.297 lb |

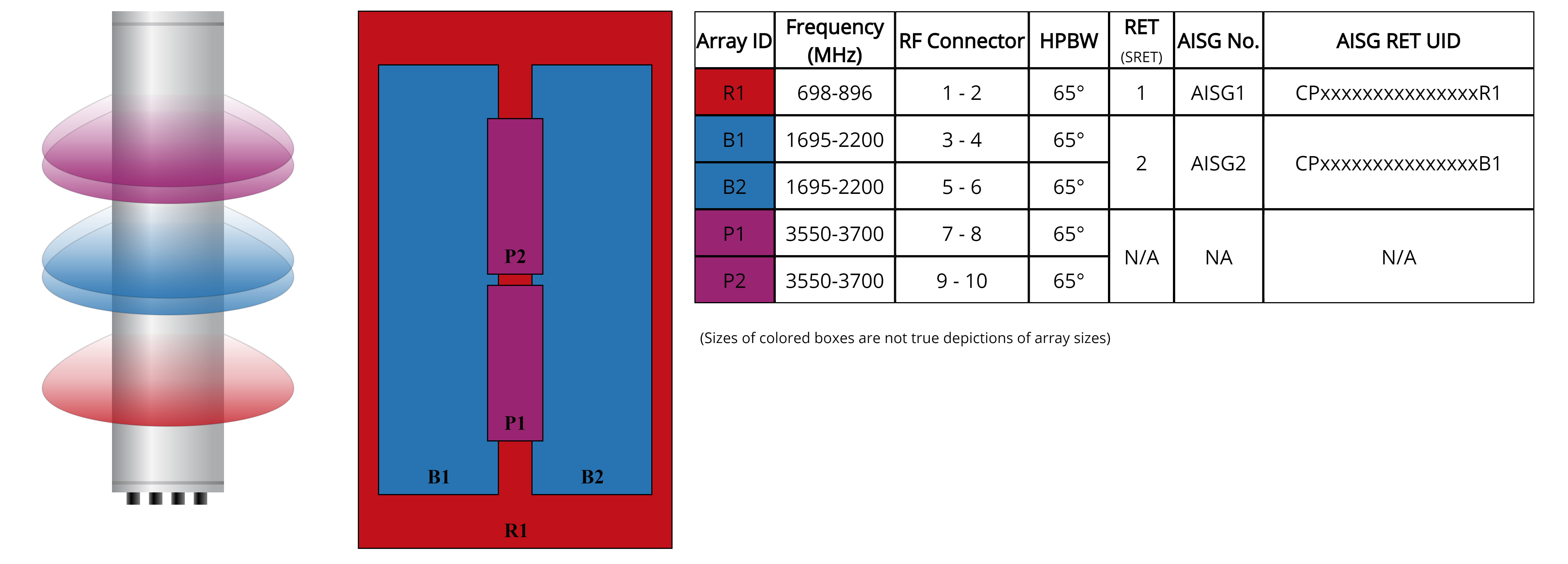

Array layout
| Click on image to enlarge. |

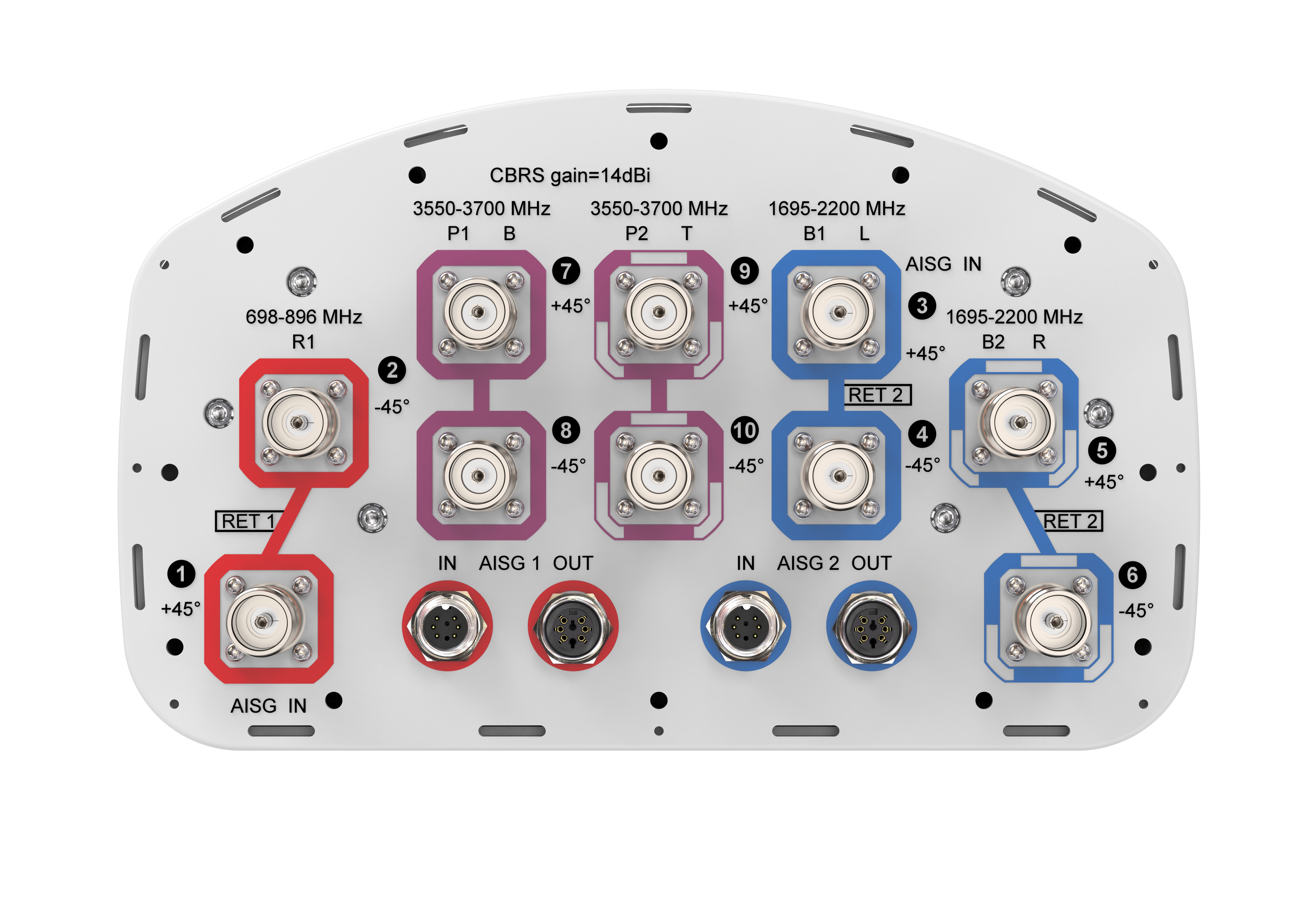

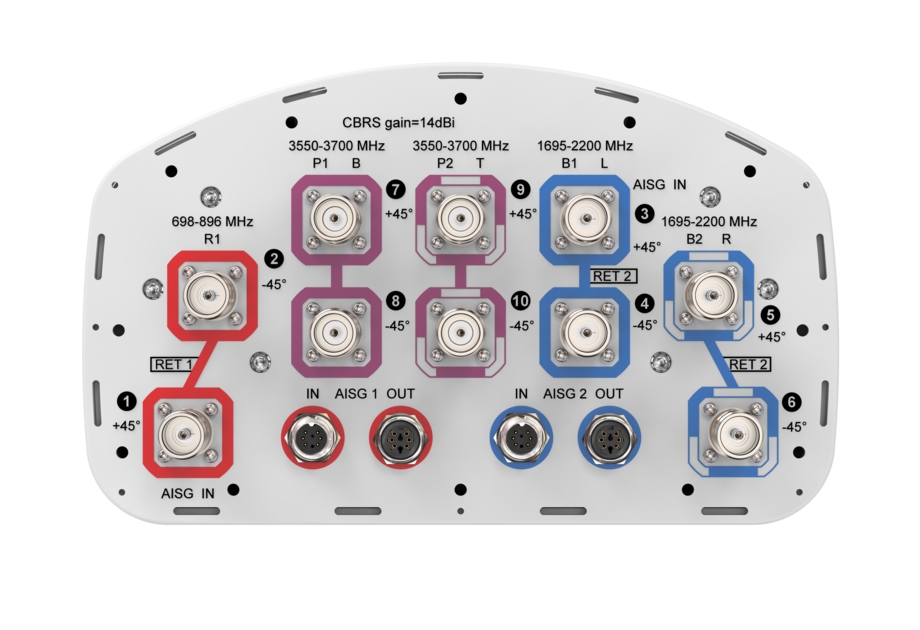

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz | 3550 – 3700 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W @ 50 °C |
Electrical specifications
| R1 | R1 | B1,B2 | B1,B2 | B1,B2 | P1,P2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 3550–3700 |
| RF Port | 1,2 | 1,2 | 3-6 | 3-6 | 3-6 | 7-10 |
| Gain, dBi | 14.7 | 14.8 | 17.4 | 17.7 | 17.7 | 13.0 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 66 | 62 | 66 | 57 |
| Beamwidth, Vertical, degrees | 13 | 11.4 | 5.5 | 5.2 | 4.8 | 18.3 |
| Beam Tilt, degrees | 0–14 | 0–14 | 0–7 | 0–7 | 0–7 | 8 |
| USLS (First Lobe), dB | 17 | 16 | 15 | 15 | 15 | 14 |
| Front-to-Back Ratio at 180°, dB | 28 | 27 | 28 | 27 | 25 | 26 |
| CPR at Boresight, dB | 22 | 17 | 15 | 18 | 22 | 15 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 278.0 N @ 150 km/h (62.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 230.0 N @ 150 km/h (51.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 537.0 N @ 150 km/h (120.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 282.0 N @ 150 km/h (63.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 1956 mm | 77.008 in |
| Weight, gross | 32.3 kg | 71.209 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 181 mm | 7.126 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 21 kg | 46.297 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz | 3550 – 3700 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W @ 50 °C |
Electrical specifications
| R1 | R1 | B1,B2 | B1,B2 | B1,B2 | P1,P2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 3550–3700 |
| RF Port | 1,2 | 1,2 | 3-6 | 3-6 | 3-6 | 7-10 |
| Gain, dBi | 14.7 | 14.8 | 17.4 | 17.7 | 17.7 | 13.0 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 66 | 62 | 66 | 57 |
| Beamwidth, Vertical, degrees | 13 | 11.4 | 5.5 | 5.2 | 4.8 | 18.3 |
| Beam Tilt, degrees | 0–14 | 0–14 | 0–7 | 0–7 | 0–7 | 8 |
| USLS (First Lobe), dB | 17 | 16 | 15 | 15 | 15 | 14 |
| Front-to-Back Ratio at 180°, dB | 28 | 27 | 28 | 27 | 25 | 26 |
| CPR at Boresight, dB | 22 | 17 | 15 | 18 | 22 | 15 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 278.0 N @ 150 km/h (62.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 230.0 N @ 150 km/h (51.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 537.0 N @ 150 km/h (120.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 282.0 N @ 150 km/h (63.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 1956 mm | 77.008 in |
| Weight, gross | 32.3 kg | 71.209 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
