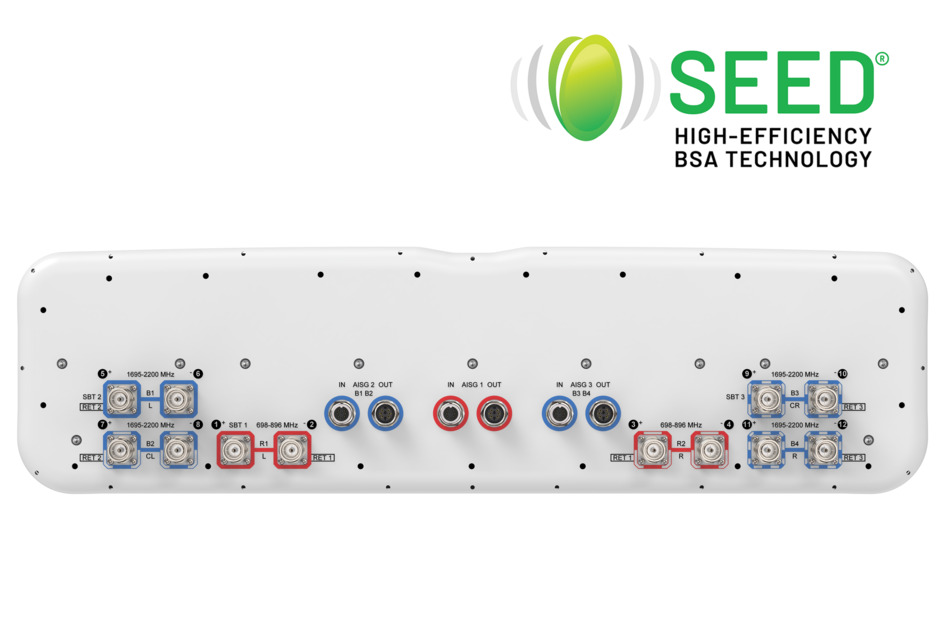

NNH4-45A-HG-R3B
12-port Next Generation PerforMax™ Superior coverage and capacity sector antenna, 4x 698-896 MHz and 8x 1695-2200 MHz, 45° HPBW, 4ft, 3X RET
Features and benefits
- Antenna optimized for higher gain with improved radiation efficiency
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Internal SBT on low and mid band allow remote RET control from the radio over the RF jumper cable
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Best in class PIM immunity
- Ideal 4T4R low band and 8T8R mid band antenna for use with an FD mMIMO antenna
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 | Port 9 |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 1030 mm | 40.551 in |
| Net Weight, without mounting kit | 33.5 kg | 73.855 lb |

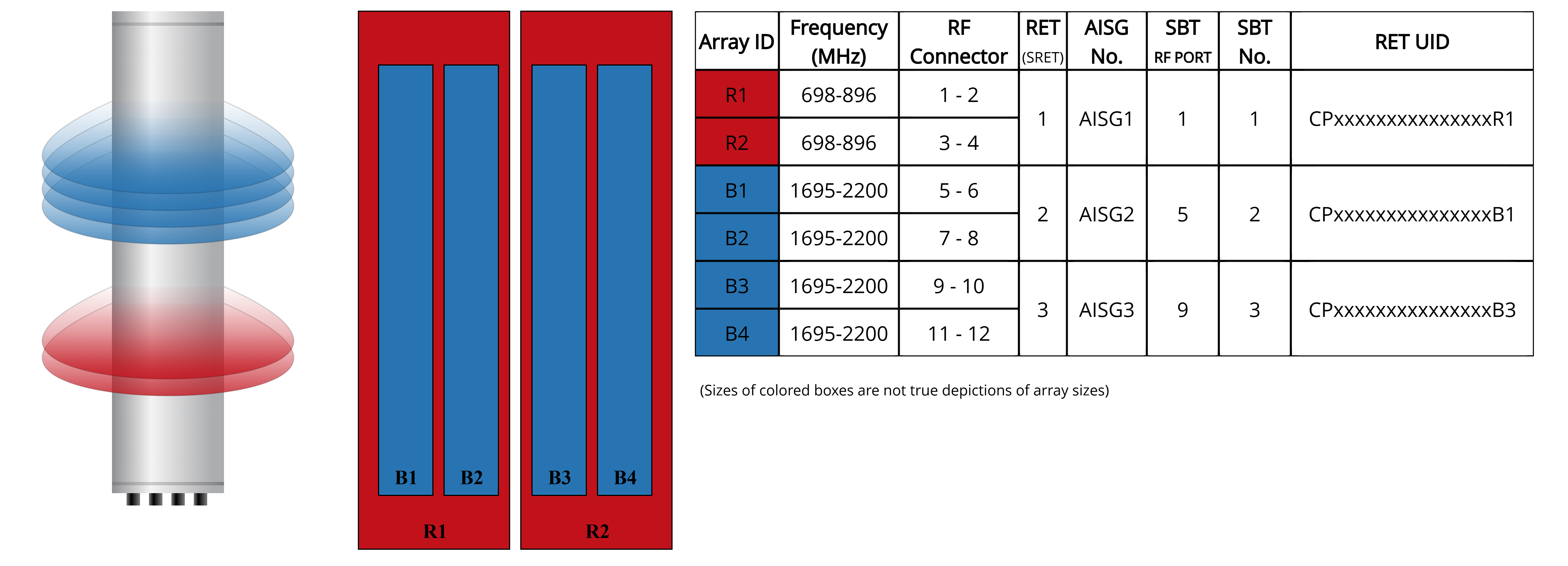

Array layout
| Click on image to enlarge. |

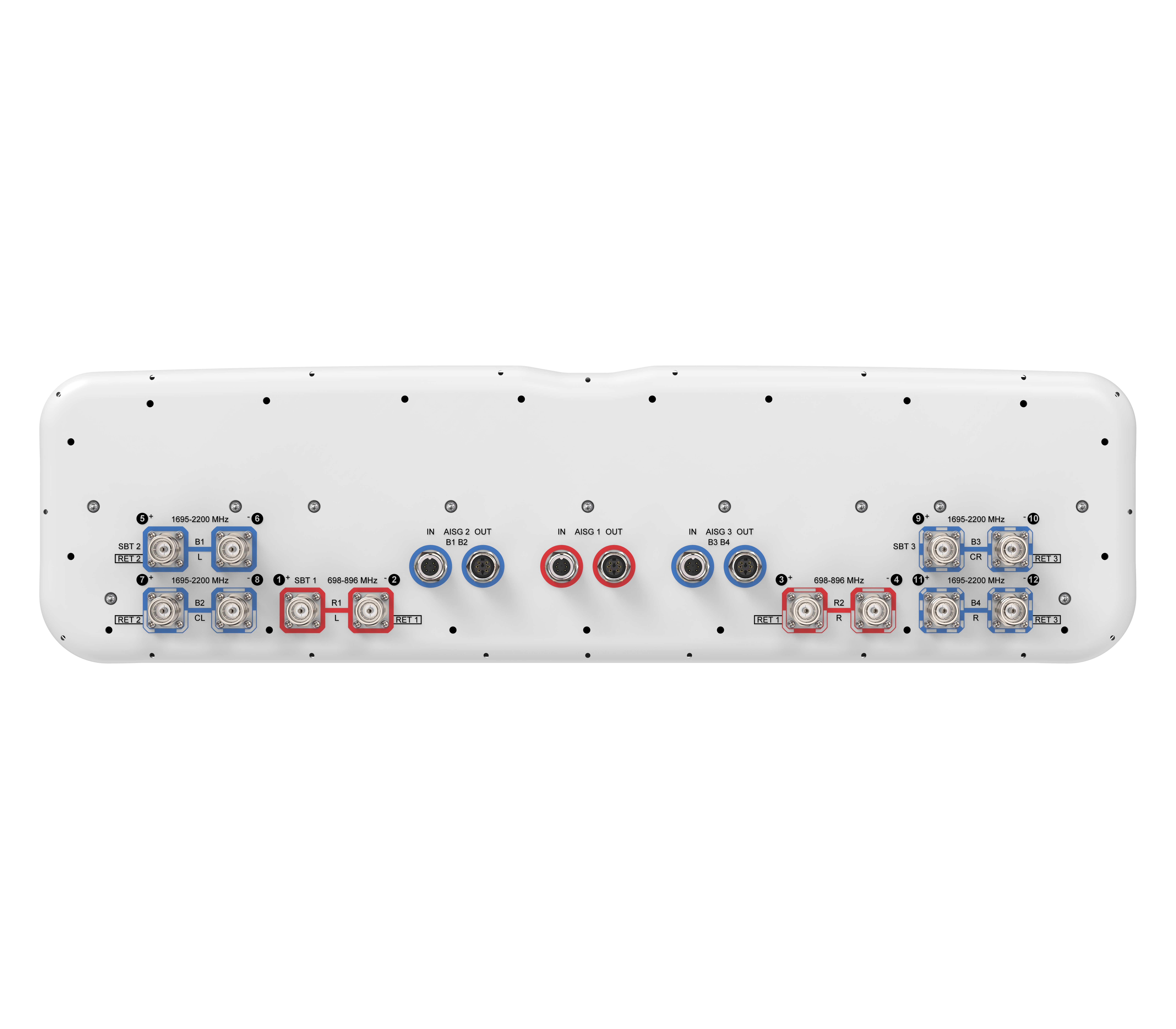

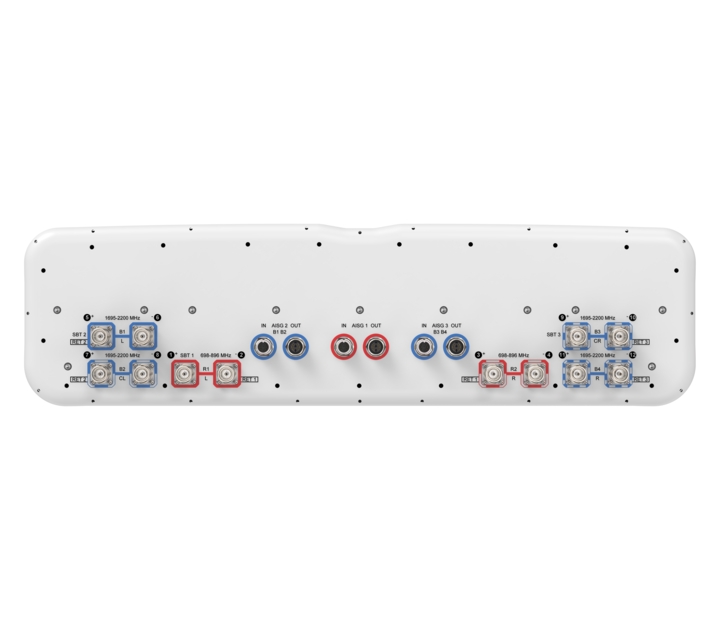

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1-R2 | R1-R2 | B1-B4 | B1-B4 | B1-B4 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 |
| Gain, Maximum, dBi | 14.300 | 14.600 | 18.100 | 18.600 | 19.300 |
| Gain, dBi | 13.9 | 14.3 | 17.4 | 18.0 | 18.6 |
| Beamwidth, Horizontal, degrees | 48 | 42 | 50 | 48 | 45 |
| Beamwidth, Vertical, degrees | 22.2 | 20.2 | 8.9 | 8.3 | 8 |
| Beam Tilt, degrees | 2–18 | 2–18 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 16 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 28 | 29 | 28 | 28 |
| CPR at Boresight, dB | 17 | 19 | 16 | 18 | 17 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 985.0 N @ 150 km/h (221.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 95.0 N @ 150 km/h (21.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 985.0 N @ 150 km/h (221.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 985.0 N @ 150 km/h (221.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 917 mm | 36.102 in |
| Depth, packed | 356 mm | 14.016 in |
| Length, packed | 1286 mm | 50.630 in |
| Weight, gross | 48.5 kg | 106.924 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 | Port 9 |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 1030 mm | 40.551 in |
| Net Weight, without mounting kit | 33.5 kg | 73.855 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1-R2 | R1-R2 | B1-B4 | B1-B4 | B1-B4 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 |
| Gain, Maximum, dBi | 14.300 | 14.600 | 18.100 | 18.600 | 19.300 |
| Gain, dBi | 13.9 | 14.3 | 17.4 | 18.0 | 18.6 |
| Beamwidth, Horizontal, degrees | 48 | 42 | 50 | 48 | 45 |
| Beamwidth, Vertical, degrees | 22.2 | 20.2 | 8.9 | 8.3 | 8 |
| Beam Tilt, degrees | 2–18 | 2–18 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 16 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 28 | 29 | 28 | 28 |
| CPR at Boresight, dB | 17 | 19 | 16 | 18 | 17 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 985.0 N @ 150 km/h (221.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 95.0 N @ 150 km/h (21.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 985.0 N @ 150 km/h (221.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 985.0 N @ 150 km/h (221.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 917 mm | 36.102 in |
| Depth, packed | 356 mm | 14.016 in |
| Length, packed | 1286 mm | 50.630 in |
| Weight, gross | 48.5 kg | 106.924 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
