NNH4S4-65D-R7

20-port sector antenna, 4x 698–896, 8x 1695–2360 MHz, 65° HPBW and 8x 3400-4000 MHz, 90° HPBW, 7x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Multi-band FDD antenna featuring C-Band 8T8R functionality
  • The C-band RET is factory set to AISG2. All other RET are assigned to AISG1
  • Feature the same dimensions as existing 8 and 12-port FDD capable antennas
  • New endcap designs provide improved wind loading performance

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 57 kg | 125.663 lb
TDD Column Spacing 41 mm | 1.614 in

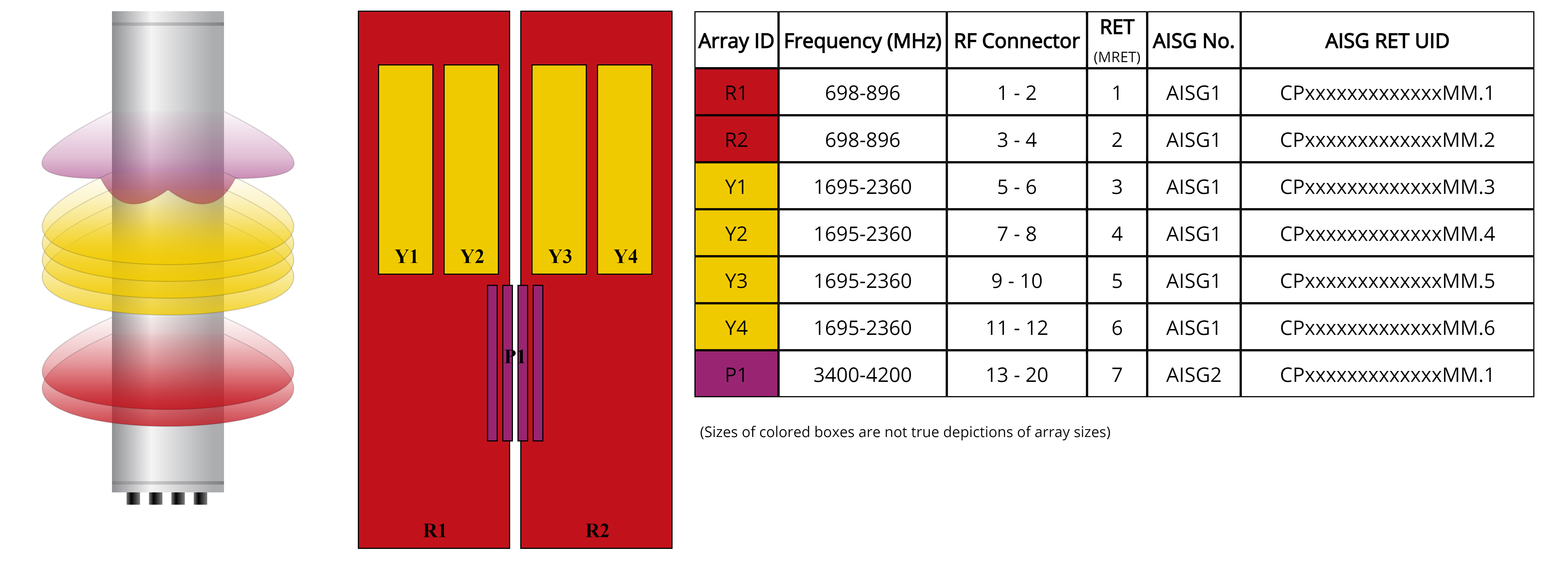

Array layout

Click on image to enlarge.

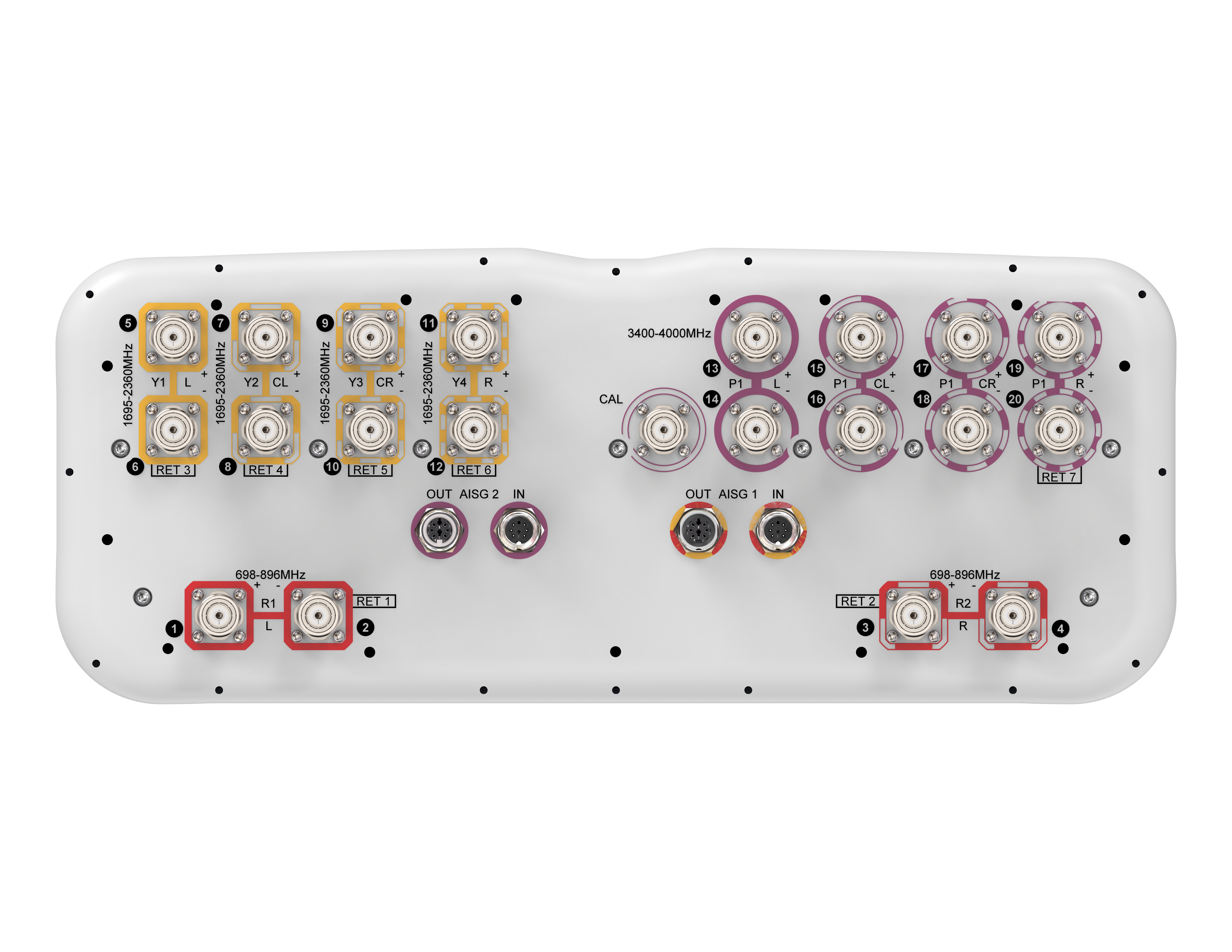

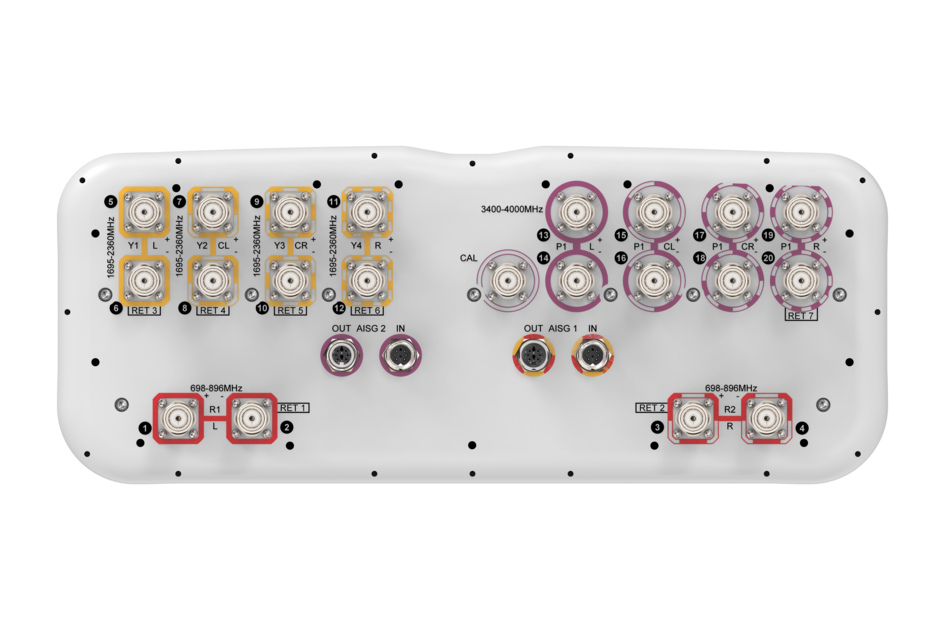

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz | 3400 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3800 3700–4000
Gain, dBi 15.8 16.5 16.4 17.2 17.8 18.0 16.4 16.6
Beamwidth, Horizontal, degrees 70 63 73 66 61 58 86 73
Beamwidth, Vertical, degrees 8.8 7.8 6.1 5.8 5.5 5 6.1 5.8
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 0–10 0–10
USLS (First Lobe), dB 16 16 16 17 17 17 15 15
Front-to-Back Ratio at 180°, dB 29 29 33 31 31 33 28 29
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 25 28 21 24 24 21 14 14
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 19 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -145 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 250 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3800 3700–4000
Gain, dBi 18.0 18.7
Beamwidth, Horizontal, degrees 73 65
Beamwidth, Vertical, degrees 6.1 5.8
Front-to-Back Total Power at 180° ± 30°, dB 24 25
USLS (First Lobe), dB 16 17

Electrical specifications, envelope pattern

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3800 3700–4000
Gain, dBi 21.0 21.2

Electrical specifications, service beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3800 3700–4000
Steered 0° Gain, dBi 20.8 21.1
Steered 0° Beamwidth, Horizontal, degrees 25 26
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 30
Steered 0° Horizontal Sidelobe, dB 14 14
Steered 0° USLS (First Lobe), dB 17 17
Steered 30° Gain, dBi 19.8 20.5
Steered 30° Beamwidth, Horizontal, degrees 30 25
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26 27

Electrical specifications, soft split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3800 3700–4000
Gain, dBi 19.8 20.2
Beamwidth, Horizontal, degrees 30 27
Front-to-Back Total Power at 180° ± 30°, dB 27 27
Horizontal Sidelobe, dB 15 15
USLS (First Lobe), dB 16 16

Mechanical specifications

Effective Projective Area (EPA), frontal 0.91 m² | 9.795 ft²
Effective Projective Area (EPA), lateral 0.29 m² | 3.122 ft²
Wind Loading @ Velocity, frontal 970.0 N @ 150 km/h (218.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 304.0 N @ 150 km/h (68.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,162.0 N @ 150 km/h (261.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2874 mm | 113.150 in
Weight, gross 78.9 kg | 173.945 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
