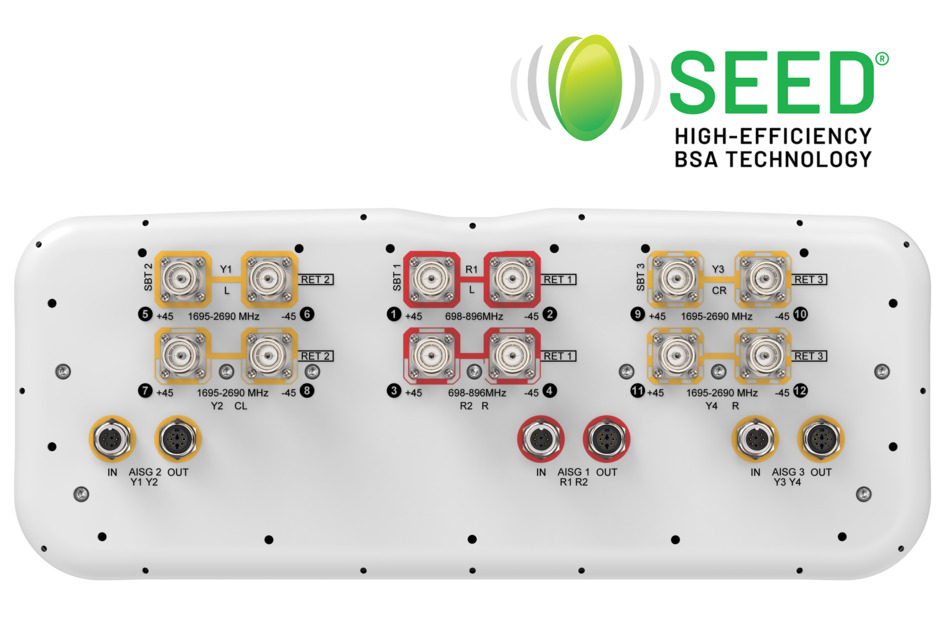

NNV4-65S-HG-R3B
12-port Next Generation PerforMax™ Superior Coverage and Capacity antenna, 4x 698-896 and 8x 1695–2690 MHz, 65° HPBW, 2 ft, 3x RET
Features and benefits
- Antenna optimized for higher gain with superior radiation efficiency
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Interleaved dipole technology results into an attractive, low wind load mechanical package
- Internal SBTs allow remote RET control from the radio over the RF jumper cable
- Best in class PIM immunity
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 | Port 9 |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 610 mm | 24.016 in |
| Net Weight, without mounting kit | 15.2 kg | 33.510 lb |
Array layout
| Click on image to enlarge. |

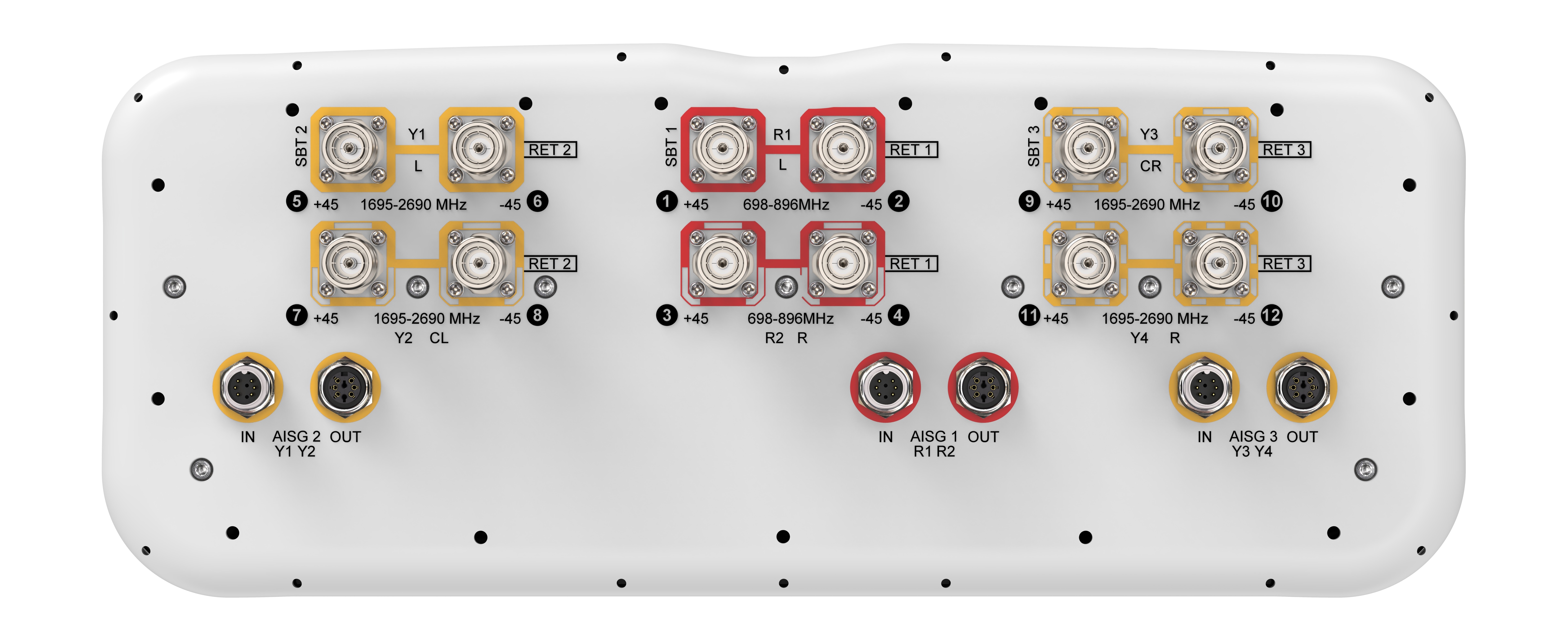

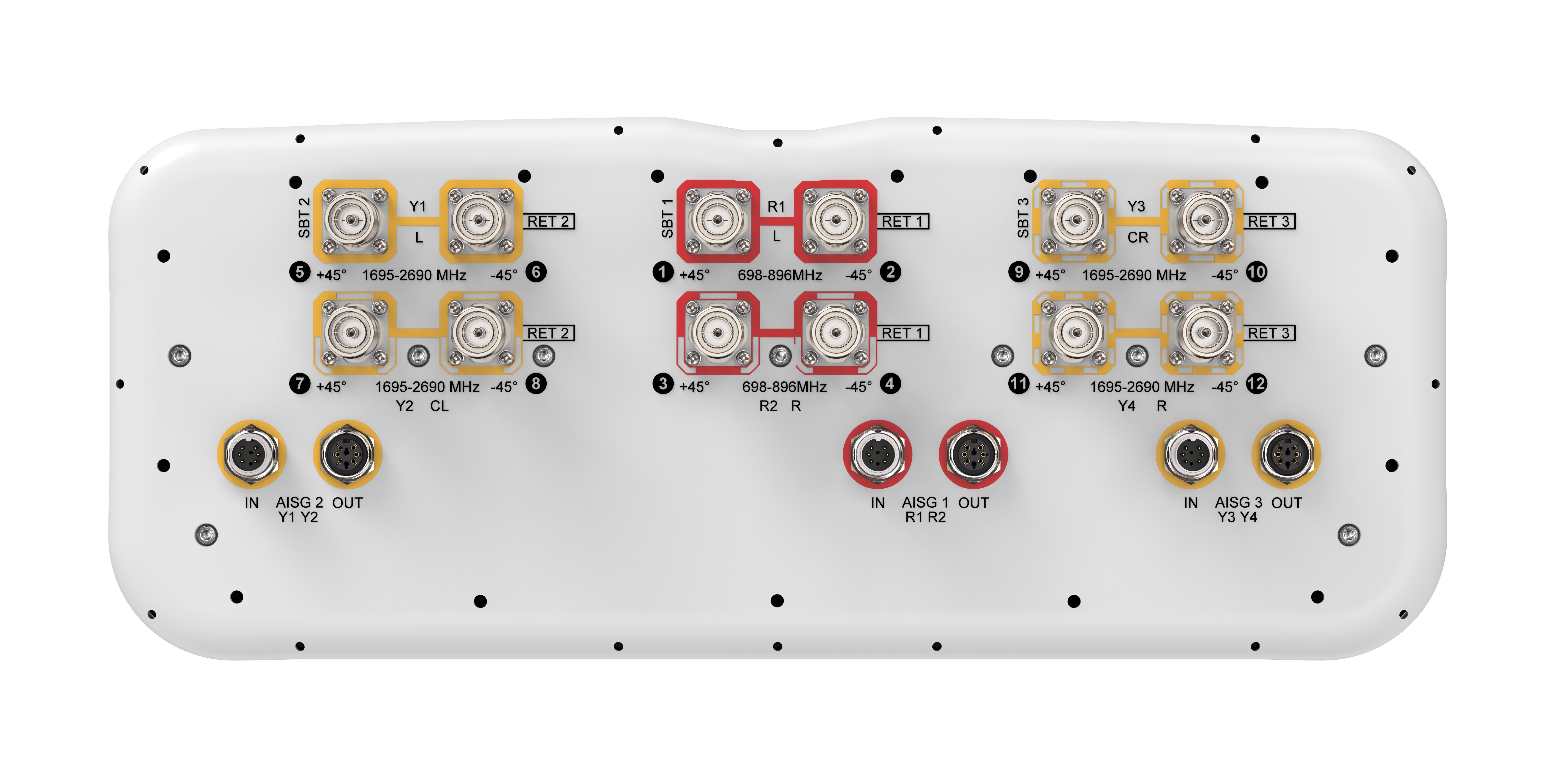

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–806 | 824–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2690 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Gain, Maximum, dBi | 10.600 | 10.800 | 14.400 | 14.900 | 15.600 | 15.900 |
| Gain, dBi | 10.0 | 10.0 | 13.4 | 14.0 | 14.5 | 15.1 |
| Beamwidth, Horizontal, degrees | 81 | 76 | 68 | 62 | 60 | 59 |
| Beamwidth, Vertical, degrees | 40 | 36 | 16 | 15 | 14 | 12 |
| Beam Tilt, degrees | 8-18 | 8-18 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 13 | 12 | 12 | 12 | 14 |
| Front-to-Back Ratio at 180°, dB | 29 | 25 | 29 | 30 | 30 | 29 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 18 | 18 | 21 | 23 | 23 | 22 |
| CPR at Boresight, dB | 24 | 20 | 15 | 16 | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 100 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 199.0 N @ 150 km/h (44.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 52.0 N @ 150 km/h (11.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 239.0 N @ 150 km/h (53.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 137.0 N @ 150 km/h (30.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 797 mm | 31.378 in |
| Weight, gross | 27.7 kg | 61.068 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 3 female | 3 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 | Port 9 |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 610 mm | 24.016 in |
| Net Weight, without mounting kit | 15.2 kg | 33.510 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–806 | 824–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2690 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Gain, Maximum, dBi | 10.600 | 10.800 | 14.400 | 14.900 | 15.600 | 15.900 |
| Gain, dBi | 10.0 | 10.0 | 13.4 | 14.0 | 14.5 | 15.1 |
| Beamwidth, Horizontal, degrees | 81 | 76 | 68 | 62 | 60 | 59 |
| Beamwidth, Vertical, degrees | 40 | 36 | 16 | 15 | 14 | 12 |
| Beam Tilt, degrees | 8-18 | 8-18 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 13 | 12 | 12 | 12 | 14 |
| Front-to-Back Ratio at 180°, dB | 29 | 25 | 29 | 30 | 30 | 29 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 18 | 18 | 21 | 23 | 23 | 22 |
| CPR at Boresight, dB | 24 | 20 | 15 | 16 | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 100 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 199.0 N @ 150 km/h (44.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 52.0 N @ 150 km/h (11.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 239.0 N @ 150 km/h (53.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 137.0 N @ 150 km/h (30.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 797 mm | 31.378 in |
| Weight, gross | 27.7 kg | 61.068 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
