NVVS4-65A-R3B

14 Port Sector Antenna, 2x698-896 MHz, 4x1695-2690 MHz 65° HPBW, and 8x3700-4000 MHz Beamformer, 3XRET and 3x SBTs

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • One Low Band RET, One Mid Band RET and One High Band RET. Each RET controlled individually through internal SBTs

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal Bias Tee Cal Port | Port 1 | Port 3
Internal RET High band (1) | Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 1413 mm | 55.630 in
Net Weight, without mounting kit 23 kg | 50.706 lb

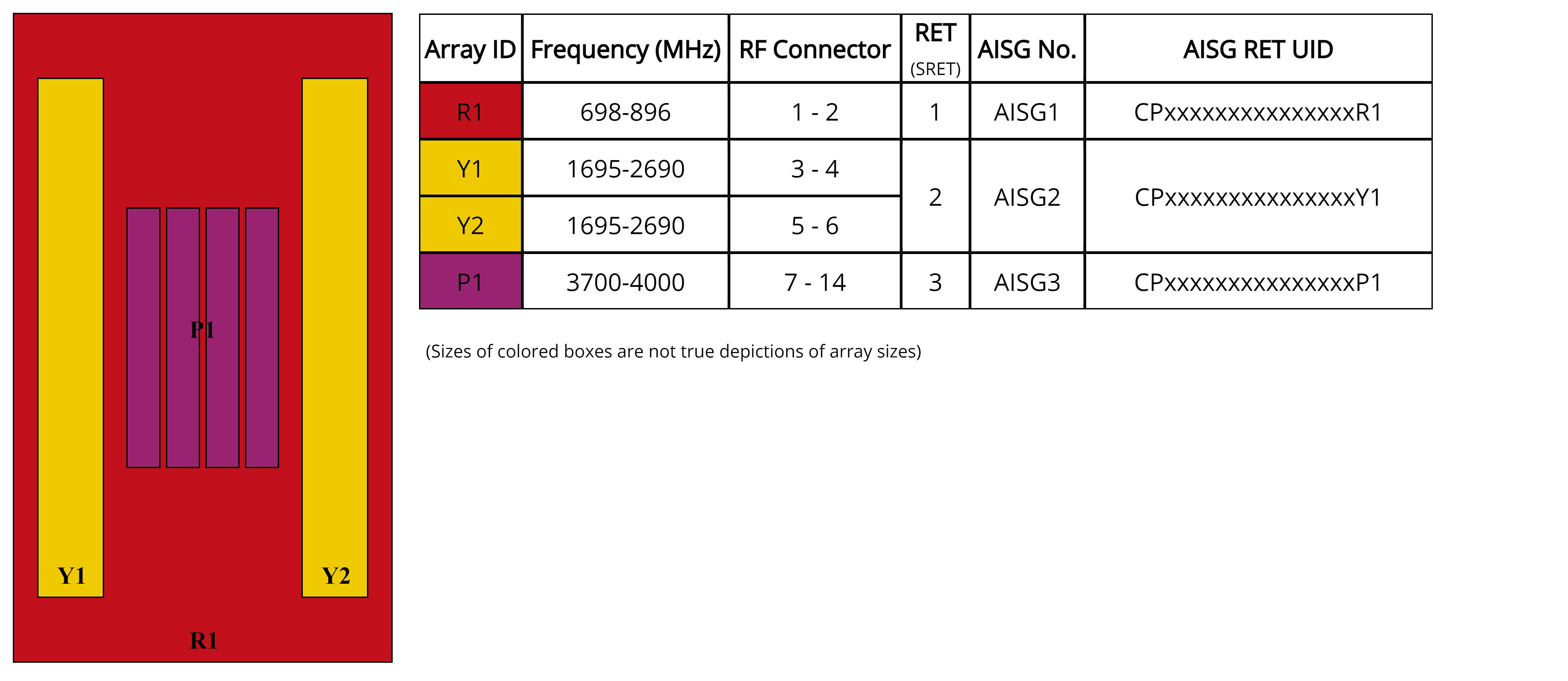

Array layout

Click on image to enlarge.

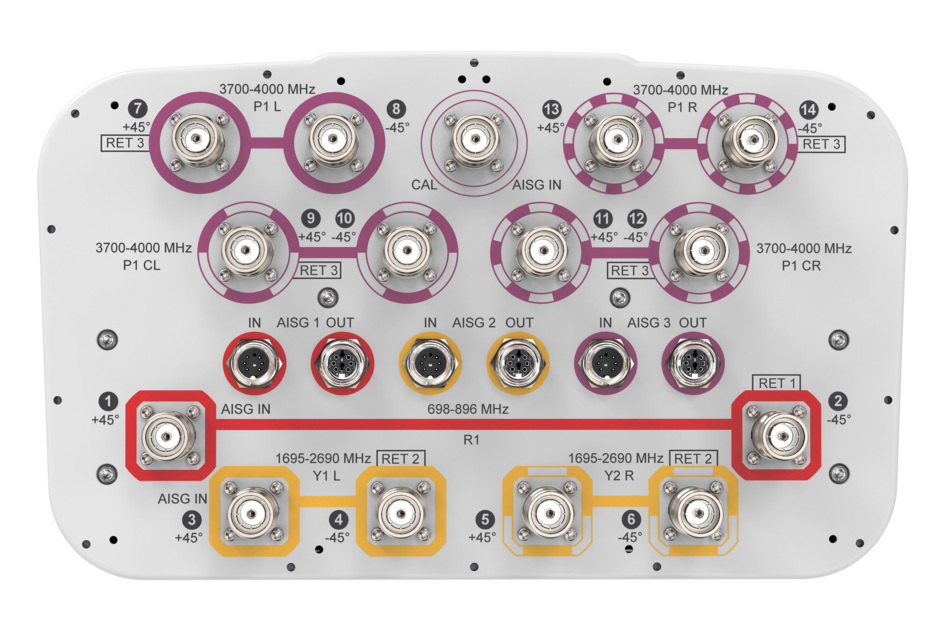

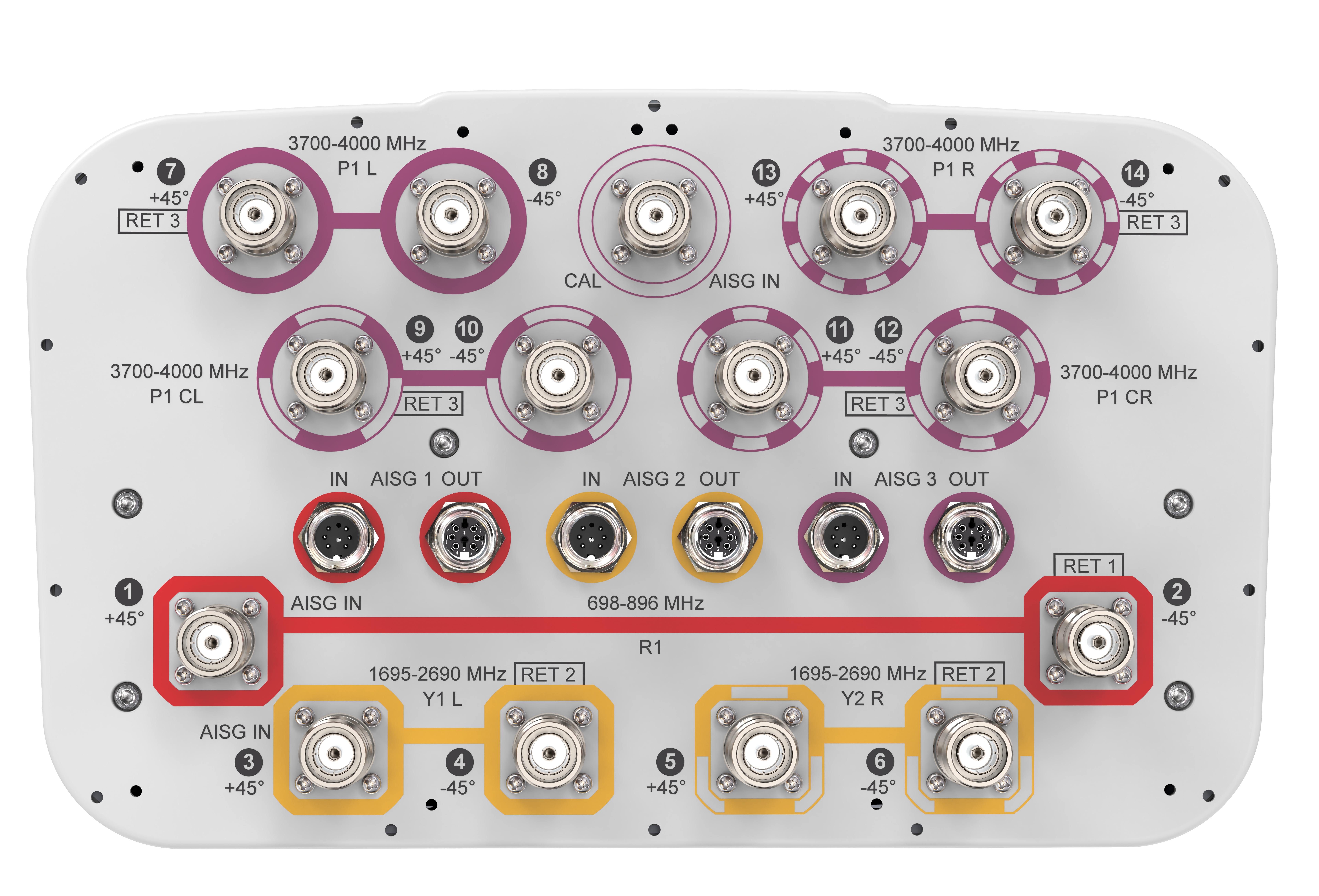

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2690 MHz | 3700 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Gain, dBi 14.0 14.2 16.6 16.7 16.8 17.1 17.2 16.2
Beamwidth, Horizontal, degrees 69 67 67 66 69 69 67 83
Beamwidth, Vertical, degrees 16.9 15.2 6.7 6.2 5.8 5.4 5.1 5.8
Beam Tilt, degrees 0–18 0–18 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 20 19 15 16 17 20 22 14
Front-to-Back Ratio at 180°, dB 39 36 31 36 35 33 34 30
Coupling level, Amp, Antenna port to Cal port, dB 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 14
CPR at Boresight, dB 23 24 19 23 25 24 21 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -150 -150 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 200 200 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Gain, dBi 17.2
Beamwidth, Horizontal, degrees 65
Beamwidth, Vertical, degrees 6.0
Beamwidth, Vertical Tolerance, degrees ±0.3
Front-to-Back Total Power at 180° ± 30°, dB 25
USLS (First Lobe), dB 17

Electrical specifications, service beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Steered 0° Gain, dBi 20.8
Steered 0° Gain Tolerance, dBi ±0.8
Steered 0° Beamwidth, Horizontal, degrees 22
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29
Steered 0° Horizontal Sidelobe, dB 11
Steered 30° Gain, dBi 19.9
Steered 30° Beamwidth, Horizontal, degrees 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 27

Electrical specifications, soft split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Gain, dBi 19.2
Beamwidth, Horizontal, degrees 33
Front-to-Back Total Power at 180° ± 30°, dB 26
Horizontal Sidelobe, dB 15

Mechanical specifications

Wind Loading @ Velocity, frontal 224.0 N @ 150 km/h (50.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 187.0 N @ 150 km/h (42.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 474.0 N @ 150 km/h (106.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 237.0 N @ 150 km/h (53.3 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 448 mm | 17.638 in
Depth, packed 355 mm | 13.976 in
Length, packed 1557 mm | 61.299 in
Weight, gross 33.4 kg | 73.634 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal Bias Tee Cal Port | Port 1 | Port 3
Internal RET High band (1) | Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 1413 mm | 55.630 in
Net Weight, without mounting kit 23 kg | 50.706 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2690 MHz | 3700 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Gain, dBi 14.0 14.2 16.6 16.7 16.8 17.1 17.2 16.2
Beamwidth, Horizontal, degrees 69 67 67 66 69 69 67 83
Beamwidth, Vertical, degrees 16.9 15.2 6.7 6.2 5.8 5.4 5.1 5.8
Beam Tilt, degrees 0–18 0–18 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 20 19 15 16 17 20 22 14
Front-to-Back Ratio at 180°, dB 39 36 31 36 35 33 34 30
Coupling level, Amp, Antenna port to Cal port, dB 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 14
CPR at Boresight, dB 23 24 19 23 25 24 21 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -150 -150 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 200 200 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Gain, dBi 17.2
Beamwidth, Horizontal, degrees 65
Beamwidth, Vertical, degrees 6.0
Beamwidth, Vertical Tolerance, degrees ±0.3
Front-to-Back Total Power at 180° ± 30°, dB 25
USLS (First Lobe), dB 17

Electrical specifications, service beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Steered 0° Gain, dBi 20.8
Steered 0° Gain Tolerance, dBi ±0.8
Steered 0° Beamwidth, Horizontal, degrees 22
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29
Steered 0° Horizontal Sidelobe, dB 11
Steered 30° Gain, dBi 19.9
Steered 30° Beamwidth, Horizontal, degrees 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 27

Electrical specifications, soft split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2500 2500–2690 3700–4000
Gain, dBi 19.2
Beamwidth, Horizontal, degrees 33
Front-to-Back Total Power at 180° ± 30°, dB 26
Horizontal Sidelobe, dB 15

Mechanical specifications

Wind Loading @ Velocity, frontal 224.0 N @ 150 km/h (50.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 187.0 N @ 150 km/h (42.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 474.0 N @ 150 km/h (106.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 237.0 N @ 150 km/h (53.3 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 448 mm | 17.638 in
Depth, packed 355 mm | 13.976 in
Length, packed 1557 mm | 61.299 in
Weight, gross 33.4 kg | 73.634 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
