RRV4-65B-R6H4-V6
12-port sector antenna, 4x 698-960 and 8x 1710- 2690 MHz, 65° HPBW, 6x RET
Features and benefits
- Antenna with tilt scale indicators and integrated pluggable RET
- All Internal RET actuators are connected in "Cascaded SRET" configuration
- Array configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High band
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Internal RET | Low band (2) | Mid band (4) |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 469 mm | 18.465 in |
| Depth | 198 mm | 7.795 in |
| Length | 1950 mm | 76.772 in |
| Net Weight, without mounting kit | 25.4 kg | 55.997 lb |

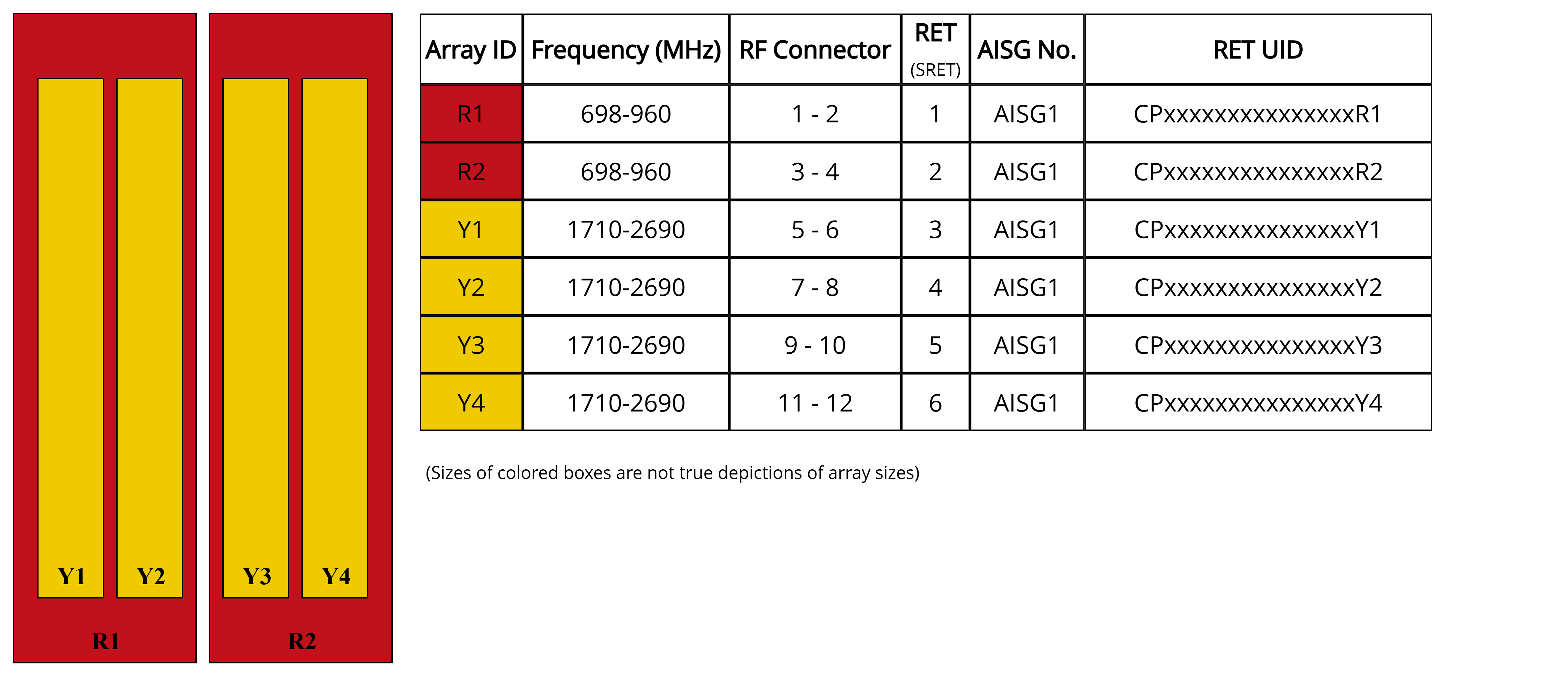

Array layout
| Click on image to enlarge. |

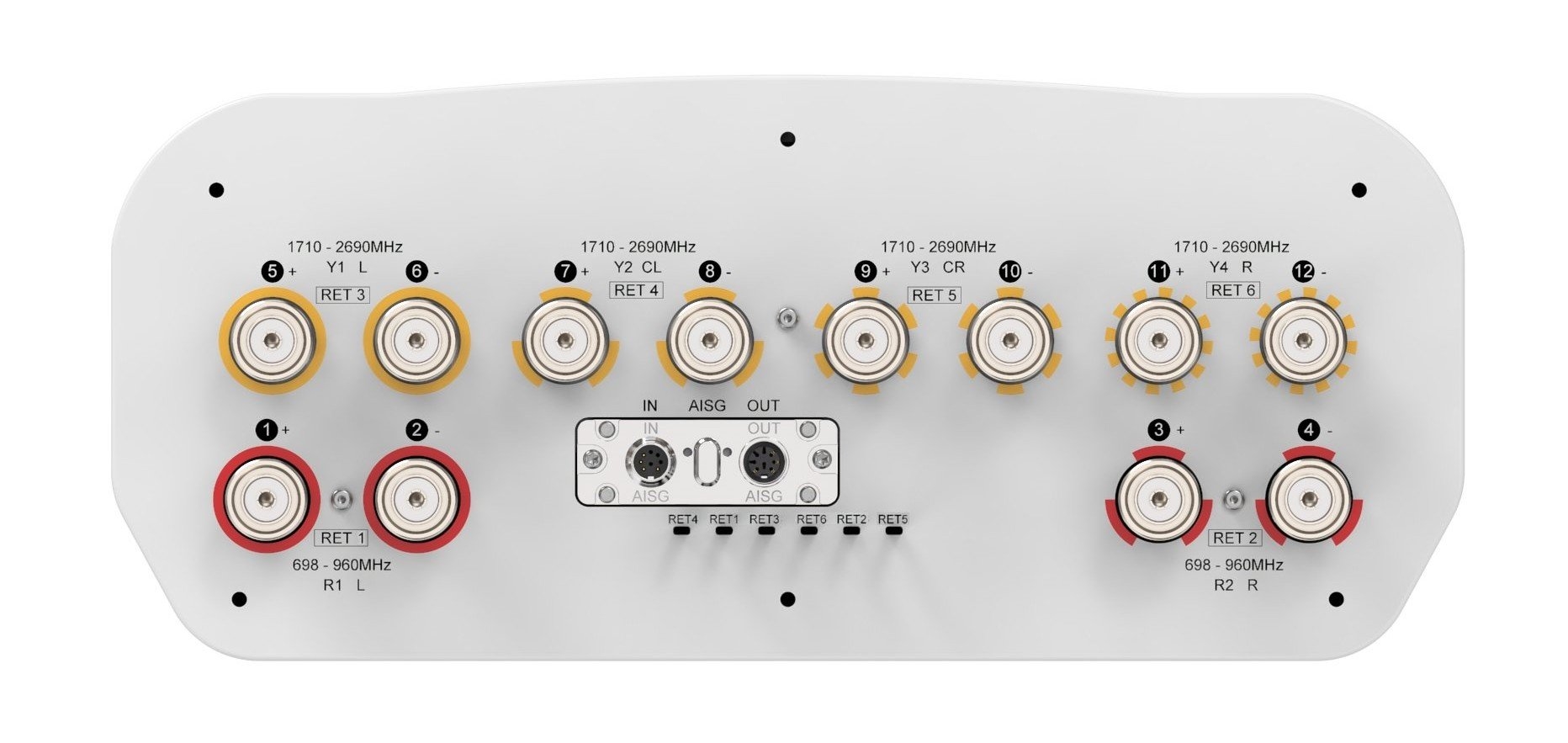

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1880 | 1920–2170 | 2300–2400 | 2490–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Beamwidth, Horizontal, degrees | 65 | 63 | 62 | 67 | 63 | 62 | 59 |
| Beamwidth, Vertical, degrees | 10.8 | 9.6 | 8.9 | 6.8 | 6 | 5.1 | 4.4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 23 | 23 | 23 | 24 | 24 | 24 | 25 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 521.0 N @ 150 km/h (117.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 278.0 N @ 150 km/h (62.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 554.0 N @ 150 km/h (124.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Internal RET | Low band (2) | Mid band (4) |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 469 mm | 18.465 in |
| Depth | 198 mm | 7.795 in |
| Length | 1950 mm | 76.772 in |
| Net Weight, without mounting kit | 25.4 kg | 55.997 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1880 | 1920–2170 | 2300–2400 | 2490–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Beamwidth, Horizontal, degrees | 65 | 63 | 62 | 67 | 63 | 62 | 59 |
| Beamwidth, Vertical, degrees | 10.8 | 9.6 | 8.9 | 6.8 | 6 | 5.1 | 4.4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 23 | 23 | 23 | 24 | 24 | 24 | 25 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 521.0 N @ 150 km/h (117.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 278.0 N @ 150 km/h (62.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 554.0 N @ 150 km/h (124.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
