RRVV-65D-R6D

8-port sector antenna, 4x 694–960, 4x 1695–2180/ 2490–2690 MHz, 65° HPBW , 6x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

All Internal RET actuators are connected in “Cascaded SRET” configuration
Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
Utilize new aerodynamic endcap for wind load optimization

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal Bias Tee	Port 1 \| Port 5
Internal RET	High band (4) \| Low band (2)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

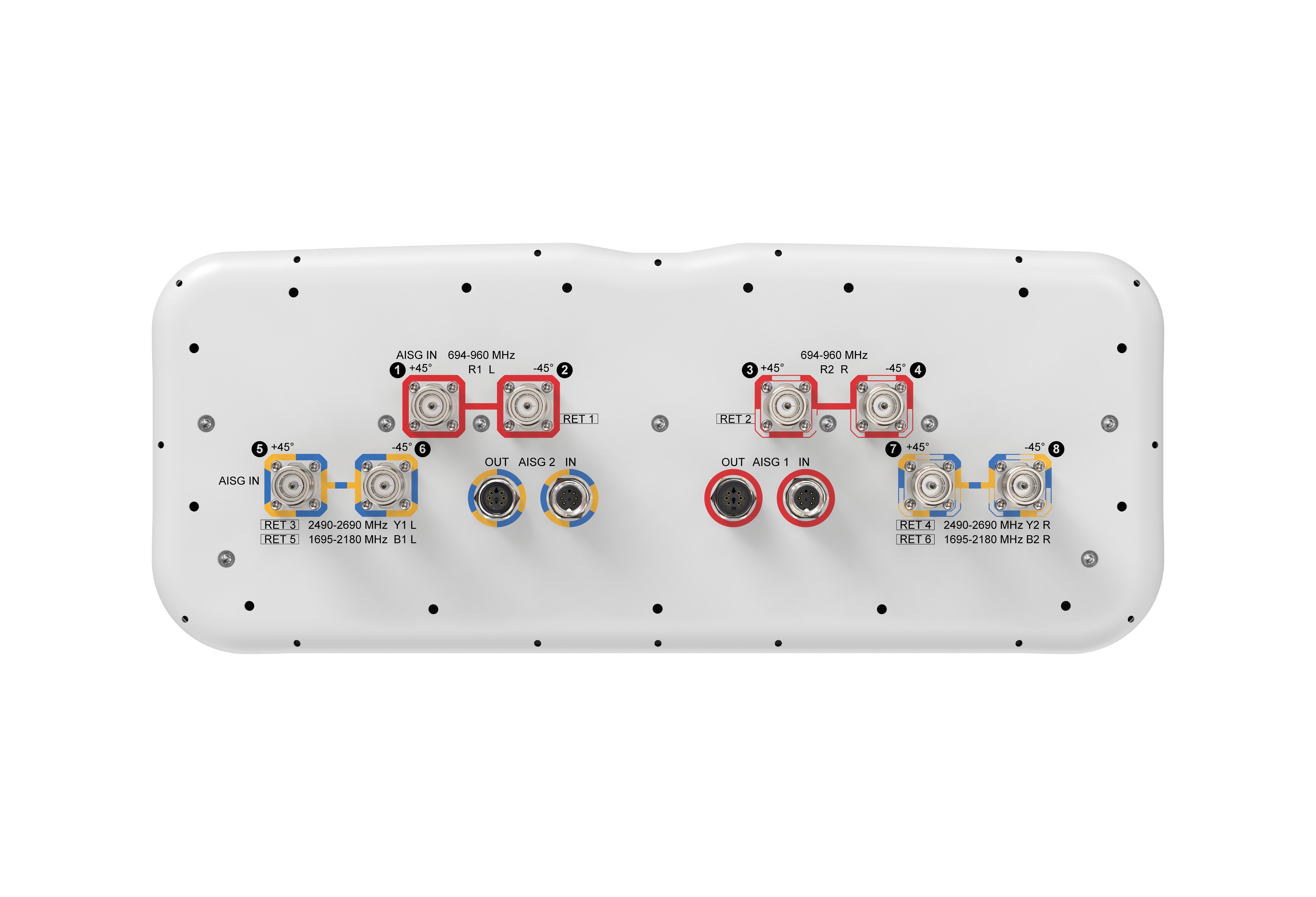

Click on image to enlarge.

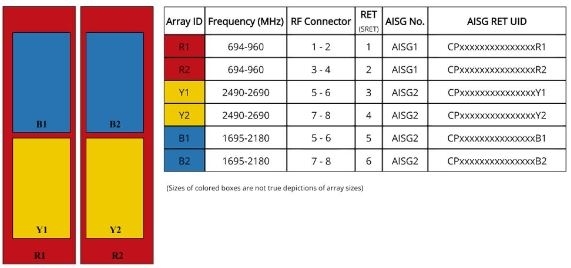

Click on image to enlarge.

	R1,R2	R1,R2	R1,R2	Y1,Y2,B1,B2	Y1,Y2,B1,B2	Y1,Y2,B1,B2
Frequency Band, MHz	694–790	790–890	880–960	1695–1920	1920–2180	2490–2690
RF Port	1,2,3,4	1,2,3,4	1,2,3,4	5,6,7,8	5,6,7,8	5,6,7,8
Gain, dBi	15.7	16.1	16.6	16.5	16.6	16.4
Beamwidth, Horizontal, degrees	77	67	68	58	62	68
Beamwidth, Vertical, degrees	7.4	6.6	6.2	6.8	6.1	5.1
Beam Tilt, degrees	1–11	1–11	1–11	0–10	0–10	0–10
USLS (First Lobe), dB	16	16	20	18	18	17
Front-to-Back Ratio at 180°, dB	29	30	32	34	34	25
CPR at Boresight, dB	21	22	24	19	20	23
Isolation, Cross Polarization, dB	26	26	26	26	26	26
Isolation, Inter-band, dB	28	28	28	28	28	28
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	200

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal Bias Tee	Port 1 \| Port 5
Internal RET	High band (4) \| Low band (2)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0

	R1,R2	R1,R2	R1,R2	Y1,Y2,B1,B2	Y1,Y2,B1,B2	Y1,Y2,B1,B2
Frequency Band, MHz	694–790	790–890	880–960	1695–1920	1920–2180	2490–2690
RF Port	1,2,3,4	1,2,3,4	1,2,3,4	5,6,7,8	5,6,7,8	5,6,7,8
Gain, dBi	15.7	16.1	16.6	16.5	16.6	16.4
Beamwidth, Horizontal, degrees	77	67	68	58	62	68
Beamwidth, Vertical, degrees	7.4	6.6	6.2	6.8	6.1	5.1
Beam Tilt, degrees	1–11	1–11	1–11	0–10	0–10	0–10
USLS (First Lobe), dB	16	16	20	18	18	17
Front-to-Back Ratio at 180°, dB	29	30	32	34	34	25
CPR at Boresight, dB	21	22	24	19	20	23
Isolation, Cross Polarization, dB	26	26	26	26	26	26
Isolation, Inter-band, dB	28	28	28	28	28	28
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	200
