RRZZT4S4-65B-R6V4
24-port sector antenna, 4x 694–960 and 4x 1427-2690 MHz 65° HPBW, 8x 2300–2690 and 8x 3300-3800MHz, 90° HPBW, 6x RET with MQ4 /MQ5 cluster connectors.
Features and benefits
- Antenna includes 2x Single Column X-Pol Arrays for 694-960MHz and 2x Single Column X-Pol Arrays for 1427-2690MHz, suitable for 4x MIMO applications
- Also includes 1x 4-Column Array for 2300-2690 MHz and a separate 1x 4-Column Array for 3300-3800MHz. Column spacing optimized to support Soft Split Beamforming
- A calibration port is provided for each 4-Column Array. Six Internal RET’s provide independent electrical tilt control for each array
- Antenna shape optimized for wind load reduction
- 2x MQ4 and 2x MQ5 cluster connectors (comprising 16 RF ports + 2 calibration ports in total) are provided for the beam-forming arrays
Specifications
General specifications
| Antenna Type | Sector and beamforming |
| Band | Multiband |
| Calibration Connector Interface | MQ5 |
| Calibration Connector Quantity | 2 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female | MQ4 | MQ5 |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 24 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) | Low band (2) | Mid band (3) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2100 mm | 82.677 in |
| Net Weight, antenna only | 46.5 kg | 102.515 lb |

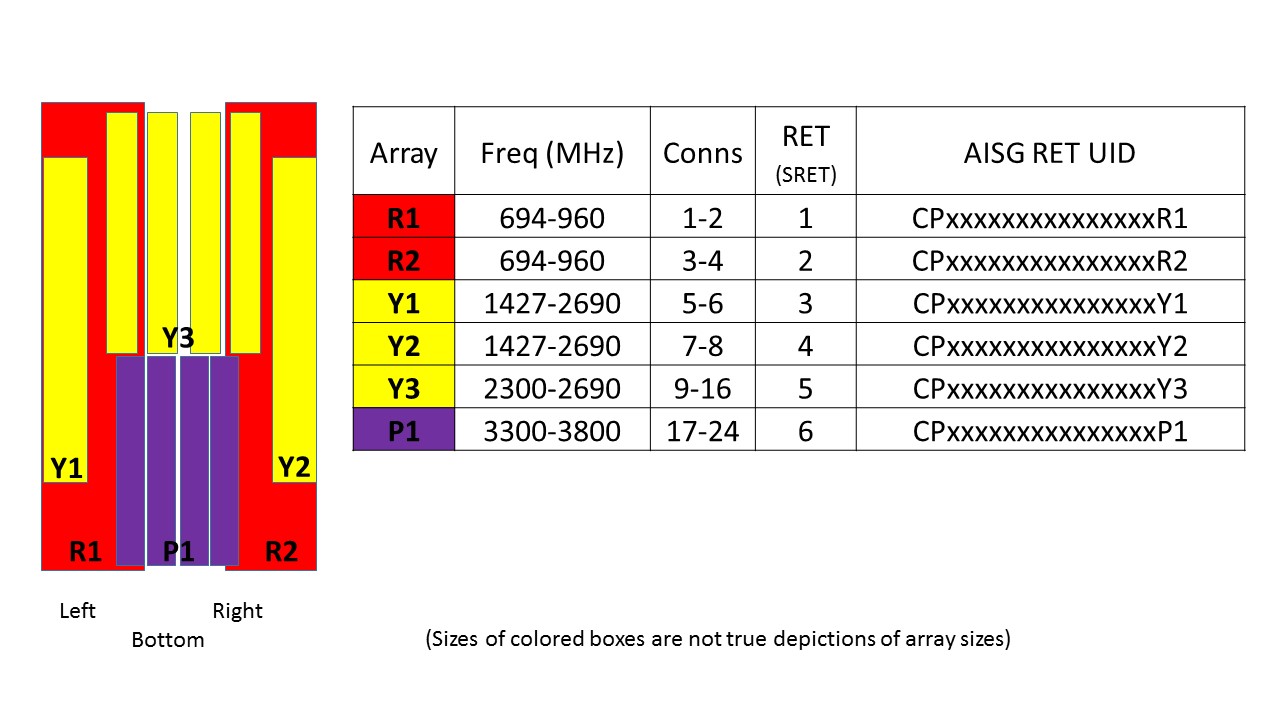

Array layout
| Click on image to enlarge. |

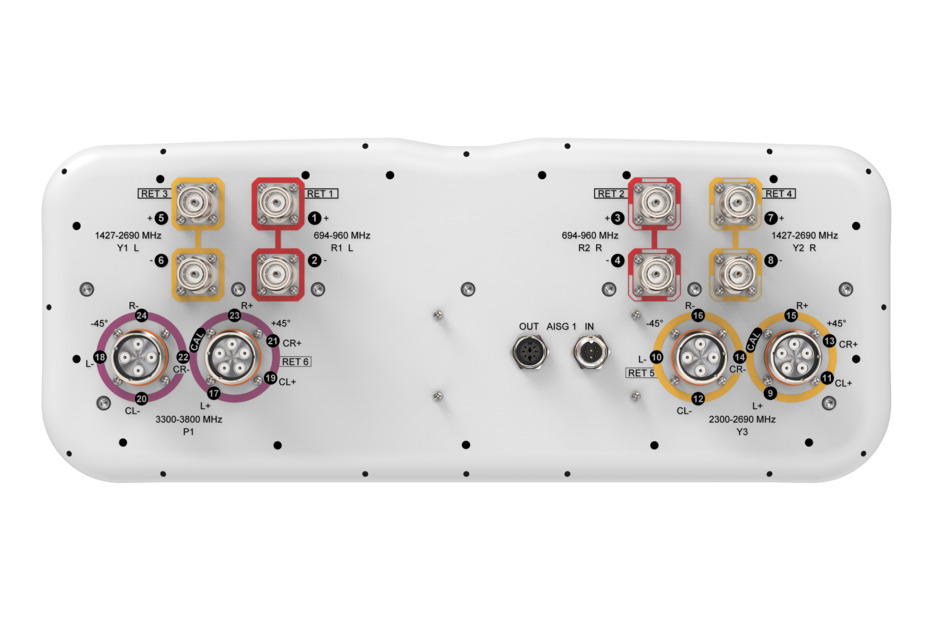

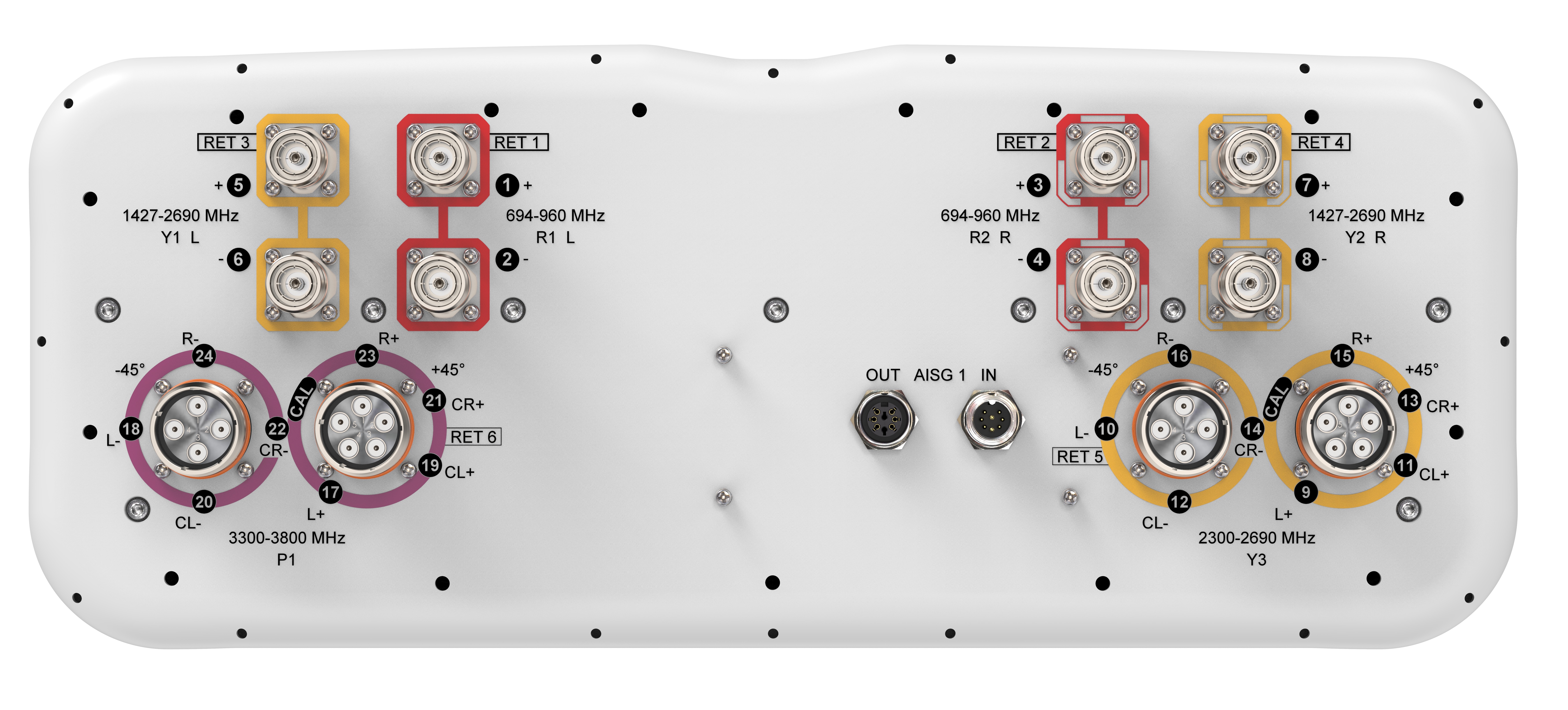

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 2300 – 2690 MHz | 3300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 15.1 | 15.4 | 15.6 | 16.0 | 17.8 | 18.3 | 15.3 | 15.9 |
| Beamwidth, Horizontal, degrees | 71 | 65 | 63 | 77 | 70 | 59 | 94 | 90 |
| Beamwidth, Vertical, degrees | 10.4 | 9.4 | 8.4 | 7 | 5.5 | 4.4 | 6.3 | 6.6 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 17 | 17 | 19 | 16 | 17 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 32 | 33 | 31 | 31 | 30 | 29 | 31 | 28 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 | ||||||
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 | ||||||
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 | ||||||
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 9 | 9 | ||||||
| CPR at Boresight, dB | 20 | 20 | 18 | 16 | 17 | 17 | 15 | 16 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Co-polarization, dB | 20 | 20 | ||||||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -130 | -130 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 200 | 150 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 17.3 | 17.1 | ||||||
| Beamwidth, Horizontal, degrees | 57 | 56 | ||||||
| Beamwidth, Vertical, degrees | 6.2 | 6.5 | ||||||
| USLS (First Lobe), dB | 14 | 16 |
Electrical specifications, service beam
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Steered 0° Gain, dBi | 20.6 | 20.9 | ||||||
| Steered 0° Beamwidth, Horizontal, degrees | 26 | 24 | ||||||
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 33 | 30 | ||||||
| Steered 0° Horizontal Sidelobe, dB | 11 | 13 | ||||||
| Steered 0° USLS (First Lobe), dB | 16 | 17 | ||||||
| Steered 30° Gain, dBi | 19.8 | 19.7 | ||||||
| Steered 30° Beamwidth, Horizontal, degrees | 28 | 28 | ||||||
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 30 | 28 |
Electrical specifications, soft split
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 19.5 | 19.6 | ||||||
| Beamwidth, Horizontal, degrees | 32 | 32 | ||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 33 | 28 | ||||||
| Horizontal Sidelobe, dB | 18 | 16 | ||||||
| USLS (First Lobe), dB | 17 | 17 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.68 m² | 7.319 ft² |
| Effective Projective Area (EPA), lateral | 0.21 m² | 2.260 ft² |
| Wind Loading @ Velocity, frontal | 728.0 N @ 150 km/h (163.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 223.0 N @ 150 km/h (50.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 873.0 N @ 150 km/h (196.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 501.0 N @ 150 km/h (112.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2287 mm | 90.039 in |
| Weight, gross | 60.8 kg | 134.041 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Sector and beamforming |
| Band | Multiband |
| Calibration Connector Interface | MQ5 |
| Calibration Connector Quantity | 2 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female | MQ4 | MQ5 |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 24 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) | Low band (2) | Mid band (3) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2100 mm | 82.677 in |
| Net Weight, antenna only | 46.5 kg | 102.515 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 2300 – 2690 MHz | 3300 – 3800 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 15.1 | 15.4 | 15.6 | 16.0 | 17.8 | 18.3 | 15.3 | 15.9 |
| Beamwidth, Horizontal, degrees | 71 | 65 | 63 | 77 | 70 | 59 | 94 | 90 |
| Beamwidth, Vertical, degrees | 10.4 | 9.4 | 8.4 | 7 | 5.5 | 4.4 | 6.3 | 6.6 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 17 | 17 | 19 | 16 | 17 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 32 | 33 | 31 | 31 | 30 | 29 | 31 | 28 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 | ||||||
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 | ||||||
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 | ||||||
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 9 | 9 | ||||||
| CPR at Boresight, dB | 20 | 20 | 18 | 16 | 17 | 17 | 15 | 16 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Co-polarization, dB | 20 | 20 | ||||||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -130 | -130 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 200 | 150 | 75 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 17.3 | 17.1 | ||||||
| Beamwidth, Horizontal, degrees | 57 | 56 | ||||||
| Beamwidth, Vertical, degrees | 6.2 | 6.5 | ||||||
| USLS (First Lobe), dB | 14 | 16 |
Electrical specifications, service beam
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Steered 0° Gain, dBi | 20.6 | 20.9 | ||||||
| Steered 0° Beamwidth, Horizontal, degrees | 26 | 24 | ||||||
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 33 | 30 | ||||||
| Steered 0° Horizontal Sidelobe, dB | 11 | 13 | ||||||
| Steered 0° USLS (First Lobe), dB | 16 | 17 | ||||||
| Steered 30° Gain, dBi | 19.8 | 19.7 | ||||||
| Steered 30° Beamwidth, Horizontal, degrees | 28 | 28 | ||||||
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 30 | 28 |
Electrical specifications, soft split
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–2180 | 2300–2690 | 2300–2690 | 3300–3800 |
| Gain, dBi | 19.5 | 19.6 | ||||||
| Beamwidth, Horizontal, degrees | 32 | 32 | ||||||
| Front-to-Back Total Power at 180° ± 30°, dB | 33 | 28 | ||||||
| Horizontal Sidelobe, dB | 18 | 16 | ||||||
| USLS (First Lobe), dB | 17 | 17 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.68 m² | 7.319 ft² |
| Effective Projective Area (EPA), lateral | 0.21 m² | 2.260 ft² |
| Wind Loading @ Velocity, frontal | 728.0 N @ 150 km/h (163.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 223.0 N @ 150 km/h (50.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 873.0 N @ 150 km/h (196.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 501.0 N @ 150 km/h (112.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2287 mm | 90.039 in |
| Weight, gross | 60.8 kg | 134.041 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
