RRZZVV-65A-R6N47V6

12-port sector antenna, 4 x 694–960, 4 x 1427–2690 and 4 x 1695-2690 MHz, 65° HPBW, 6x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits

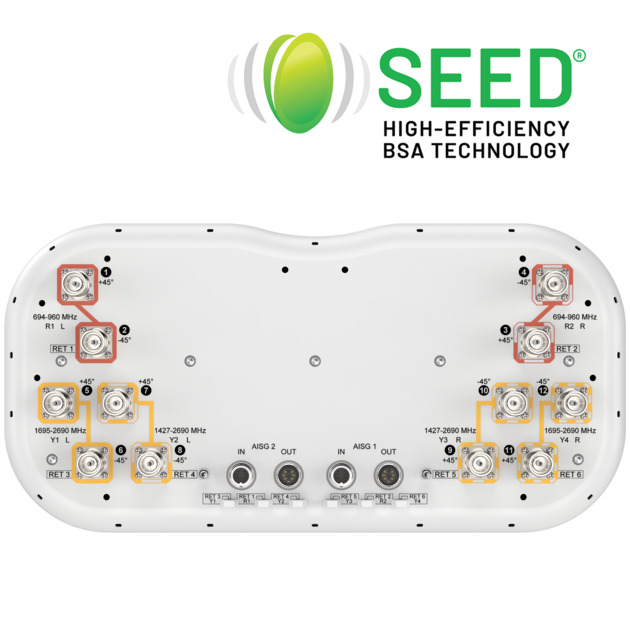

  • SEED® antenna providing high gain and improved efficiency (LookupValue_1605944368281793)
  • High radiation and pattern efficiency for improved coverage area, capacity or reduced power consumption for a given area
  • Reduces the amount of aluminum used to minimize CO2 release
  • Innovative aerodynamic shape optimized for reduced wind loading in every direction
  • Retractable tilt indicator rods

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage

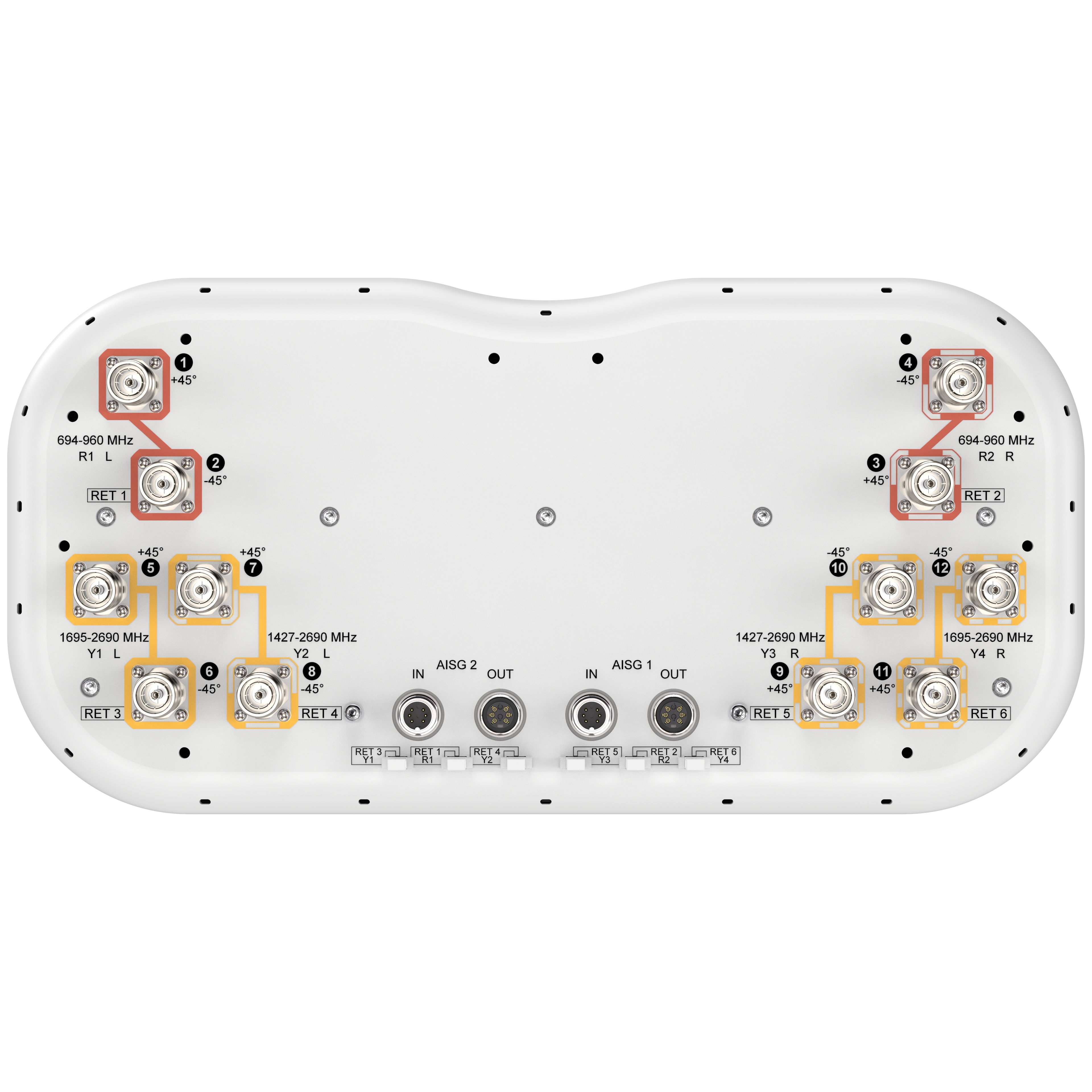

RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 468 mm | 18.425 in
Depth 228 mm | 8.976 in
Length 1599 mm | 62.953 in
Net Weight, without mounting kit 28.5 kg | 62.832 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,800 W @ 50 °C

Electrical specifications

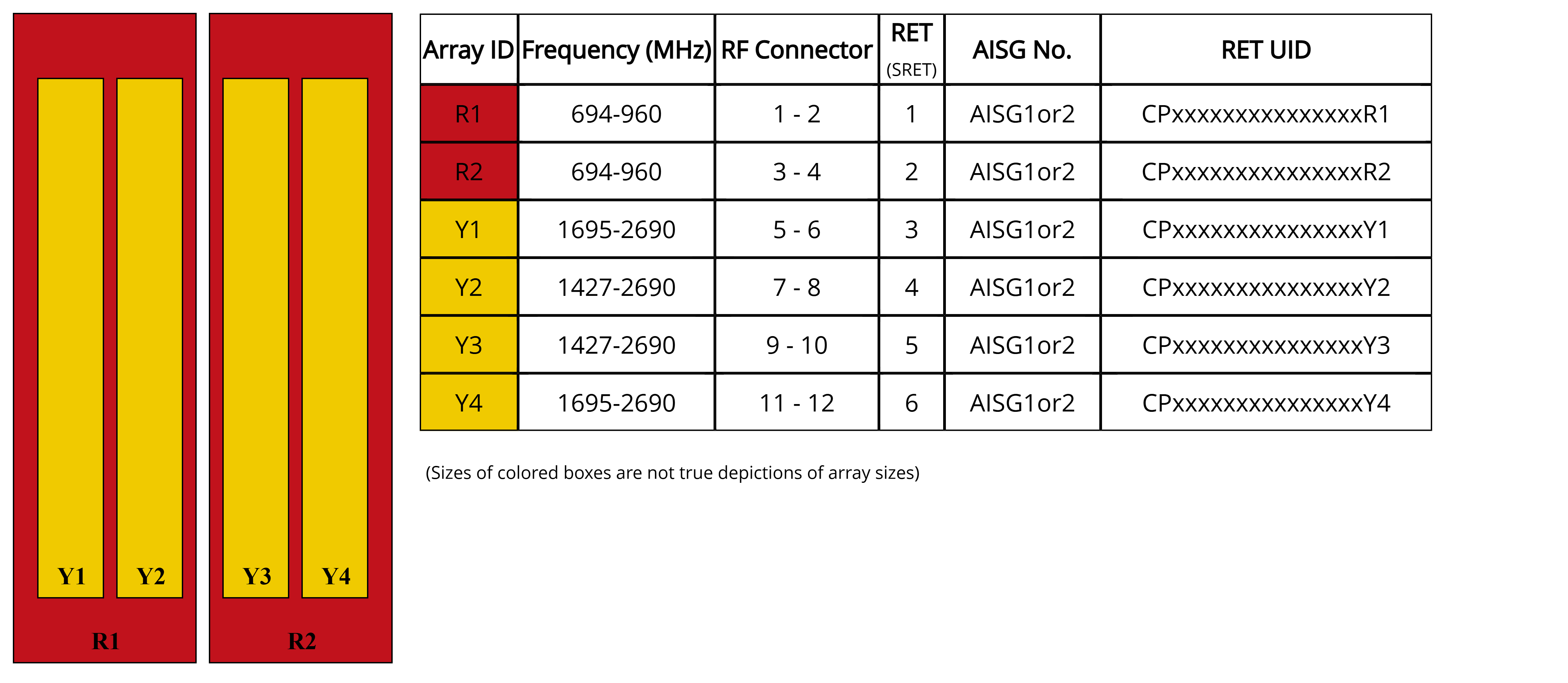

R1,R2 R1,R2 R1,R2 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y1,Y4 Y1,Y4 Y1,Y4 Y1,Y4
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-4 1-4 1-4 7-10 7-10 7-10 7-10 7-10 5,6,11,12 5,6,11,12 5,6,11,12 5,6,11,12
Gain at Mid Tilt, dBi 13.9 14.5 14.9 17.1 17.8 18.7 19.3 20.1 17.6 18.5 19.2 19.9
Beamwidth, Horizontal, degrees 69 62 57 61 75 67 62 56 77 68 62 56
Beamwidth, Vertical, degrees 14.2 13 11.5 7.5 6 5.4 4.9 4.5 6.2 5.6 4.9 4.5
Beam Tilt, degrees 2–16 2–16 2–16 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 18 16 17 17 17 21 19 20 21 21 19
Front-to-Back Ratio at 180°, dB 29 28 28 32 37 40 40 40 32 31 32 33
CPR at Boresight, dB 22 22 23 21 17 17 15 15 25 21 17 18
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200 250 250 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12
Wind Loading @ Velocity, frontal 316.0 N @ 150 km/h (71.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 272.0 N @ 150 km/h (61.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 563.0 N @ 150 km/h (126.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 337.0 N @ 150 km/h (75.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 566 mm | 22.283 in
Depth, packed 380 mm | 14.961 in
Length, packed 1781 mm | 70.118 in
Weight, gross 39.7 kg | 87.523 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant
