RRZZVVQ4Q4-65BR8V4

28-port sector antenna,4 x 694-960 MHz (R1,R2), 4 x 1695-2690 MHz (Y1,Y4) and 4 x 1427-2690 MHz (Y2,Y3) , 65° HPBW, 16 x 2300-3800 MHz (P1,P2), 90° HPBW, 8 x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Q4 array uses MQ4/5 cluster connectors
  • New aerodynamic endcaps for wind load optimization
  • Eight internal RETs control the antenna arrays
  • Two broadband beamforming arrays for 2300-3800 MHz, each with a calibration port

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 2
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 16
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 28

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2198 mm | 86.535 in
Net Weight, without mounting kit 44.4 kg | 97.885 lb

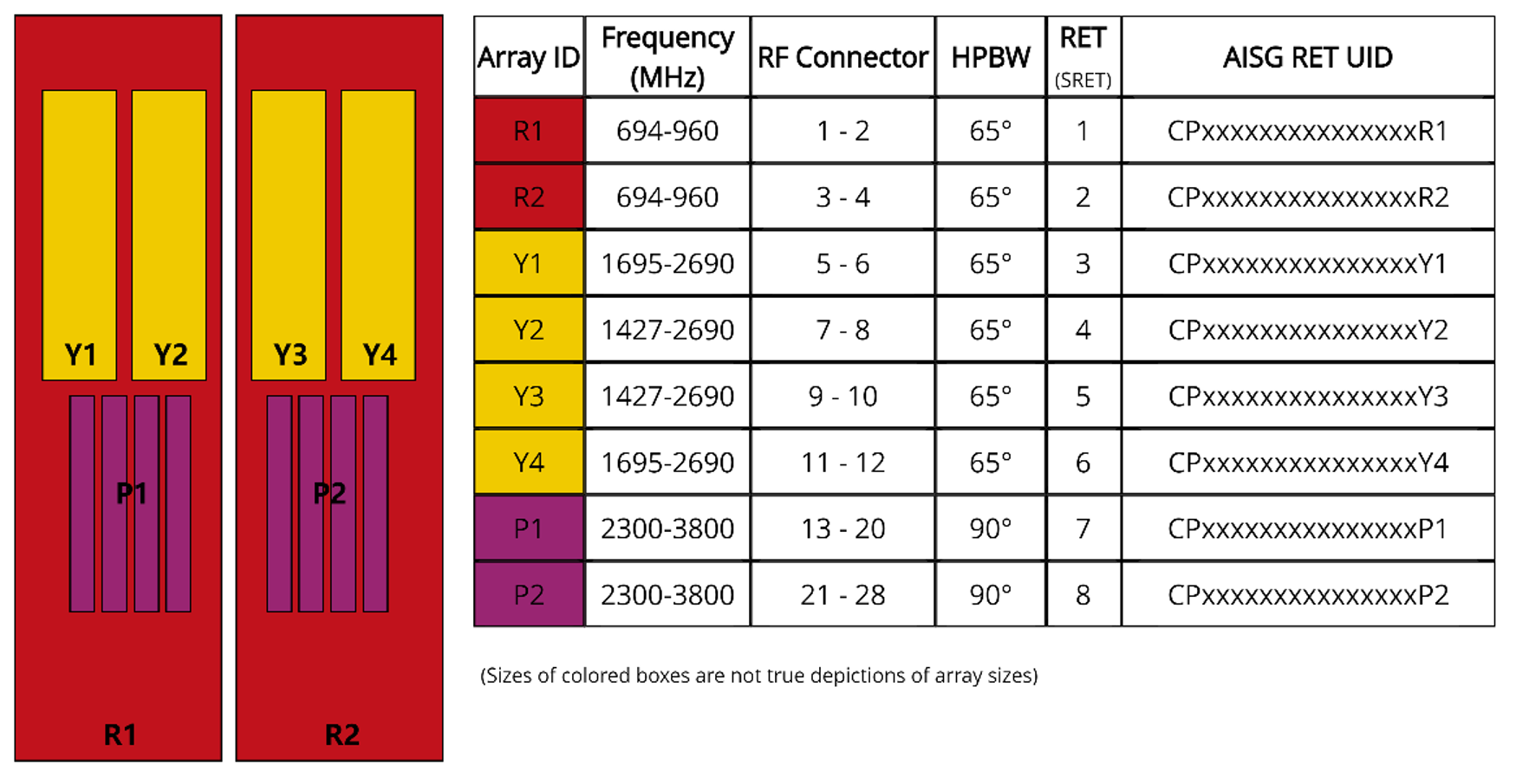

Array layout

Click on image to enlarge.

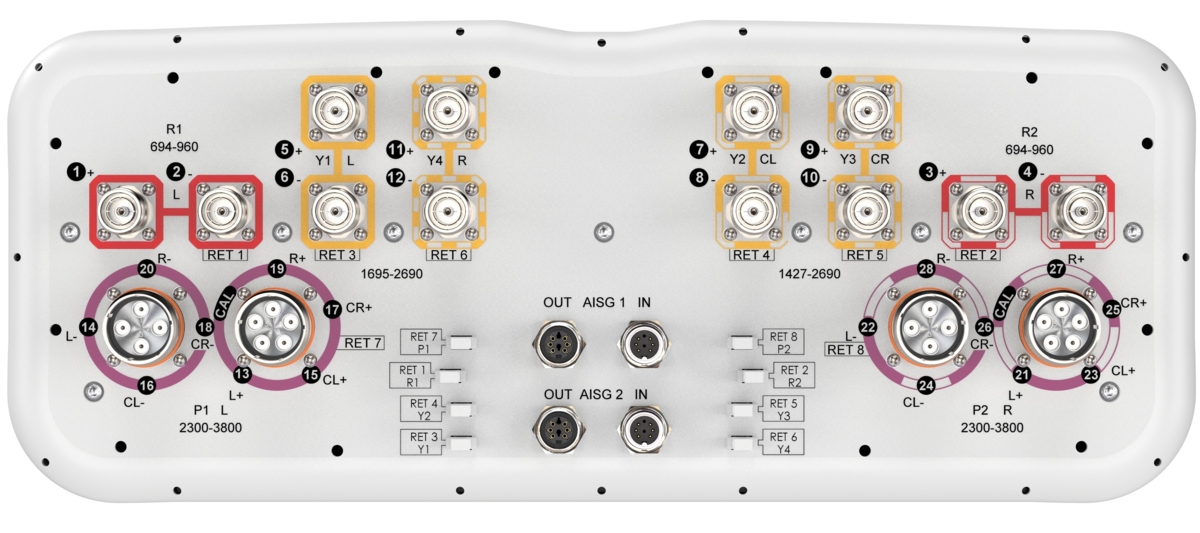

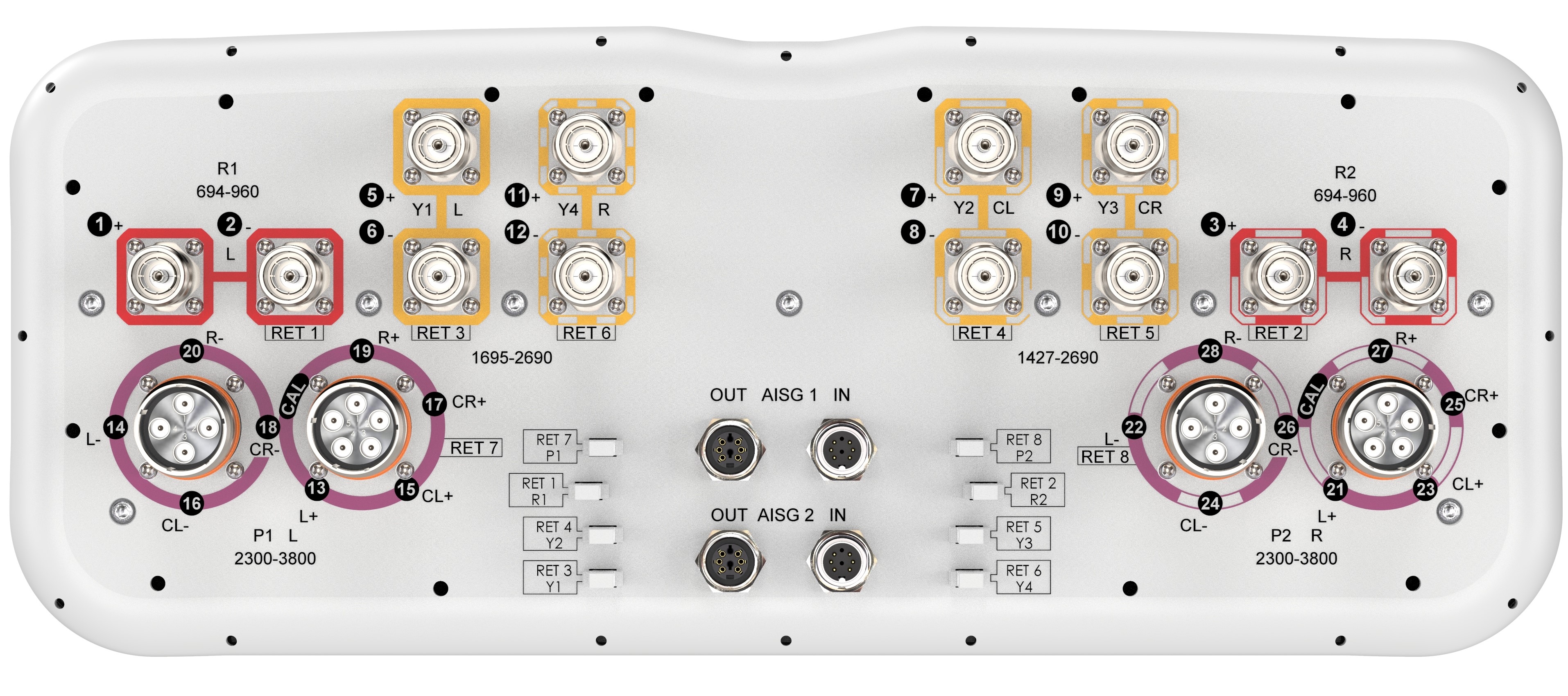

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz | 2300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y4 Y1,Y4 Y1,Y4 Y1,Y4 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 P1,P2 P1,P2 P1,P2 P1,P2
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 2300–2500 2490–2690 3300–3600 3600–3800
RF Port 1,2,3,4 1,2,3,4 1,2,3,4 5,6,11,12 5,6,11,12 5,6,11,12 5,6,11,12 7,8,9,10 7,8,9,10 7,8,9,10 7,8,9,10 7,8,9,10 13-28 13-28 13-28 13-28
Gain at Mid Tilt, dBi 15.3 15.5 15.5 16.0 16.8 17.4 17.8 14.6 16.1 16.8 17.7 18.0 15.0 15.5 17.0 17.1
Beamwidth, Horizontal, degrees 62 60 64 71 65 60 59 80 66 61 59 55 91 92 73 63
Beamwidth, Vertical, degrees 10.2 9.1 8.6 8.7 7.8 6.7 6.2 10.6 8.7 7.7 6.7 6.2 6.5 6.2 5 4.7
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 16 18 19 19 18 18 15 16 15 17 16 13 15 16 19
Front-to-Back Ratio at 180°, dB 29 29 28 32 28 27 31 35 34 33 33 34 28 31 31 30
Coupling level, Amp, Antenna port to Cal port, dB -26 -26 -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2 ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7 7 7
CPR at Boresight, dB 18 18 19 22 22 22 21 19 21 21 23 22 15 17 20 16
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25 25 25 25 23 23 23 23
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 18 18 18 18
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -140 -140 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 200 250 250 250 200 200 75 75 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 2300–2500 2490–2690 3300–3600 3600–3800
Gain, dBi 18.1 18.3 18.2 18.4
Beamwidth, Horizontal at 3 dB, degrees 65 65 65 65
Beamwidth, Horizontal at 10 dB, degrees 115 109 114 112
Beamwidth, Vertical, degrees 6.6 6.2 5.0 4.7
Front-to-Back Total Power at 180° ± 30°, dB 24 25 25 23
USLS (First Lobe), dB 16 17 17 18

Electrical specifications, service beam

Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 2300–2500 2490–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 20.7 21.0 22.6 22.7
Steered 0° Beamwidth, Horizontal, degrees 27 25 19 18
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29 29 31 30
Steered 0° Horizontal Sidelobe, dB 14 12 11 11
Steered 30° Gain, dBi 19.8 20.4 20.9 20.8
Steered 30° Beamwidth, Horizontal, degrees 29 27 21 19
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26 28 26 24

Electrical specifications, soft split

Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 2300–2500 2490–2690 3300–3600 3600–3800
Gain, dBi 19.7 20.2
Beamwidth, Horizontal, degrees 33 31
Front-to-Back Total Power at 180° ± 30°, dB 28 30
Horizontal Sidelobe, dB 19 17

Mechanical specifications

BASTA Version, mechanical BASTA v12
Wind Loading @ Velocity, frontal 747.0 N @ 150 km/h (167.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 195.0 N @ 150 km/h (43.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 993.0 N @ 150 km/h (223.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 514.0 N @ 150 km/h (115.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2319 mm | 91.299 in
Weight, gross 58.6 kg | 129.191 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant
