RV4PX310R-V2

10-port sector antenna, 2x 694–960 and 8x 1695–2690 MHz, 65° HPBW, 5x RET with manual override. Bands cascaded SRET.

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
  • All Internal RET actuators are connected in “Cascaded SRET” configuration

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2533 mm | 99.724 in
Net Weight, without mounting kit 39 kg | 85.98 lb

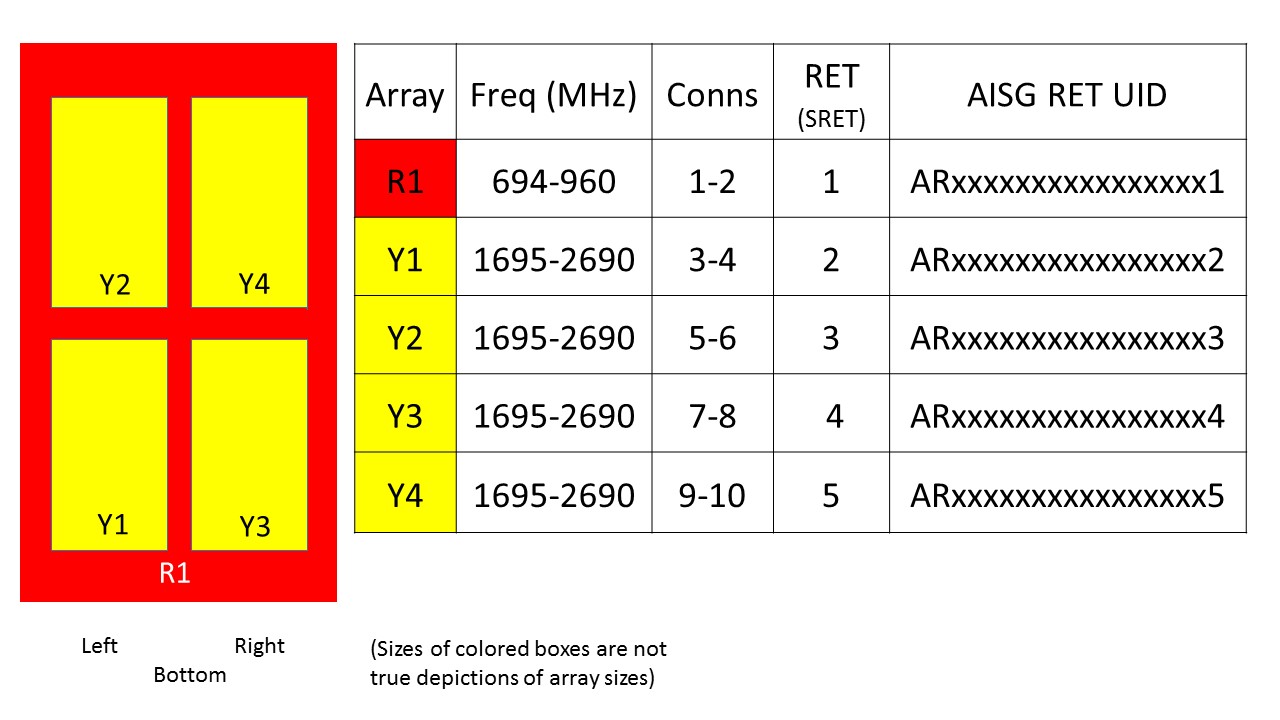

Array layout

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–798 790–894 890–960 1695–1880 1850–1990 1920–2200 2300–2690
Gain, dBi 16.0 16.6 16.9 16.8 16.9 17.2 18.0
Beamwidth, Horizontal, degrees 69 68 66 63 62 63 61
Beamwidth, Vertical, degrees 9.9 8.7 8.1 8.3 7.7 7.1 6
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18 18
Null Fill, dB -22 -22 -22 -22 -22 -22 -22
Front-to-Back Ratio at 180°, dB 31 34 33 32 39 37 38
CPR at Boresight, dB 16 18 17 17 21 19 18
Isolation, Cross Polarization, dB 28 28 28 30 30 30 30
Isolation, Inter-band, dB 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 200 175 175 175 175

Mechanical specifications

Effective Projective Area (EPA), frontal 0.42 m² | 4.521 ft²
Effective Projective Area (EPA), lateral 0.36 m² | 3.875 ft²
Wind Loading @ Velocity, frontal 445.0 N @ 150 km/h (100.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 379.0 N @ 150 km/h (85.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 942.0 N @ 150 km/h (211.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 472.0 N @ 150 km/h (106.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2834 mm | 111.575 in
Weight, gross 56 kg | 123.459 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2533 mm | 99.724 in
Net Weight, without mounting kit 39 kg | 85.98 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–798 790–894 890–960 1695–1880 1850–1990 1920–2200 2300–2690
Gain, dBi 16.0 16.6 16.9 16.8 16.9 17.2 18.0
Beamwidth, Horizontal, degrees 69 68 66 63 62 63 61
Beamwidth, Vertical, degrees 9.9 8.7 8.1 8.3 7.7 7.1 6
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18 18
Null Fill, dB -22 -22 -22 -22 -22 -22 -22
Front-to-Back Ratio at 180°, dB 31 34 33 32 39 37 38
CPR at Boresight, dB 16 18 17 17 21 19 18
Isolation, Cross Polarization, dB 28 28 28 30 30 30 30
Isolation, Inter-band, dB 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 200 175 175 175 175

Mechanical specifications

Effective Projective Area (EPA), frontal 0.42 m² | 4.521 ft²
Effective Projective Area (EPA), lateral 0.36 m² | 3.875 ft²
Wind Loading @ Velocity, frontal 445.0 N @ 150 km/h (100.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 379.0 N @ 150 km/h (85.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 942.0 N @ 150 km/h (211.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 472.0 N @ 150 km/h (106.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2834 mm | 111.575 in
Weight, gross 56 kg | 123.459 lb

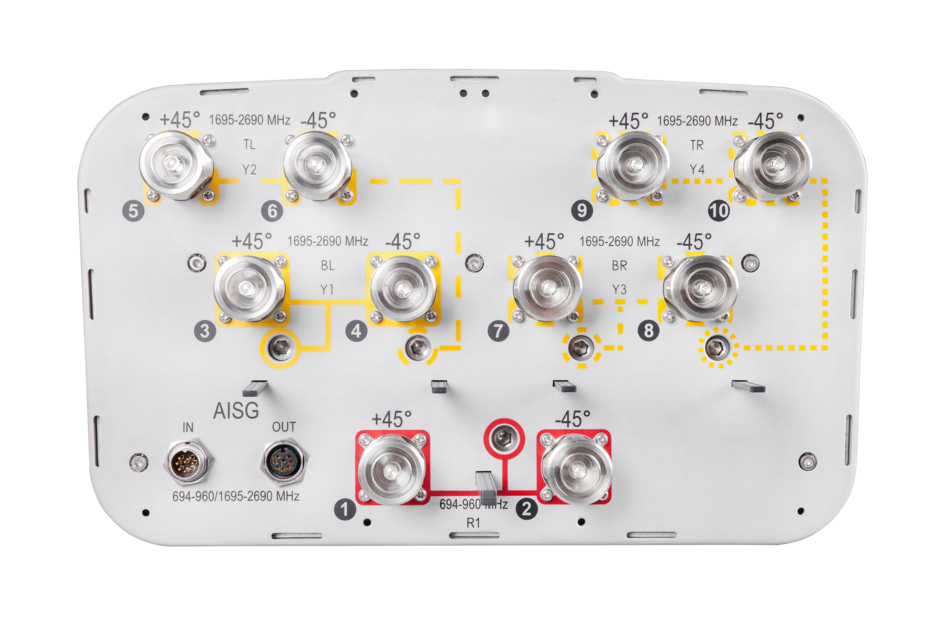

Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

Line drawing
