RV65A-2X2
4-port sector antenna, 2x 694–960 and 2x 1695–2690 MHz, 65° HPBW, RET compatible
Features and benefits
- Utilizes AccuRET® actuator(s) on the back of the antenna
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1412 mm | 55.591 in |
| Net Weight, without mounting kit | 17.1 kg | 37.699 lb |

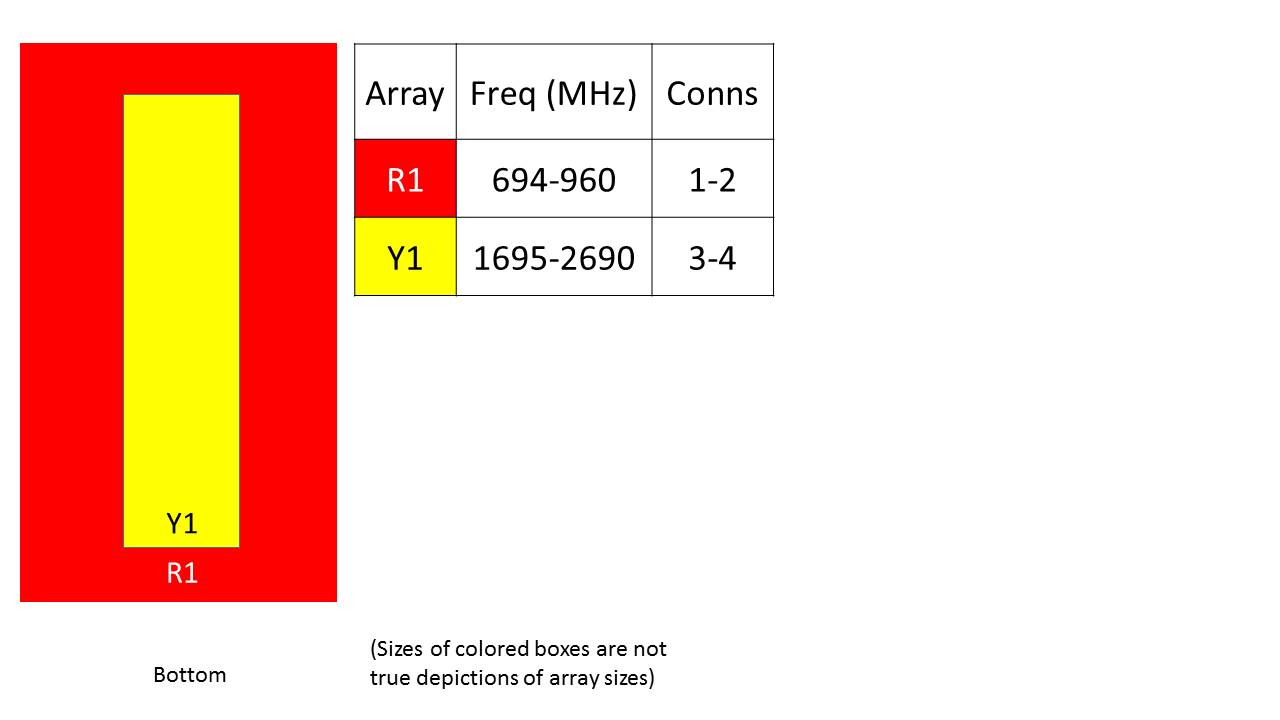

Array layout
| Click on image to enlarge. |

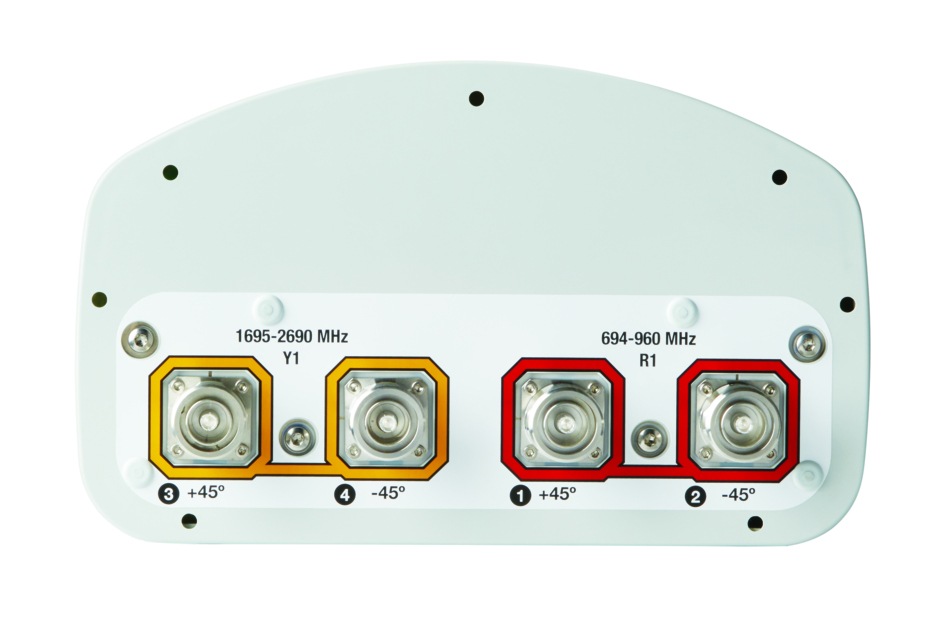

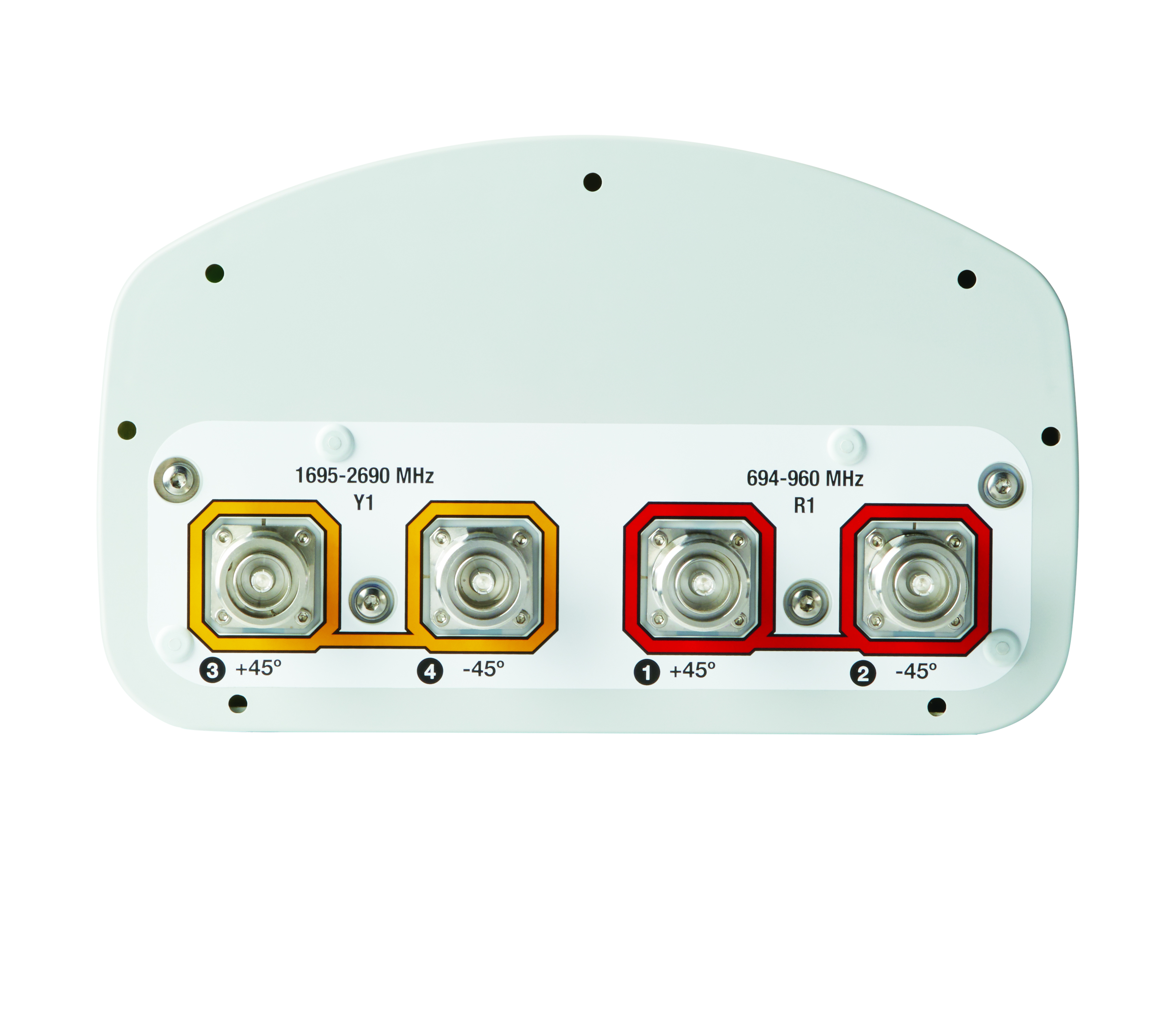

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–703 | 703–790 | 790–890 | 890–960 | 1695–1920 | 1920–2180 | 2300–2690 |
| Gain, dBi | 13.6 | 13.7 | 14.0 | 14.3 | 17.1 | 17.5 | 18.1 |
| Beamwidth, Horizontal, degrees | 72 | 73 | 71 | 69 | 64 | 65 | 60 |
| Beamwidth, Vertical, degrees | 17.3 | 16.6 | 15.3 | 14 | 7.2 | 6.4 | 5.3 |
| Beam Tilt, degrees | 2–15 | 2–15 | 2–15 | 2–15 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 20 | 20 | 19 | 17 | 16 | 14 | 14 |
| Front-to-Back Ratio at 180°, dB | 27 | 29 | 33 | 31 | 28 | 30 | 31 |
| CPR at Boresight, dB | 20 | 20 | 21 | 19 | 15 | 17 | 21 |
| Isolation, Cross Polarization, dB | 25 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 205.0 N @ 150 km/h (46.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 208.0 N @ 150 km/h (46.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 429 mm | 16.89 in |
| Depth, packed | 329 mm | 12.953 in |
| Length, packed | 1672 mm | 65.827 in |
| Weight, gross | 30.5 kg | 67.241 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1412 mm | 55.591 in |
| Net Weight, without mounting kit | 17.1 kg | 37.699 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–703 | 703–790 | 790–890 | 890–960 | 1695–1920 | 1920–2180 | 2300–2690 |
| Gain, dBi | 13.6 | 13.7 | 14.0 | 14.3 | 17.1 | 17.5 | 18.1 |
| Beamwidth, Horizontal, degrees | 72 | 73 | 71 | 69 | 64 | 65 | 60 |
| Beamwidth, Vertical, degrees | 17.3 | 16.6 | 15.3 | 14 | 7.2 | 6.4 | 5.3 |
| Beam Tilt, degrees | 2–15 | 2–15 | 2–15 | 2–15 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 20 | 20 | 19 | 17 | 16 | 14 | 14 |
| Front-to-Back Ratio at 180°, dB | 27 | 29 | 33 | 31 | 28 | 30 | 31 |
| CPR at Boresight, dB | 20 | 20 | 21 | 19 | 15 | 17 | 21 |
| Isolation, Cross Polarization, dB | 25 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 205.0 N @ 150 km/h (46.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 208.0 N @ 150 km/h (46.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 429 mm | 16.89 in |
| Depth, packed | 329 mm | 12.953 in |
| Length, packed | 1672 mm | 65.827 in |
| Weight, gross | 30.5 kg | 67.241 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Installation & videos
Installation instruction
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
