RVVS4-65S-R3

14-port sector antenna, 2x 698-960(R1), 4x 1695-2690(Y1&Y2) MHz, 65° HPBW and 8x 3300-3800(P1) MHz, 90° HPBW, 4x RET.

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • M-LOC cluster connector for 3.3-3.8GHz, equipped with calibration port
  • Combination of FDD MIMO antenna and 3.5GHz 8T8R TDD beam forming antenna, all in one for 5G ready

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 800 mm | 31.496 in
Net Weight, antenna only 16.6 kg | 36.597 lb

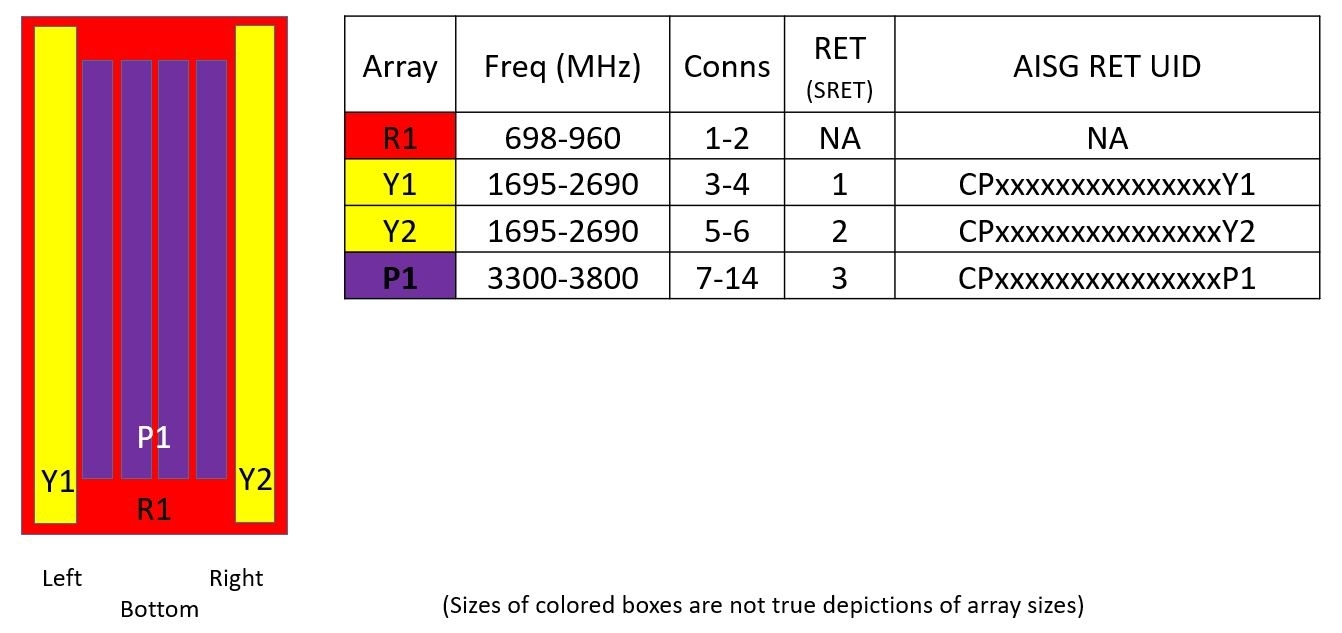

Array layout

Click on image to enlarge.

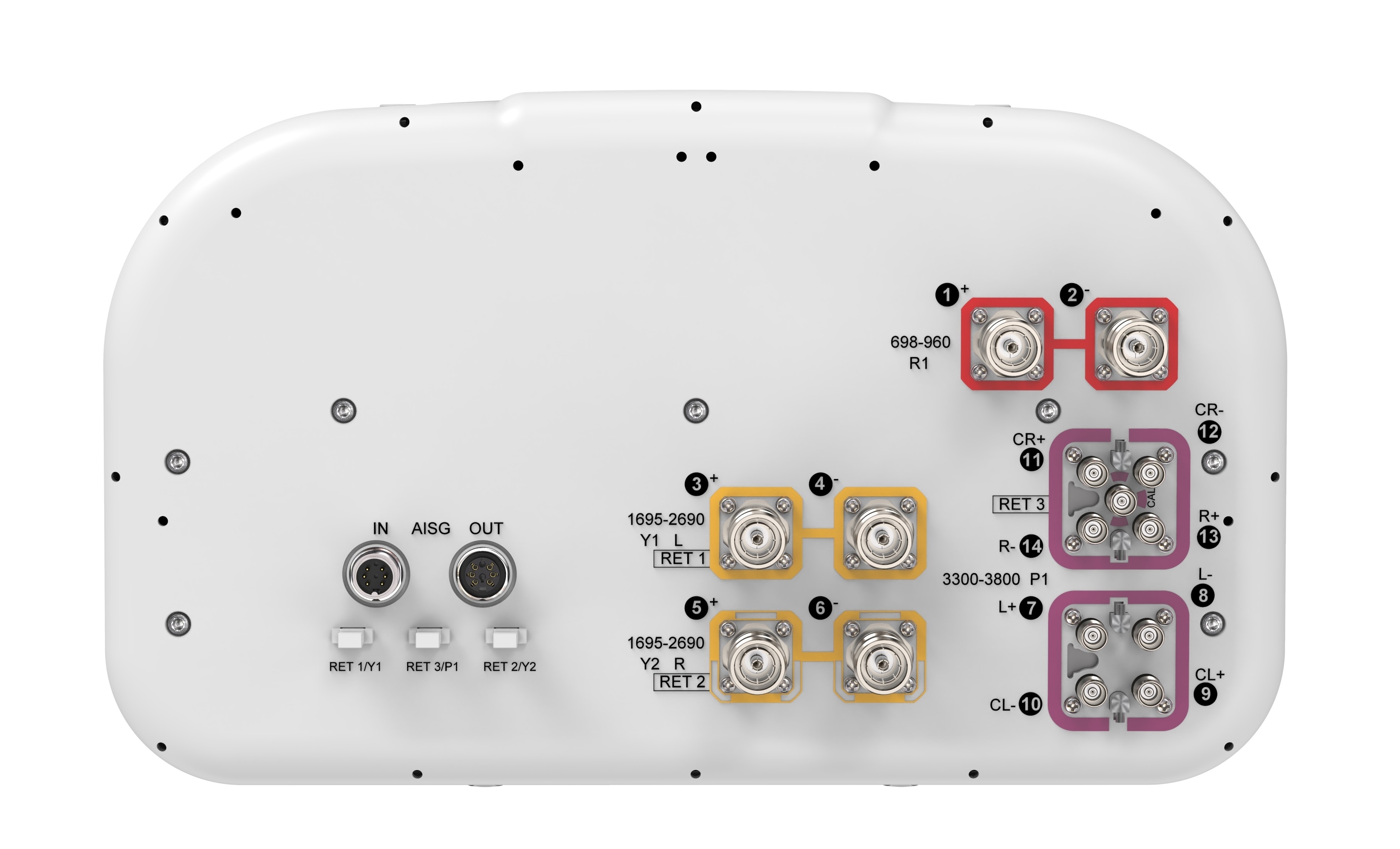

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 P1 P1
Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
RF Port 1,2 1,2 3-6 3-6 3-6 7-14 7-14
Gain at Mid Tilt, dBi 11.5 11.7 14.2 14.4 15.1 14.5 14.9
Beamwidth, Horizontal, degrees 70 68 70 71 63 81 74
Beamwidth, Vertical, degrees 27.7 22.8 13.2 12 10.3 7.2 6.8
Beam Tilt, degrees 12 12 2–12 2–12 2–12 0–10 0–10
USLS (First Lobe), dB 14 13 16 15 15 15 14
Front-to-Back Ratio at 180°, dB 32 33 33 34 31 29 29
Front-to-Back Total Power at 180° ± 30°, dB 21 22 26 28 27 20 22
Coupling level, Amp, Antenna port to Cal port, dB -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 20 23 22 24 19 14 15
CPR at Sector, dB 10 10 15 11 8 7 6
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 200 200 200 200 150 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 17.6 17.8
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 7.1 6.6
Front-to-Back Total Power at 180° ± 30°, dB 26 28
USLS (First Lobe), dB 19 17

Electrical specifications, envelope pattern

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 19.5 19.7
Beamwidth, Horizontal at 10 dB, degrees 119 111
Front-to-Back Total Power at 180° ± 30°, dB 26 28
USLS (First Lobe), dB 19 19

Electrical specifications, service beam

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 19.5 19.7
Steered 0° Beamwidth, Horizontal, degrees 24 22
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29 30
Steered 0° Horizontal Sidelobe, dB 13 13
Steered 30° Gain, dBi 18.2 18.9
Steered 30° Beamwidth, Horizontal, degrees 29 26
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 27 28

Mechanical specifications

Wind Loading @ Velocity, frontal 110.0 N @ 150 km/h (24.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 93.0 N @ 150 km/h (20.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 220.0 N @ 150 km/h (49.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 126.0 N @ 150 km/h (28.3 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 509 mm | 20.039 in
Depth, packed 386 mm | 15.197 in
Length, packed 941 mm | 37.047 in
Weight, gross 26.1 kg | 57.541 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 800 mm | 31.496 in
Net Weight, antenna only 16.6 kg | 36.597 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 P1 P1
Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
RF Port 1,2 1,2 3-6 3-6 3-6 7-14 7-14
Gain at Mid Tilt, dBi 11.5 11.7 14.2 14.4 15.1 14.5 14.9
Beamwidth, Horizontal, degrees 70 68 70 71 63 81 74
Beamwidth, Vertical, degrees 27.7 22.8 13.2 12 10.3 7.2 6.8
Beam Tilt, degrees 12 12 2–12 2–12 2–12 0–10 0–10
USLS (First Lobe), dB 14 13 16 15 15 15 14
Front-to-Back Ratio at 180°, dB 32 33 33 34 31 29 29
Front-to-Back Total Power at 180° ± 30°, dB 21 22 26 28 27 20 22
Coupling level, Amp, Antenna port to Cal port, dB -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 20 23 22 24 19 14 15
CPR at Sector, dB 10 10 15 11 8 7 6
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 200 200 200 200 150 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 17.6 17.8
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 7.1 6.6
Front-to-Back Total Power at 180° ± 30°, dB 26 28
USLS (First Lobe), dB 19 17

Electrical specifications, envelope pattern

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 19.5 19.7
Beamwidth, Horizontal at 10 dB, degrees 119 111
Front-to-Back Total Power at 180° ± 30°, dB 26 28
USLS (First Lobe), dB 19 19

Electrical specifications, service beam

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 19.5 19.7
Steered 0° Beamwidth, Horizontal, degrees 24 22
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29 30
Steered 0° Horizontal Sidelobe, dB 13 13
Steered 30° Gain, dBi 18.2 18.9
Steered 30° Beamwidth, Horizontal, degrees 29 26
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 27 28

Mechanical specifications

Wind Loading @ Velocity, frontal 110.0 N @ 150 km/h (24.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 93.0 N @ 150 km/h (20.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 220.0 N @ 150 km/h (49.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 126.0 N @ 150 km/h (28.3 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 509 mm | 20.039 in
Depth, packed 386 mm | 15.197 in
Length, packed 941 mm | 37.047 in
Weight, gross 26.1 kg | 57.541 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
