RZZ-65B-R3
6-port sector antenna, 2x 694-960, 4x 1427-2690 MHz, 65° HPBW, 3x RET
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
- Retractable tilt indicator rods
- Antenna shape optimized for wind load reduction
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 350 mm | 13.780 in |
| Depth | 208 mm | 8.189 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 23.7 kg | 52.249 lb |

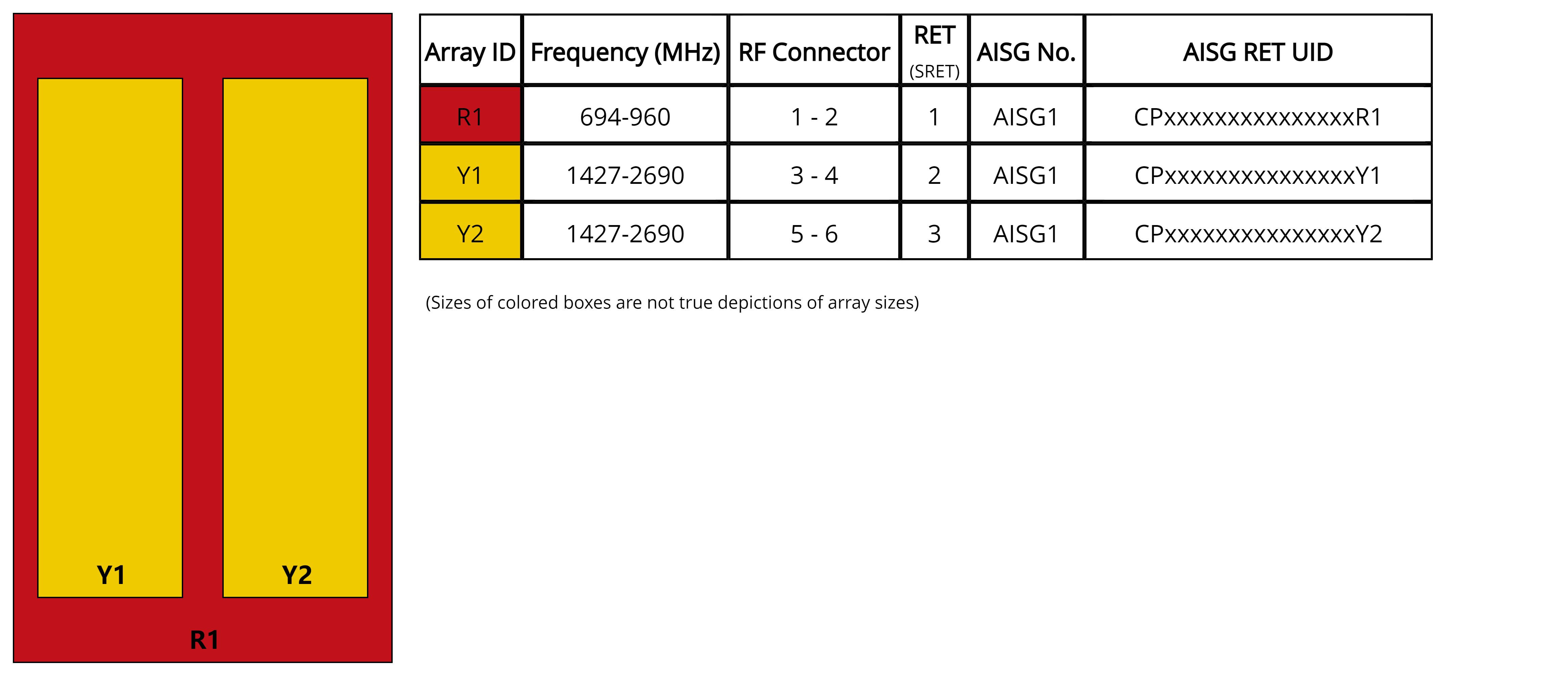

Array layout
| Click on image to enlarge. |

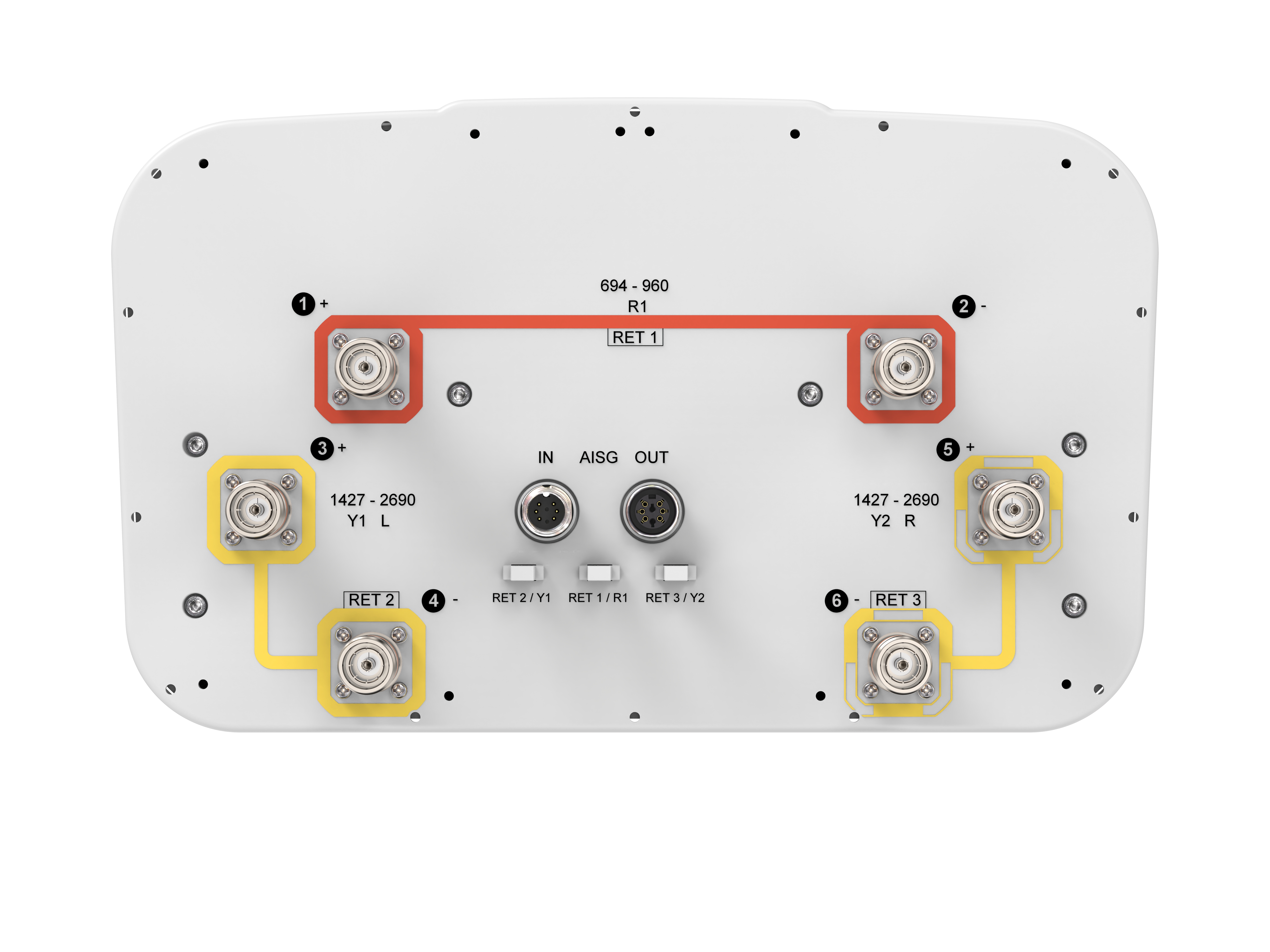

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| R1 | R1 | R1 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 |
| Gain, dBi | 15.4 | 15.8 | 15.7 | 16.7 | 18.1 | 18.6 | 18.8 | 18.8 |
| Beamwidth, Horizontal, degrees | 68 | 66 | 66 | 71 | 60 | 60 | 64 | 58 |
| Beamwidth, Vertical, degrees | 11.9 | 10.6 | 9.8 | 7.1 | 5.9 | 5.3 | 4.6 | 4.3 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 19 | 18 | 18 | 18 | 16 | 17 | 17 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 33 | 33 | 38 | 36 | 35 | 33 |
| CPR at Boresight, dB | 16 | 17 | 17 | 18 | 21 | 20 | 22 | 22 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 26 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 301.0 N @ 150 km/h (67.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 290.0 N @ 150 km/h (65.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 678.0 N @ 150 km/h (152.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 318.0 N @ 150 km/h (71.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 456 mm | 17.953 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 1975 mm | 77.756 in |
| Weight, gross | 37.2 kg | 82.012 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 350 mm | 13.780 in |
| Depth | 208 mm | 8.189 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 23.7 kg | 52.249 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| R1 | R1 | R1 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1427–1518 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 | 3,4,5,6 |
| Gain, dBi | 15.4 | 15.8 | 15.7 | 16.7 | 18.1 | 18.6 | 18.8 | 18.8 |
| Beamwidth, Horizontal, degrees | 68 | 66 | 66 | 71 | 60 | 60 | 64 | 58 |
| Beamwidth, Vertical, degrees | 11.9 | 10.6 | 9.8 | 7.1 | 5.9 | 5.3 | 4.6 | 4.3 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 19 | 18 | 18 | 18 | 16 | 17 | 17 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 33 | 33 | 38 | 36 | 35 | 33 |
| CPR at Boresight, dB | 16 | 17 | 17 | 18 | 21 | 20 | 22 | 22 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 26 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 301.0 N @ 150 km/h (67.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 290.0 N @ 150 km/h (65.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 678.0 N @ 150 km/h (152.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 318.0 N @ 150 km/h (71.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 456 mm | 17.953 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 1975 mm | 77.756 in |
| Weight, gross | 37.2 kg | 82.012 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
