T4-90B-R1-V4
8-Port Beamforming Antenna, 2300–2690 MHz, 1xRET
Features and benefits
- For use in beamforming systems for 2300-2690 MHz with calibration ports
Specifications
General specifications
| Antenna Type | Sector and beamforming |
| Band | Single band |
| Calibration Connector Interface | M-LOC |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | M-LOC |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 407 mm | 16.024 in |
| Depth | 120 mm | 4.724 in |
| Length | 1829 mm | 72.008 in |
| Net Weight, without mounting kit | 23.3 kg | 51.368 lb |

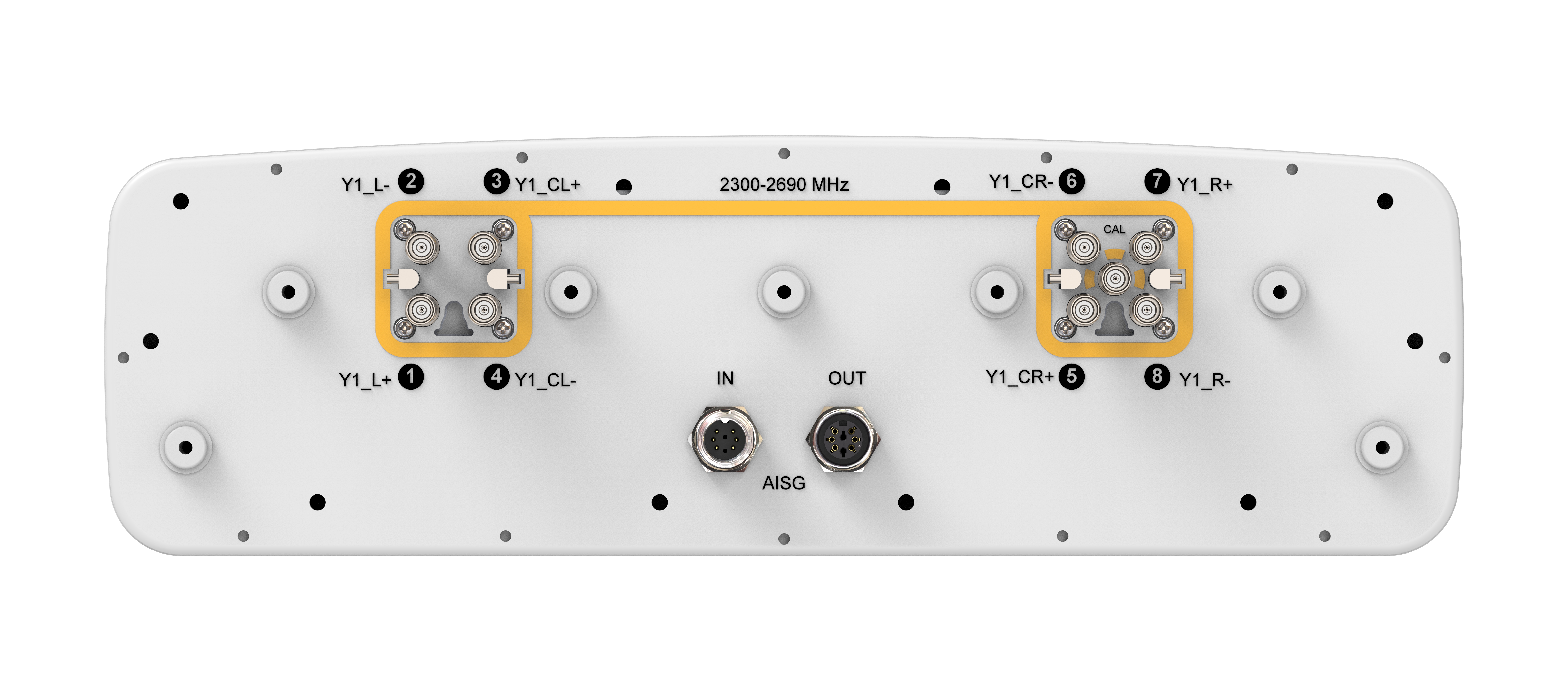

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2300 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 700 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Beam Tilt, degrees | 0–8 | 0–8 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Co-polarization, dB | 20 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Gain, dBi | 17.6 | 17.6 |
| Beamwidth, Vertical, degrees | 4.2 | 4.0 |
| CPR at Boresight, dB | 18 | 17 |
| CPR at Sector, dB | 16 | 11 |
| Front-to-Back Total Power at 180° ± 30°, dB | 25 | 22 |
| USLS (First Lobe), dB | 22 | 22 |
Electrical specifications, envelope pattern
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Gain, dBi | 24.0 | 24.1 |
| Beamwidth, Horizontal at 10 dB, degrees | 145 | 123 |
| Front-to-Back Total Power at 180° ± 30°, dB | 30 | 29 |
| USLS (First Lobe), dB | 25 | 27 |
Electrical specifications, service beam
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Steered 13° Gain, dBi | 24.0 | 24.1 |
| Steered 13° Gain Tolerance, dBi | ±0.2 | ±0.4 |
| Steered 13° Beamwidth, Horizontal, degrees | 20 | 18 |
| Steered 13° CPR at Beampeak, dB | 18 | 17 |
| Steered 13° Front-to-Back Total Power at 180° ± 30°, dB | 33 | 32 |
| Steered 13° Horizontal Sidelobe, dB | 18 | 19 |
| Steered 13° USLS (First Lobe), dB | 24 | 28 |
| Steered 42° Gain, dBi | 22.0 | 22.0 |
| Steered 42° Gain Tolerance, dBi | ±0.3 | ±0.5 |
| Steered 42° Beamwidth, Horizontal, degrees | 26 | 22 |
| Steered 42° CPR at Beampeak, dB | 18 | 14 |
| Steered 42° Front-to-Back Total Power at 180° ± 30°, dB | 29 | 28 |
| Steered 42° Horizontal Sidelobe, dB | 14 | 14 |
| Steered 42° USLS (First Lobe), dB | 22 | 22 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,063.0 N @ 150 km/h (239.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 158.0 N @ 150 km/h (35.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,063.0 N @ 150 km/h (239.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 545 mm | 21.457 in |
| Depth, packed | 302 mm | 11.890 in |
| Length, packed | 1961 mm | 77.205 in |
| Weight, gross | 34 kg | 74.957 lb |
Regulatory compliance/certifications
| Agency | Classification |
AISG
|
Compliant |
General specifications
| Antenna Type | Sector and beamforming |
| Band | Single band |
| Calibration Connector Interface | M-LOC |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | M-LOC |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 407 mm | 16.024 in |
| Depth | 120 mm | 4.724 in |
| Length | 1829 mm | 72.008 in |
| Net Weight, without mounting kit | 23.3 kg | 51.368 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2300 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 700 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Beam Tilt, degrees | 0–8 | 0–8 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Co-polarization, dB | 20 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Gain, dBi | 17.6 | 17.6 |
| Beamwidth, Vertical, degrees | 4.2 | 4.0 |
| CPR at Boresight, dB | 18 | 17 |
| CPR at Sector, dB | 16 | 11 |
| Front-to-Back Total Power at 180° ± 30°, dB | 25 | 22 |
| USLS (First Lobe), dB | 22 | 22 |
Electrical specifications, envelope pattern
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Gain, dBi | 24.0 | 24.1 |
| Beamwidth, Horizontal at 10 dB, degrees | 145 | 123 |
| Front-to-Back Total Power at 180° ± 30°, dB | 30 | 29 |
| USLS (First Lobe), dB | 25 | 27 |
Electrical specifications, service beam
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Steered 13° Gain, dBi | 24.0 | 24.1 |
| Steered 13° Gain Tolerance, dBi | ±0.2 | ±0.4 |
| Steered 13° Beamwidth, Horizontal, degrees | 20 | 18 |
| Steered 13° CPR at Beampeak, dB | 18 | 17 |
| Steered 13° Front-to-Back Total Power at 180° ± 30°, dB | 33 | 32 |
| Steered 13° Horizontal Sidelobe, dB | 18 | 19 |
| Steered 13° USLS (First Lobe), dB | 24 | 28 |
| Steered 42° Gain, dBi | 22.0 | 22.0 |
| Steered 42° Gain Tolerance, dBi | ±0.3 | ±0.5 |
| Steered 42° Beamwidth, Horizontal, degrees | 26 | 22 |
| Steered 42° CPR at Beampeak, dB | 18 | 14 |
| Steered 42° Front-to-Back Total Power at 180° ± 30°, dB | 29 | 28 |
| Steered 42° Horizontal Sidelobe, dB | 14 | 14 |
| Steered 42° USLS (First Lobe), dB | 22 | 22 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,063.0 N @ 150 km/h (239.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 158.0 N @ 150 km/h (35.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,063.0 N @ 150 km/h (239.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 545 mm | 21.457 in |
| Depth, packed | 302 mm | 11.890 in |
| Length, packed | 1961 mm | 77.205 in |
| Weight, gross | 34 kg | 74.957 lb |

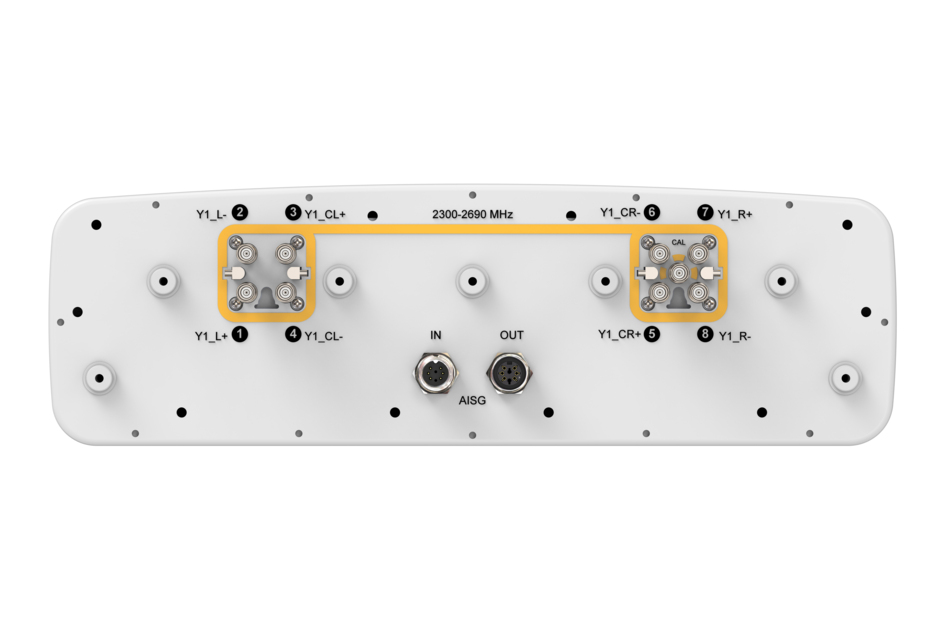

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
AISG
|
Compliant |
Installation & videos
Installation instruction
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
