UNA010F-0-V2

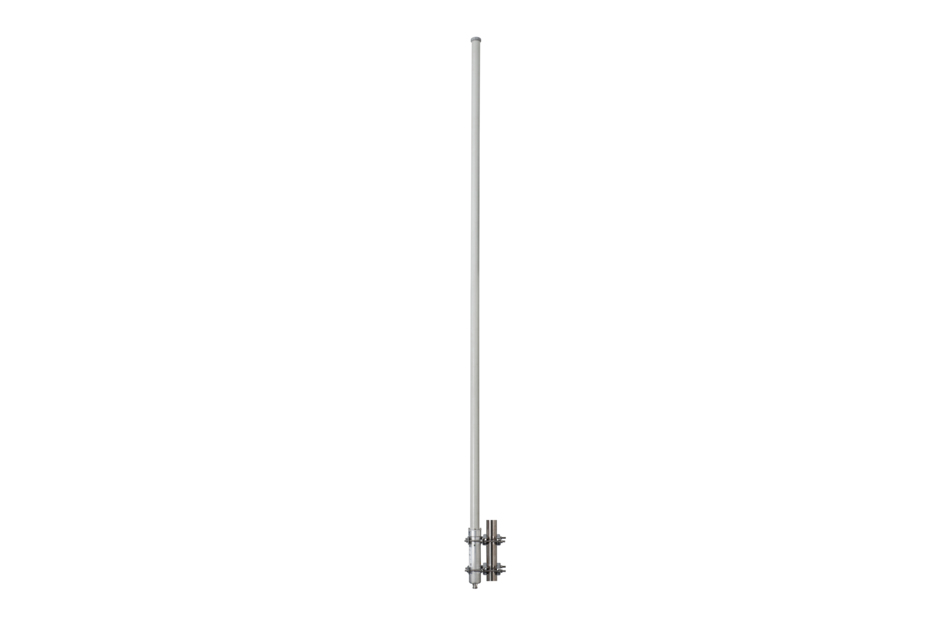

1-port omni antenna, 694–896 MHz, 360° HPBW, fixed tilt
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 3414 mm | 134.41 in |
| Net Weight, without mounting kit | 9.1 kg | 20.062 lb |
| Outer Diameter | 56 mm | 2.205 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 896 MHz |
| Polarization | Vertical |
| Total Input Power, maximum | 100 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–896 |
| Gain, dBi | 11.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7.2 |
| Beam Tilt, degrees | 0 |
| USLS (First Lobe), dB | 19 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 |
| Input Power per Port, maximum, watts | 100 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 240.0 N @ 150 km/h (54.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 88 mm | 3.465 in |
| Depth, packed | 88 mm | 3.465 in |
| Length, packed | 3850 mm | 151.575 in |
| Weight, gross | 15.8 kg | 34.833 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 3414 mm | 134.41 in |
| Net Weight, without mounting kit | 9.1 kg | 20.062 lb |
| Outer Diameter | 56 mm | 2.205 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 896 MHz |
| Polarization | Vertical |
| Total Input Power, maximum | 100 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–896 |
| Gain, dBi | 11.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7.2 |
| Beam Tilt, degrees | 0 |
| USLS (First Lobe), dB | 19 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 |
| Input Power per Port, maximum, watts | 100 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 240.0 N @ 150 km/h (54.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 88 mm | 3.465 in |
| Depth, packed | 88 mm | 3.465 in |
| Length, packed | 3850 mm | 151.575 in |
| Weight, gross | 15.8 kg | 34.833 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
