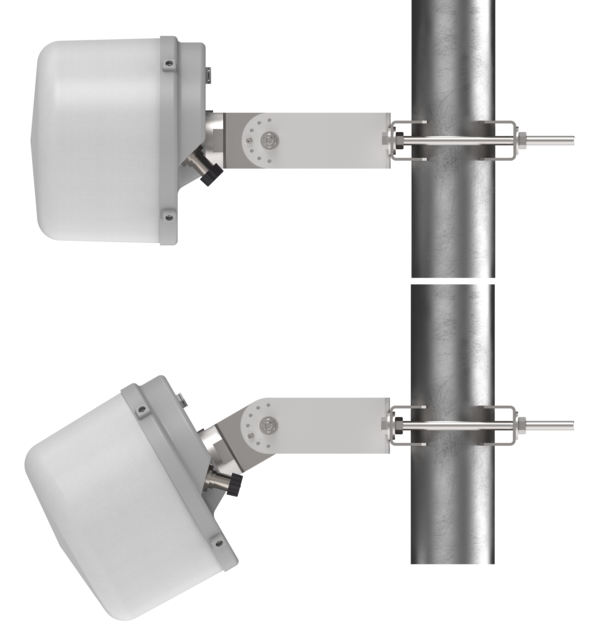

V40-010-01-A0-E
2-port Venue Antenna, 1710-2690 MHz, 40º HPBW, Fixed Tilt
Specifications
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | ASA, UV resistant |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 230 mm | 9.055 in |
| Depth | 220 mm | 8.661 in |
| Length | 230 mm | 9.055 in |
| Net Weight, without mounting kit | 2.5 kg | 5.512 lb |

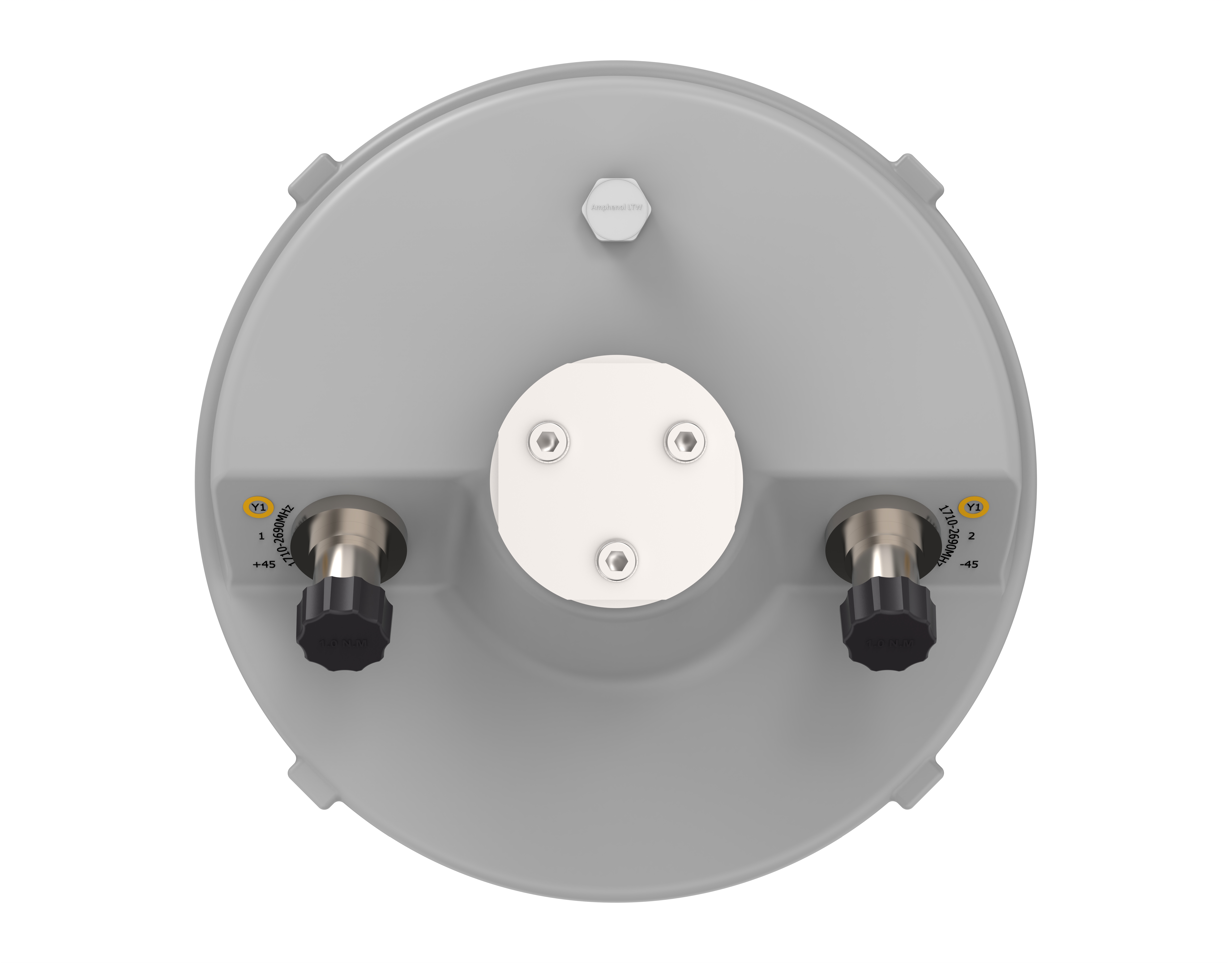

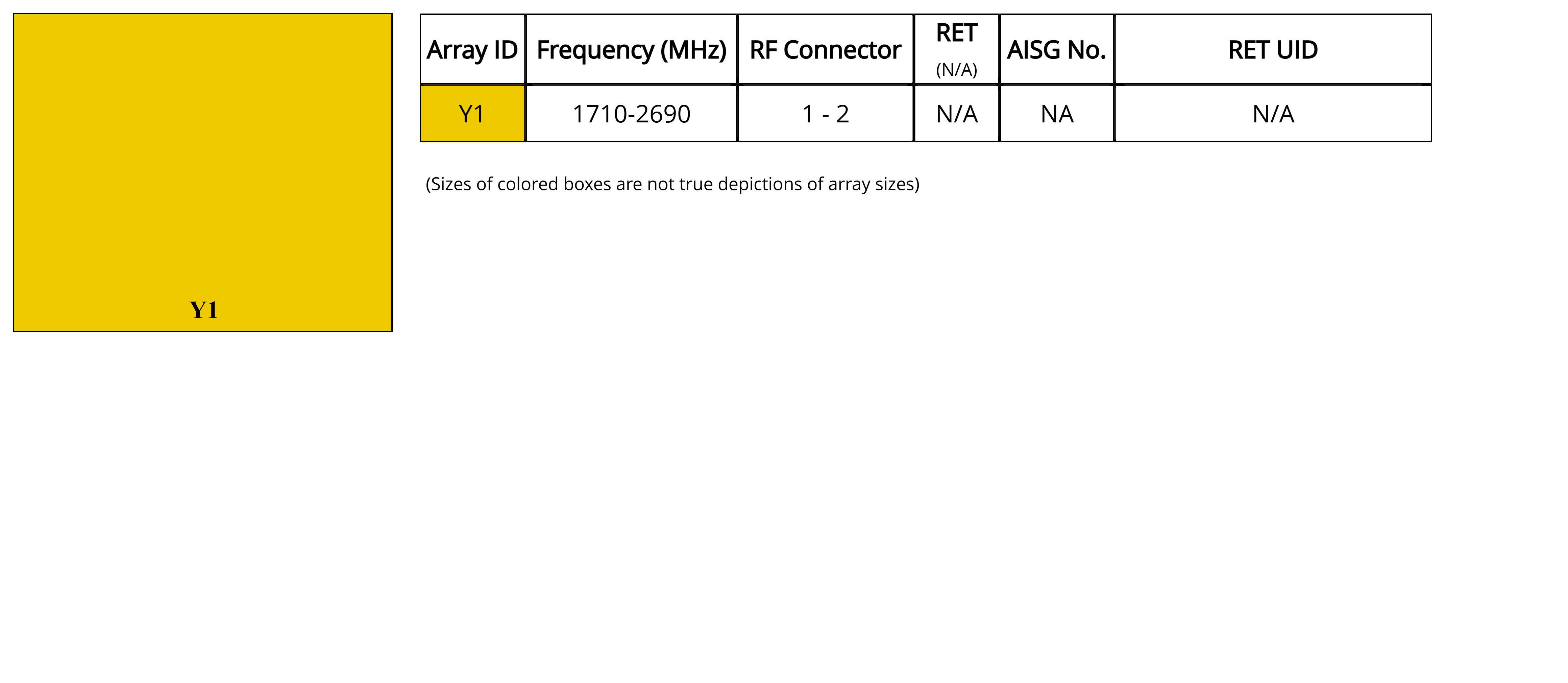

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Operating Frequency Band | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1890 | 1850–1990 | 1990–2200 | 2200–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 11.8 | 12.4 | 12.6 | 14.1 |
| Beamwidth, Horizontal, degrees | 46 | 42 | 41 | 35 |
| Beamwidth, Vertical, degrees | 47 | 45 | 40 | 35 |
| USLS (First Lobe), dB | 17 | 17 | 20 | 19 |
| Front-to-Back Ratio at 180°, dB | 27 | 31 | 33 | 37 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 31 | 29 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and weights
| Width, packed | 391 mm | 15.394 in |
| Depth, packed | 511 mm | 20.118 in |
| Length, packed | 402 mm | 15.827 in |
| Weight, gross | 6.1 kg | 13.448 lb |
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | ASA, UV resistant |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 230 mm | 9.055 in |
| Depth | 220 mm | 8.661 in |
| Length | 230 mm | 9.055 in |
| Net Weight, without mounting kit | 2.5 kg | 5.512 lb |
Electrical specifications
| Operating Frequency Band | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1890 | 1850–1990 | 1990–2200 | 2200–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 11.8 | 12.4 | 12.6 | 14.1 |
| Beamwidth, Horizontal, degrees | 46 | 42 | 41 | 35 |
| Beamwidth, Vertical, degrees | 47 | 45 | 40 | 35 |
| USLS (First Lobe), dB | 17 | 17 | 20 | 19 |
| Front-to-Back Ratio at 180°, dB | 27 | 31 | 33 | 37 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 31 | 29 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and weights
| Width, packed | 391 mm | 15.394 in |
| Depth, packed | 511 mm | 20.118 in |
| Length, packed | 402 mm | 15.827 in |
| Weight, gross | 6.1 kg | 13.448 lb |
