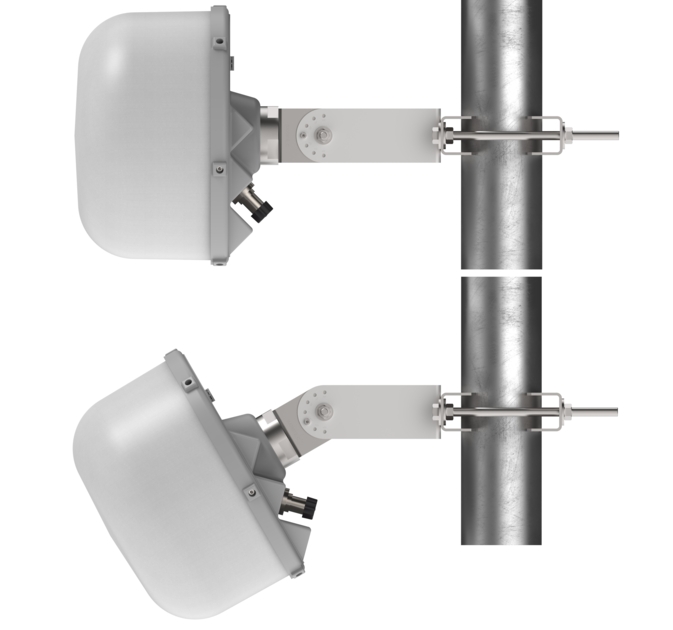

V54-001-01-A0-E

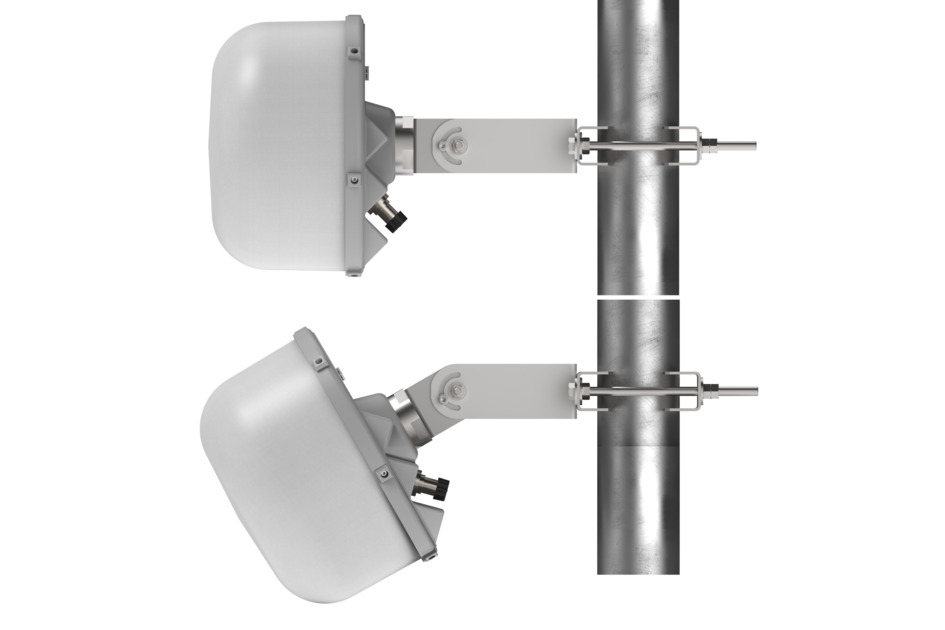

2-port Venue Antenna, 3300-4000 MHz, 54° HPBW, Fixed Tilt
Specifications
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | FRP, UV resistant |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 296 mm | 11.654 in |
| Depth | 236 mm | 9.291 in |
| Length | 296 mm | 11.654 in |
| Net Weight, without mounting kit | 2.7 kg | 5.952 lb |

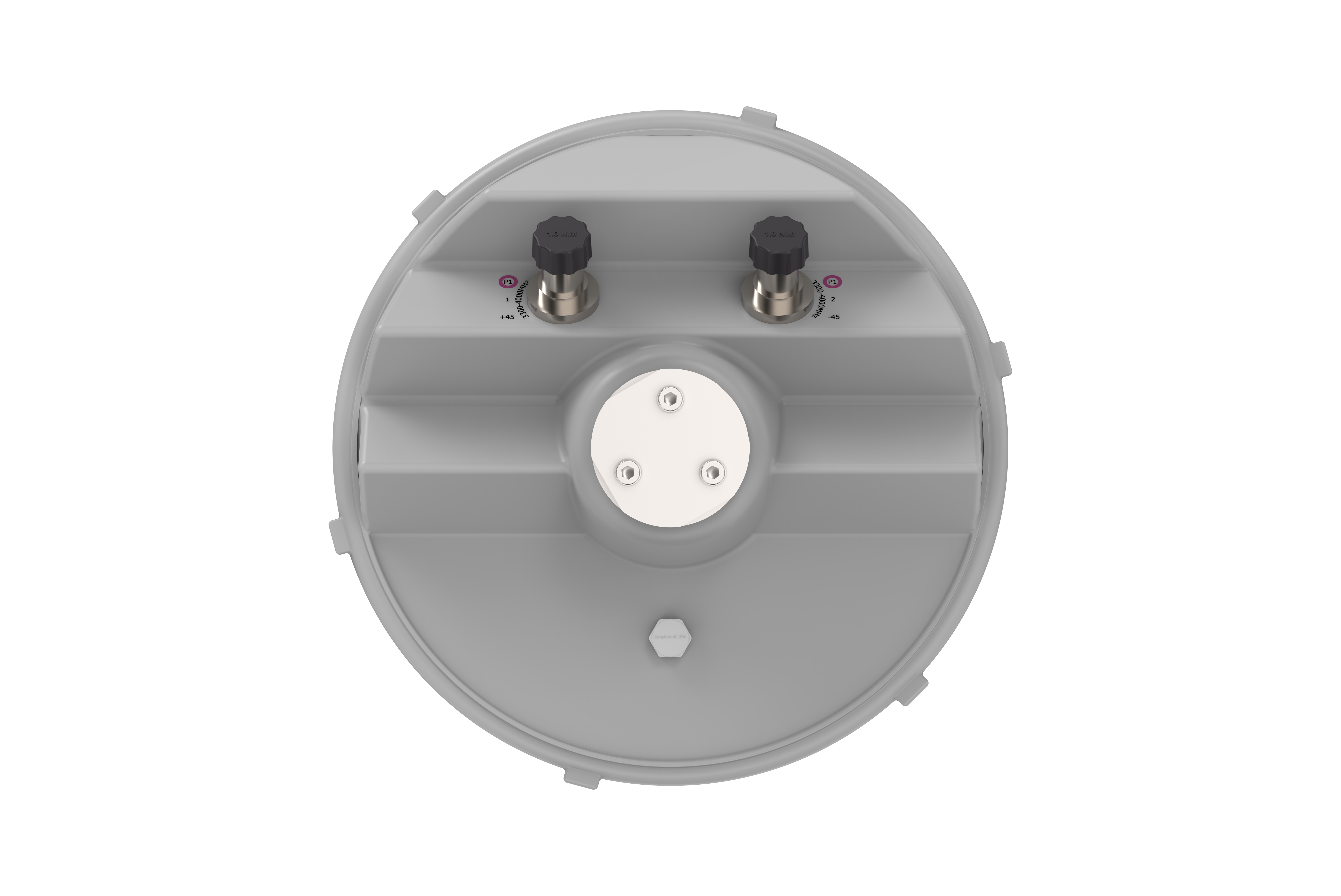

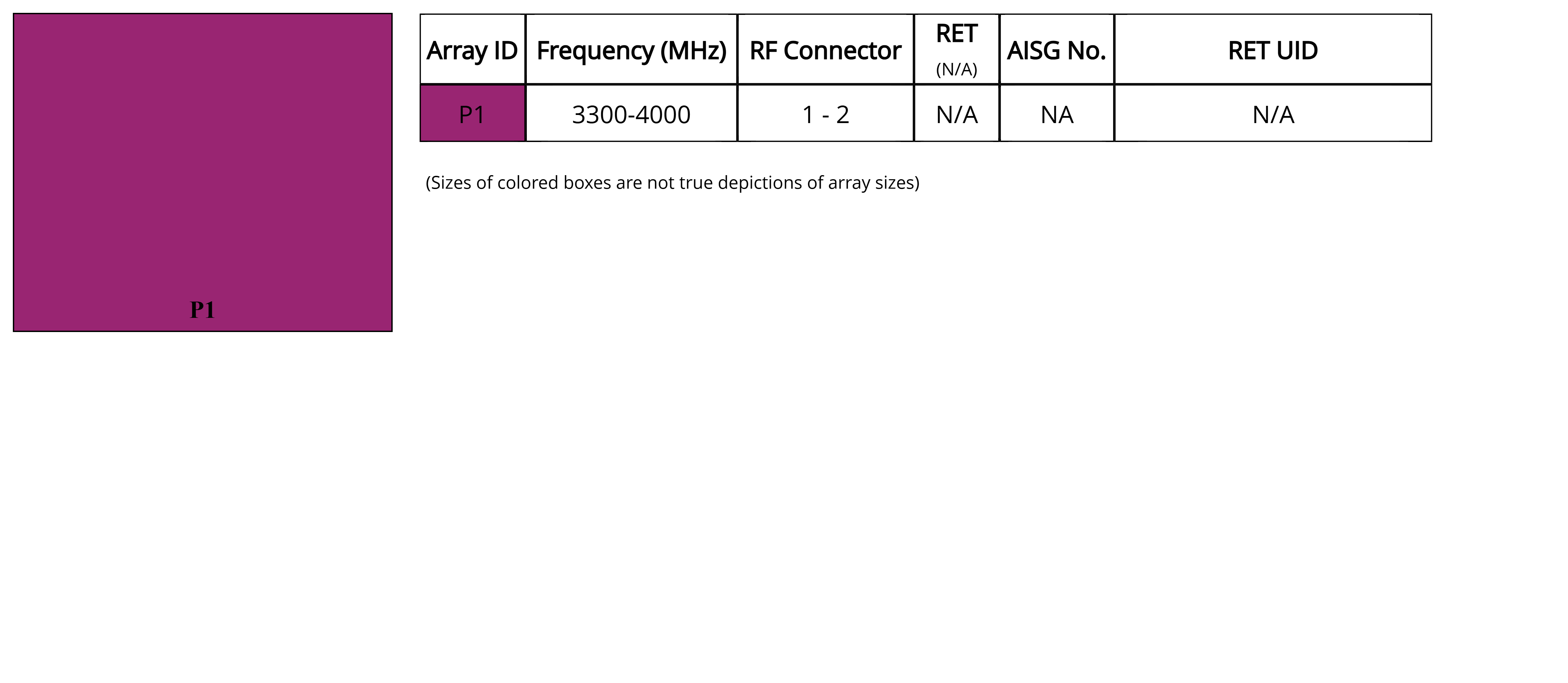

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 3300–3800 | 3550–3700 | 3700–4000 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 11.8 | 11.1 | 12.6 |
| Beamwidth, Horizontal, degrees | 53 | 54 | 40 |
| Beamwidth, Vertical, degrees | 52 | 54 | 41 |
| USLS (First Lobe), dB | 16 | 15 | 20 |
| Front-to-Back Ratio at 180°, dB | 32 | 32 | 30 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 23 | 26 | 26 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Mechanical specifications
| BASTA Version, mechanical | BASTA v12 |
Packaging and weights
| Width, packed | 381 mm | 15.000 in |
| Depth, packed | 428 mm | 16.850 in |
| Length, packed | 389 mm | 15.315 in |
| Weight, gross | 7 kg | 15.432 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | FRP, UV resistant |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 296 mm | 11.654 in |
| Depth | 236 mm | 9.291 in |
| Length | 296 mm | 11.654 in |
| Net Weight, without mounting kit | 2.7 kg | 5.952 lb |
Electrical specifications
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 3300–3800 | 3550–3700 | 3700–4000 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 11.8 | 11.1 | 12.6 |
| Beamwidth, Horizontal, degrees | 53 | 54 | 40 |
| Beamwidth, Vertical, degrees | 52 | 54 | 41 |
| USLS (First Lobe), dB | 16 | 15 | 20 |
| Front-to-Back Ratio at 180°, dB | 32 | 32 | 30 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 23 | 26 | 26 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Mechanical specifications
| BASTA Version, mechanical | BASTA v12 |
Packaging and weights
| Width, packed | 381 mm | 15.000 in |
| Depth, packed | 428 mm | 16.850 in |
| Length, packed | 389 mm | 15.315 in |
| Weight, gross | 7 kg | 15.432 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
