VVSSP-360S-M

10-port small cell antenna, 4x 1695–2690, 4x 3400-3800 and 2x 5150-5925 MHz. 360° Horizontal Beamwidth, MANUAL ELECTRICAL TILT

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Specifications

General specifications

Antenna Type	Small Cell
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	ASA
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	10
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	0
RF Connector Quantity, total	10

Length	610 mm \| 24.016 in
Net Weight, without mounting kit	13 kg \| 28.66 lb
Outer Diameter	305 mm \| 12.008 in

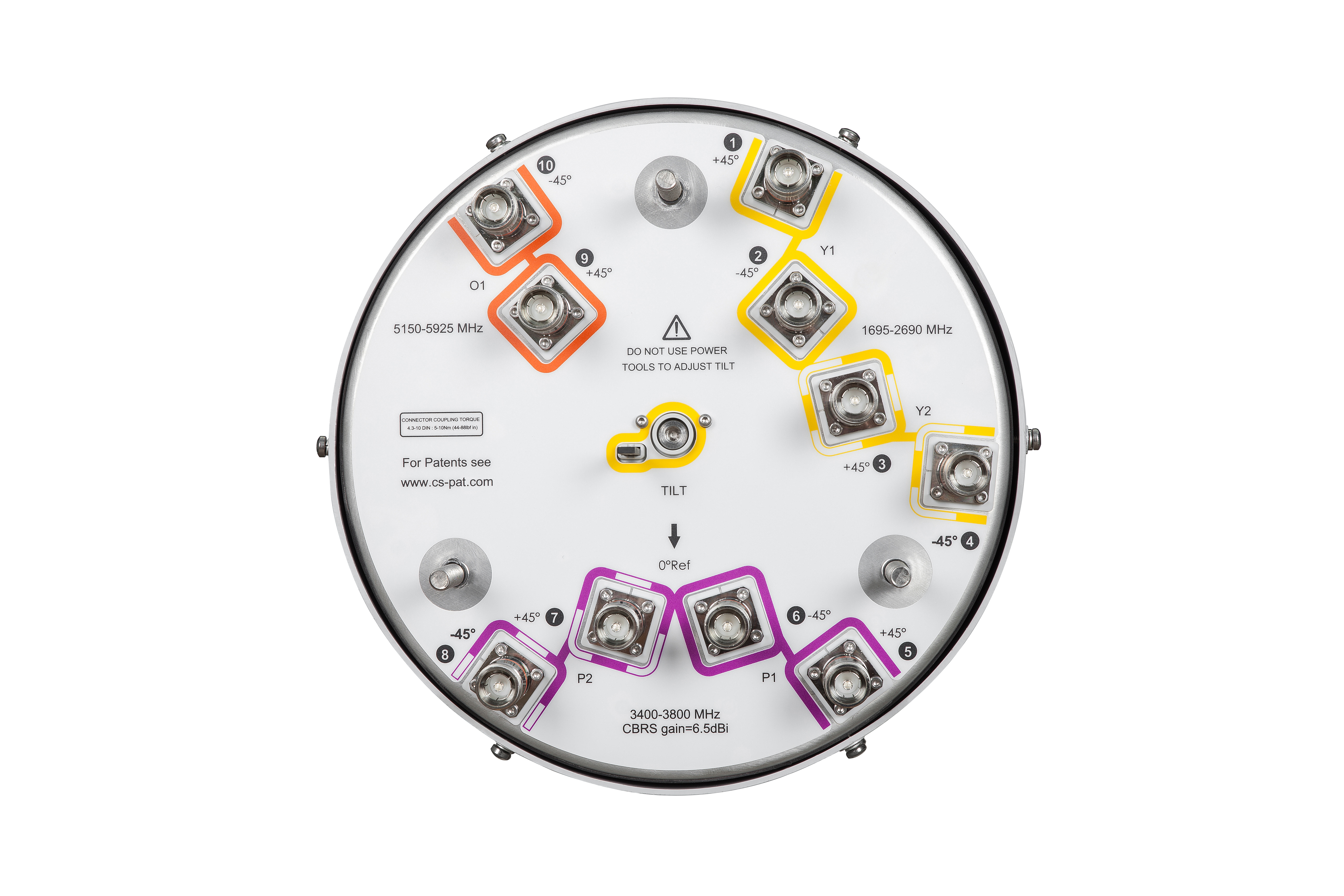

Click on image to enlarge.

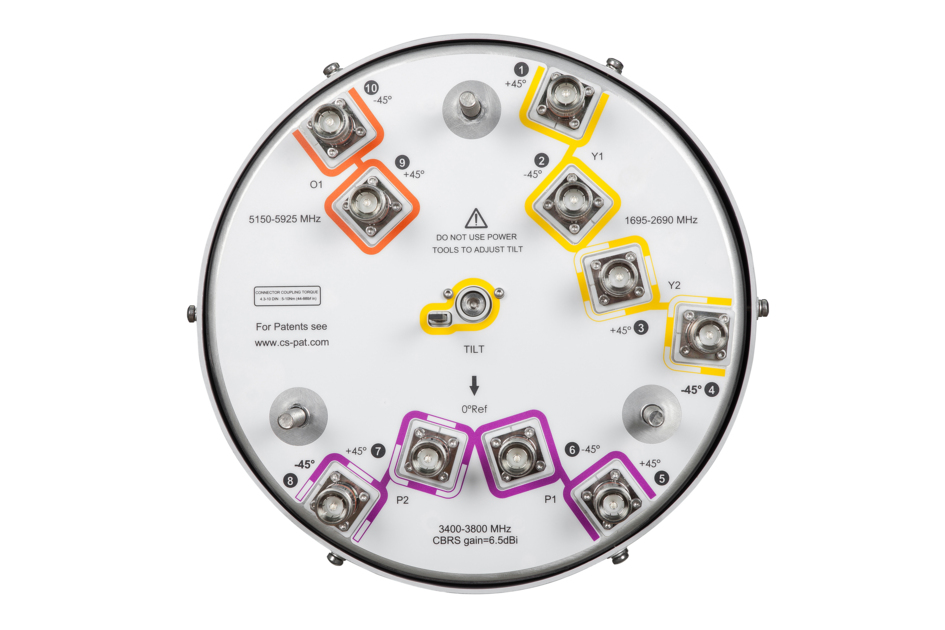

Click on image to enlarge.

Frequency Band, MHz	1695–1880	1850–1990	1920–2180	2300–2690	3400–3800	5150–5925
Gain, dBi	7.8	8.4	8.5	8.4	7.2	4.1
Beamwidth, Horizontal, degrees	360	360	360	360	360	360
Beamwidth, Vertical, degrees	21.2	19.5	18.3	15.8	30.2	25
Beam Tilt, degrees	2–10	2–10	2–10	2–10	0	0
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port at 50°C, maximum, watts	75	75	75	75	35	5

Wind Loading @ Velocity, maximum	102.0 N @ 150 km/h (22.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted

Antenna Type	Small Cell
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	ASA
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	10
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	0
RF Connector Quantity, total	10

Length	610 mm \| 24.016 in
Net Weight, without mounting kit	13 kg \| 28.66 lb
Outer Diameter	305 mm \| 12.008 in

Frequency Band, MHz	1695–1880	1850–1990	1920–2180	2300–2690	3400–3800	5150–5925
Gain, dBi	7.8	8.4	8.5	8.4	7.2	4.1
Beamwidth, Horizontal, degrees	360	360	360	360	360	360
Beamwidth, Vertical, degrees	21.2	19.5	18.3	15.8	30.2	25
Beam Tilt, degrees	2–10	2–10	2–10	2–10	0	0
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port at 50°C, maximum, watts	75	75	75	75	35	5

Wind Loading @ Velocity, maximum	102.0 N @ 150 km/h (22.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Click on image to enlarge.

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
