VVSSP-65S-R1B
10-port small cell antenna, 4x 1695–2690, 4x 3400-3800 and 2x 5150-5925 MHz. 65° HPBW, Internal RET and SBT
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 10 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Male |
| RET Interface, quantity | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | High band (1) |
| Power Consumption, active state, maximum | 1 W |
| Power Consumption, idle state, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Length | 600 mm | 23.622 in |
| Net Weight, without mounting kit | 5.9 kg | 13.007 lb |
| Outer Diameter | 200 mm | 7.874 in |
5 ghz port power table
| Click on image to enlarge. |

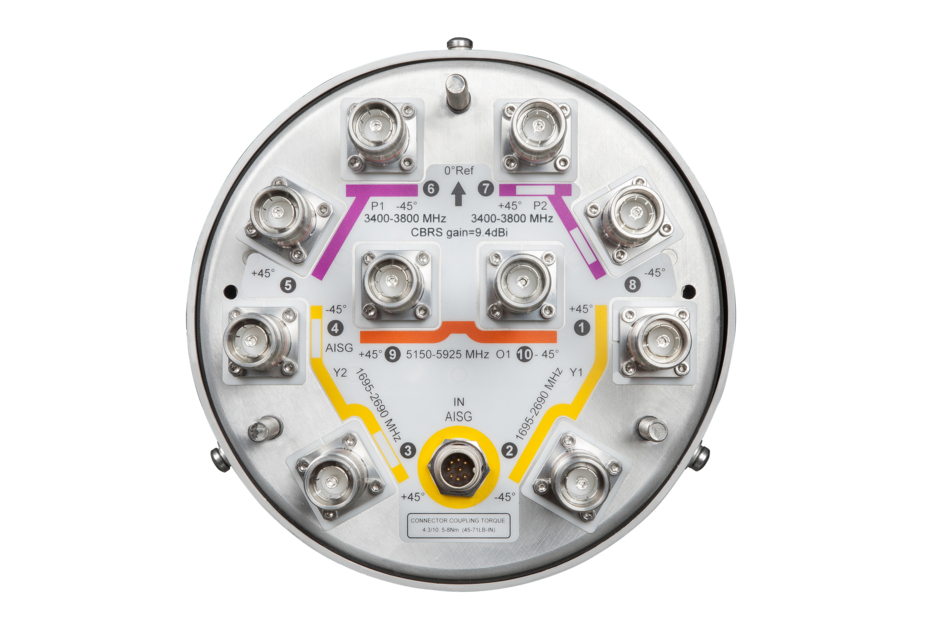

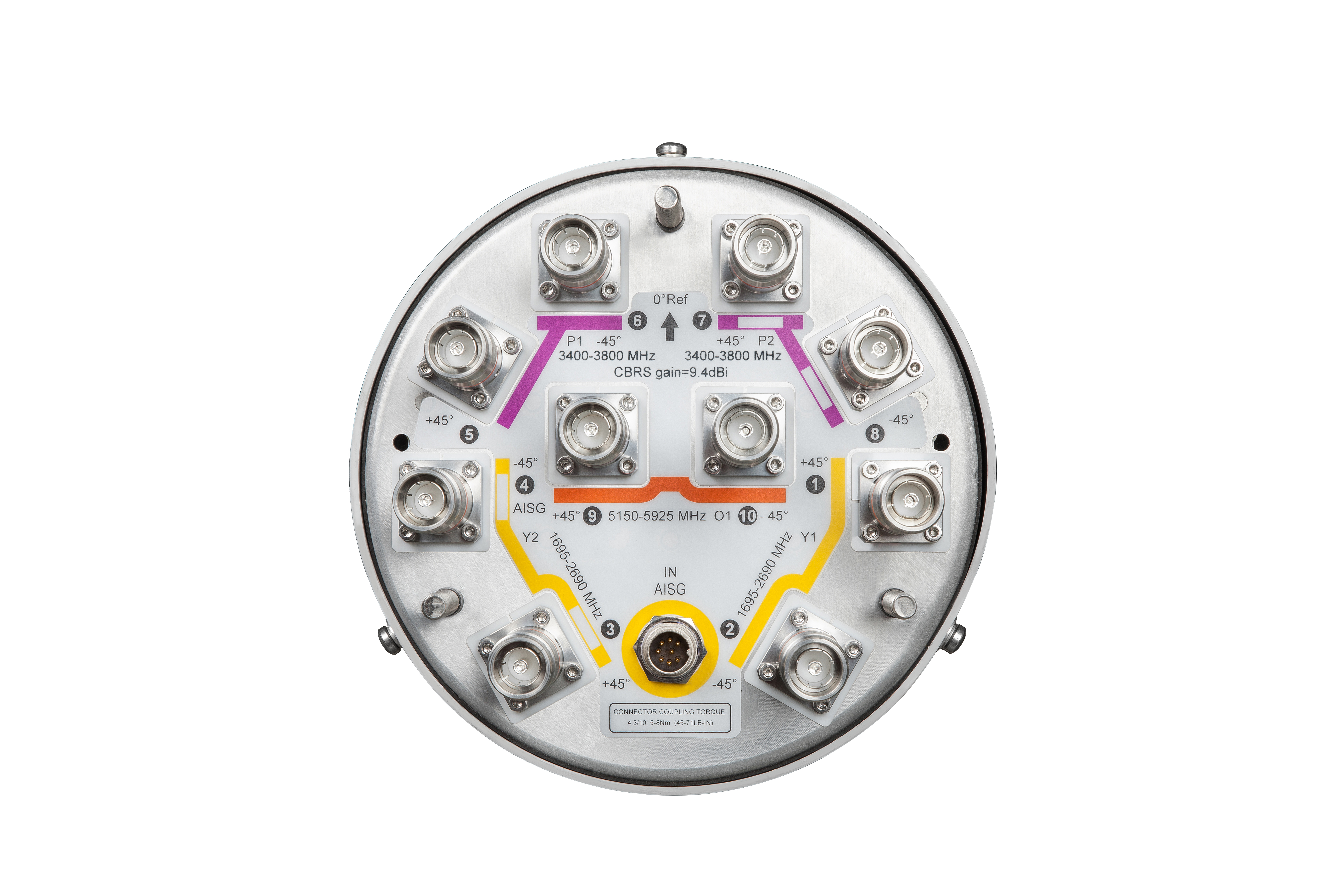

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain, dBi | 11.6 | 12.3 | 12.8 | 9.8 | 4.2 |
| Beamwidth, Horizontal, degrees | 85 | 74 | 70 | 71 | 73 |
| Beamwidth, Vertical, degrees | 22.9 | 19.7 | 16 | 32.9 | 26.3 |
| Beam Tilt, degrees | 2–10 | 2–10 | 2–10 | 7 | 4 |
| USLS (First Lobe), dB | 14 | 16 | 15 | 11 | 13 |
| Front-to-Back Ratio at 180°, dB | 25 | 28 | 26 | 25 | 26 |
| CPR at Boresight, dB | 14 | 17 | 16 | 15 | 10 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -150 | ||
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 35 | 5 |
Mechanical specifications
| Mechanical Tilt Range | 0°–18° |
| Wind Loading @ Velocity, frontal | 90.0 N @ 150 km/h (20.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 320 mm | 12.598 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 850 mm | 33.465 in |
| Weight, gross | 8.5 kg | 18.739 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 10 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Male |
| RET Interface, quantity | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | High band (1) |
| Power Consumption, active state, maximum | 1 W |
| Power Consumption, idle state, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Length | 600 mm | 23.622 in |
| Net Weight, without mounting kit | 5.9 kg | 13.007 lb |
| Outer Diameter | 200 mm | 7.874 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain, dBi | 11.6 | 12.3 | 12.8 | 9.8 | 4.2 |
| Beamwidth, Horizontal, degrees | 85 | 74 | 70 | 71 | 73 |
| Beamwidth, Vertical, degrees | 22.9 | 19.7 | 16 | 32.9 | 26.3 |
| Beam Tilt, degrees | 2–10 | 2–10 | 2–10 | 7 | 4 |
| USLS (First Lobe), dB | 14 | 16 | 15 | 11 | 13 |
| Front-to-Back Ratio at 180°, dB | 25 | 28 | 26 | 25 | 26 |
| CPR at Boresight, dB | 14 | 17 | 16 | 15 | 10 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -150 | ||
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 35 | 5 |
Mechanical specifications
| Mechanical Tilt Range | 0°–18° |
| Wind Loading @ Velocity, frontal | 90.0 N @ 150 km/h (20.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 320 mm | 12.598 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 850 mm | 33.465 in |
| Weight, gross | 8.5 kg | 18.739 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
