BSAMNT-2F

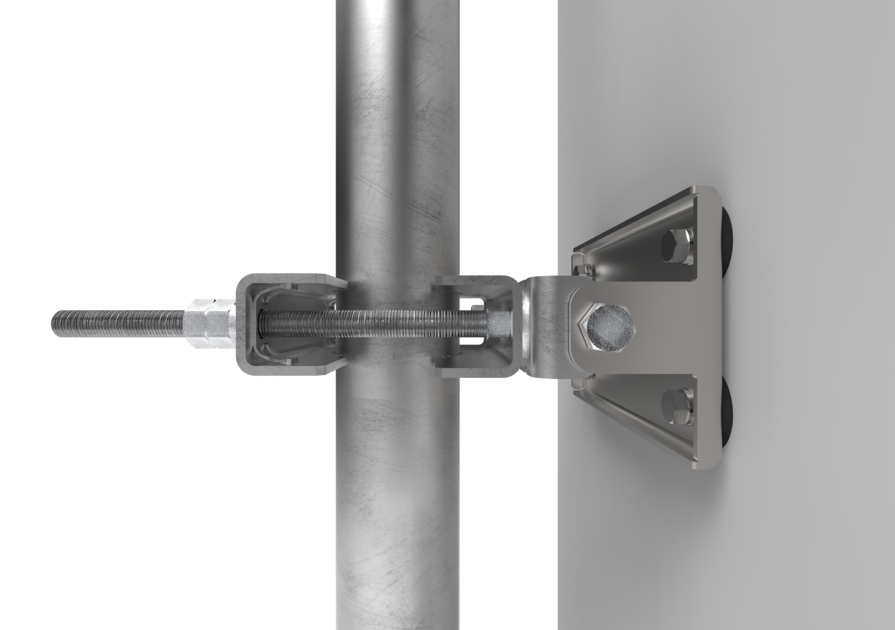

Mounting bracket for cylindrical pipe installations (60-115mm pipe diameter) for fix mechanical tilt applications.
Specifications
Product classification
| Product Type | Fixed tilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
| Weight, net | 3.8 kg | 8.378 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 4 kg | 8.818 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Fixed tilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
| Weight, net | 3.8 kg | 8.378 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 4 kg | 8.818 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
