HC-08-S

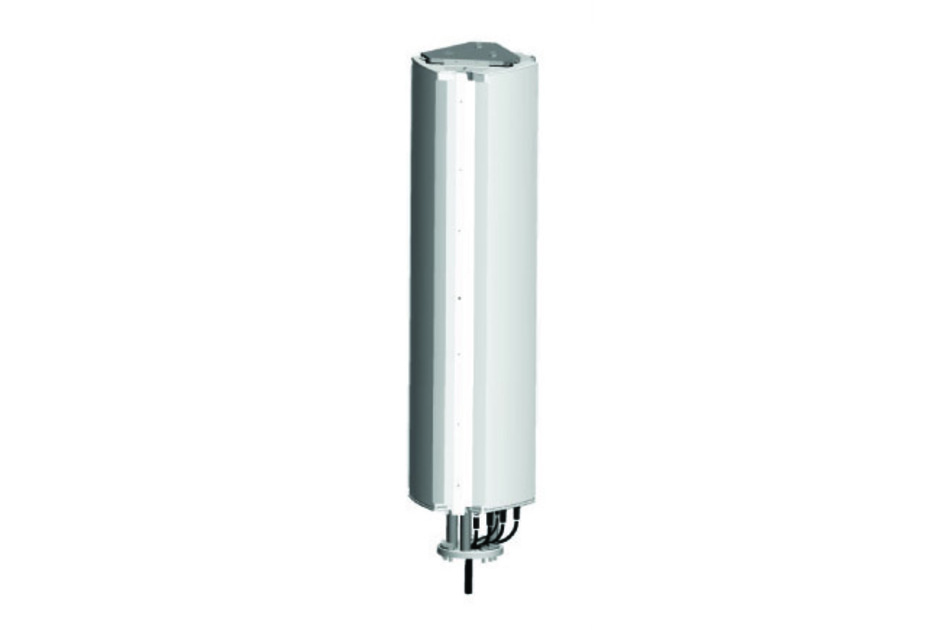

Argus® Head Frame 800 / 900MHz
Specifications
Product classification
| Product Type | Head frame |
General specifications
| Application | Outdoor |
Dimensions
| Height | 2398.01 mm | 94.41 in |
| Diameter, at zero degrees panning | 552 mm | 21.732 in |
| Antenna Panning Capability | ±15° |
| Weight, net | 132 kg | 291.010 lb |
Electrical specifications
| Lightning Protection | Chassis ground |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 1,100.0 N @ 160 km/h (247.3 lbf @ 160 km/h) |
| Wind Speed, maximum | 288 km/h (179 mph) |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Head frame |
General specifications
| Application | Outdoor |
Dimensions
| Height | 2398.01 mm | 94.41 in |
| Diameter, at zero degrees panning | 552 mm | 21.732 in |
| Antenna Panning Capability | ±15° |
| Weight, net | 132 kg | 291.010 lb |
Electrical specifications
| Lightning Protection | Chassis ground |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 1,100.0 N @ 160 km/h (247.3 lbf @ 160 km/h) |
| Wind Speed, maximum | 288 km/h (179 mph) |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
