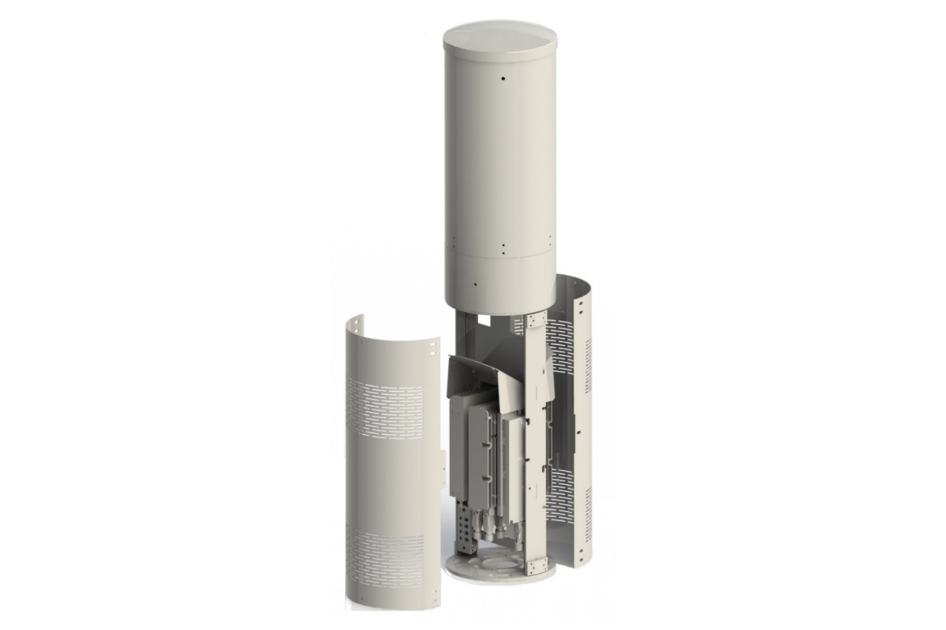

SSC-760241465N4 | 12 in Pole Top for Nokia or Samsung

Top of Pole 12in Dia Concealment Enclosure for up to two Airscale Micro radios and/or LAA/CBRS radios or one Samsung LAA or CBRS

Finish making your selections or clear them to view relevant specifications.

Download specifications

Features and benefits

-Pole Top Concealment that can accommodate most antenna manufacturers antennas. Please reach out to your ANDREW Representative for exact model number.

-Mounts directly to ANDREW poles with no additional mounting materials. Mounts to other wood and metal poles with separately purchased mounts.

-Supports (1) "RT4401-48A" or (1) "RT2201-46A" or (1) "RT4423-48A" Samsung radio with included adapter bracket. Power Supply to be located in mid pole enclosure.
-Supports (1) AHIB and (1) AZQC Nokia Radioswith included adapter bracket. Power Supply to be located in mid pole enclosure.
-Supports AWHQN with separately available kit "860664329-AMK-001"
-Supports DK antenna with separately ordered "MTM106001" bracket.
-Supports "V4S4SSP-360S-F2" and "NNV4SSP-360S-F2" antenna with separately ordered "860664552" bracket in addition to PT12-K antenna mount kit

Enclosure for holding 2 Nokia Airscale Micro LAA/CBRS radios
Orderable to mount multi-band and multi-port antennas from multiple antenna vendors
Variable pole diameter mounting kits available to mount to existing structures
Matching light pole or monopole options available

Specifications

Product classification

Product Type	Pole top
Product Brand	Metro Cell
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General specifications

Antenna Compatibility, ANDREW	ANDREW Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| DK \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| Umbra Grey (RAL 7022) \| White (RAL 9010)
Cooling	Passive Cooling
Mounting Options	Concrete poles \| Metal poles \| Non-tapered poles \| Tapered poles \| Wood poles
Radio Compatibility, Nokia	(2) Airscale micro radios (Including LAA & CBRS models) \| AHIA \| AHIB \| AWHQN \| AZQC
Radio Compatibility Samsung	RT2201-46A \| RT4401-48A \| RT4423-48A
Radios Included	None

Dimensions

Height	762.000 mm \| 30 in
Width	304.8 mm \| 12 in
Depth	304.8 mm \| 12 in
Mounting Bolt Circle Diameter	142.748 mm \| 5.62 in \| 241.3 mm \| 9.5 in

Material specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Aluminum \| Steel

Environmental specifications

Thermal Compliance

GR-487

Packaging and weights

Volume	0.056 m³ \| 1.97 ft³
Weight (unloaded)	18.144 kg \| 40 lb
