HG-MSF-158
Base product: HG-SERIES-GROMMETS

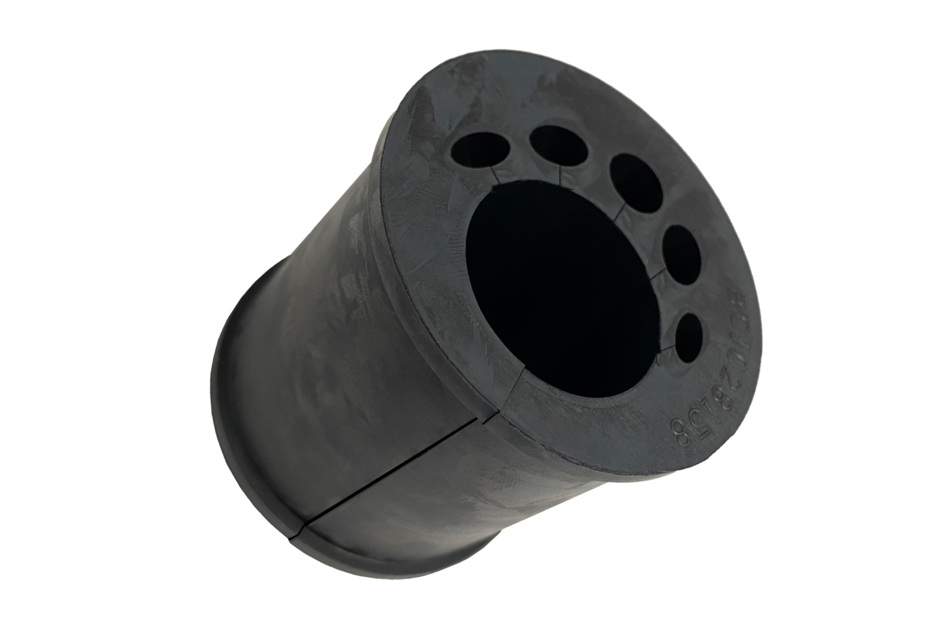

Grommet with 1 x 25 mm, 1 x 14 mm, 1 x 12 mm, 1 x 10 mm, 1 x 8 mm and 1 X 6 mm holes for 1-5/8 in SnapStack or Click-on Hanger
Specifications
Product classification
| Product Type | Multi-hole grommet |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Adapter |
| Cables per Hanger | 6 |
| Color | Black |
Dimensions
| Height | 55.626 mm | 2.19 in |
| Width | 54.864 mm | 2.16 in |
| Compatible Diameter, maximum | 24.994 mm | 0.984 in |
| Compatible Diameter, minimum | 5.842 mm | 0.23 in |
| Diameter Range (cable 1) | 6 mm |
| Diameter Range (cable 2) | 14 mm |
| Nominal Size | 1-5/8 in |
Material specifications
| Material Type | EPDM rubber |
Packaging and weights
| Packaging quantity | 10 |
| Weight, gross | 0.86 kg | 1.896 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Multi-hole grommet |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Adapter |
| Cables per Hanger | 6 |
| Color | Black |
Dimensions
| Height | 55.626 mm | 2.19 in |
| Width | 54.864 mm | 2.16 in |
| Compatible Diameter, maximum | 24.994 mm | 0.984 in |
| Compatible Diameter, minimum | 5.842 mm | 0.23 in |
| Diameter Range (cable 1) | 6 mm |
| Diameter Range (cable 2) | 14 mm |
| Nominal Size | 1-5/8 in |
Material specifications
| Material Type | EPDM rubber |
Packaging and weights
| Packaging quantity | 10 |
| Weight, gross | 0.86 kg | 1.896 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
