SSHAK-3812

Base product: SSH-SERIES-HANGERS

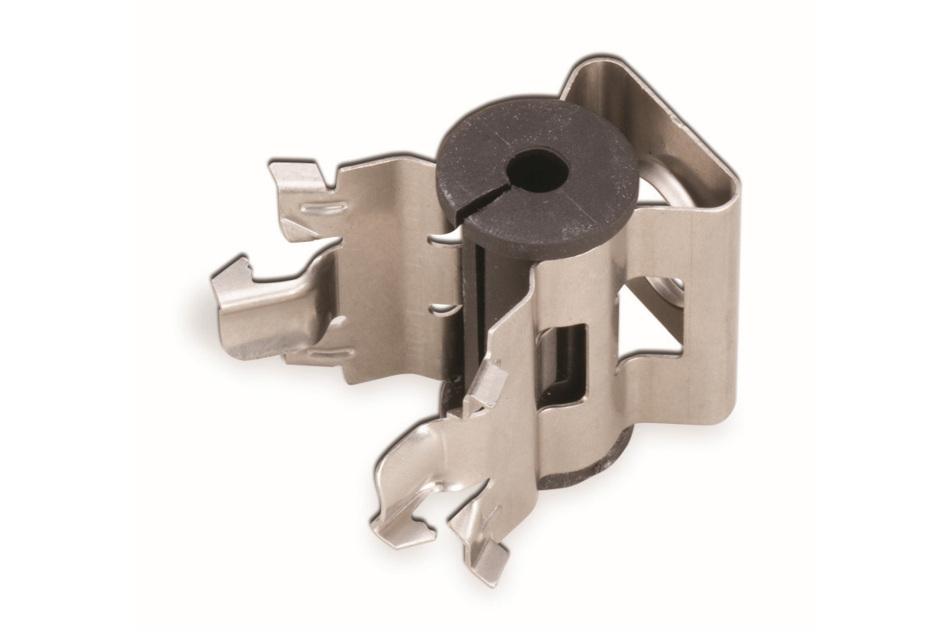

SnapStak® Hanger Kit for 3/8 in RET cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Hanger kit
Product Brand SnapStak®
Ordering Note ANDREW® non-standard product

General specifications

Cables per Hanger 1
Color Silver
Hanger Type Snap-in hanger
Mounting 3/4 in drilled cable ladder

Dimensions

Maximum Stack Height 3
Height 40.9 mm | 1.610 in
Width 22.9 mm | 0.902 in
Length 66 mm | 2.598 in
Compatible Cable Diameter Range 7–9 mm
Compatible Diameter, maximum 9 mm | 0.354 in
Compatible Diameter, minimum 7.1 mm | 0.280 in
Nominal Size 3/8 in

Electrical specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material specifications

Material Type EPDM rubber | Stainless steel

Mechanical specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and weights

Height, packed 32.5 cm | 12.795 in
Width, packed 13.5 cm | 5.315 in
Length, packed 15.5 cm | 6.102 in
Packaging quantity 10
Weight, gross 1.4 kg | 3.086 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Hanger kit
Product Brand SnapStak®
Ordering Note ANDREW® non-standard product

General specifications

Cables per Hanger 1
Color Silver
Hanger Type Snap-in hanger
Mounting 3/4 in drilled cable ladder

Dimensions

Maximum Stack Height 3
Height 40.9 mm | 1.610 in
Width 22.9 mm | 0.902 in
Length 66 mm | 2.598 in
Compatible Cable Diameter Range 7–9 mm
Compatible Diameter, maximum 9 mm | 0.354 in
Compatible Diameter, minimum 7.1 mm | 0.280 in
Nominal Size 3/8 in

Electrical specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material specifications

Material Type EPDM rubber | Stainless steel

Mechanical specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight

Packaging and weights

Height, packed 32.5 cm | 12.795 in
Width, packed 13.5 cm | 5.315 in
Length, packed 15.5 cm | 6.102 in
Packaging quantity 10
Weight, gross 1.4 kg | 3.086 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
