CL-0920-U
Base product: CABLE-LADDER
Universal Cable Ladder Kit, 30 in x 20 ft, 9-hole rung
Specifications
Product classification
| Product Type | Ladder kit |
General specifications
| Cable Runs, quantity | 9 |
| Mounting | Round and angle legs |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 762 mm | 30 in |
| Length | 6096 mm | 240 in |

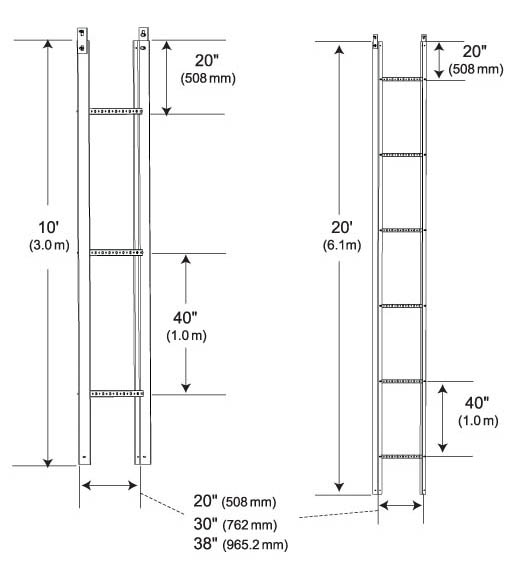

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment kits | Ladder | Splice plates |
| Packaging quantity | 1 |
| Weight, net | 52.9 kg | 116.624 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Ladder kit |
General specifications
| Cable Runs, quantity | 9 |
| Mounting | Round and angle legs |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 762 mm | 30 in |
| Length | 6096 mm | 240 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment kits | Ladder | Splice plates |
| Packaging quantity | 1 |
| Weight, net | 52.9 kg | 116.624 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
