MT-F1542-11

Base product: ROOF-CABLE-SUPPORTS

Rooftop Coaxial Cable Bridge Kit, for four coaxial cable runs, 12-gauge cover

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Bridge kit

General specifications

Cable Runs, quantity 4
Hole, quantity 4
Mounting Non-penetrating

Dimensions

Height 177.8 mm | 7 in
Width 508 mm | 20 in
Length 2438.4 mm | 96 in
Pipe Outer Diameter 60.96 mm | 2.4 in
Hole Size 3/4 in

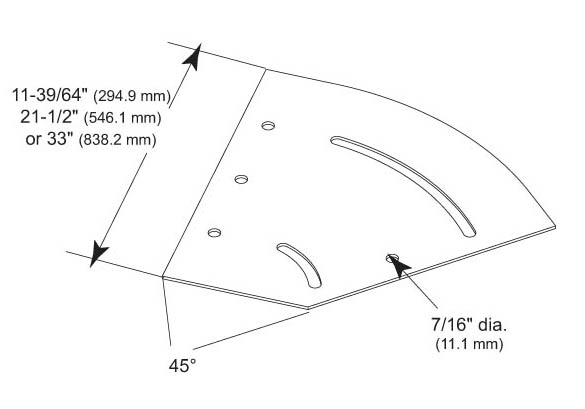

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Channel | Hardware | Sleepers (3)
Packaging quantity 1
Weight, net 34.8 kg | 76.721 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
