MT-F1585
Base product: ROOF-CABLE-SUPPORTS
PVC Roof Sleeper, no holes, 8 ft
Specifications
Product classification
| Product Type | Roof sleeper |
General specifications
| Cable Runs, quantity | 0 |
| Mounting | Non-penetrating |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 101.6 mm | 4 in |
| Length | 2438.4 mm | 96 in |

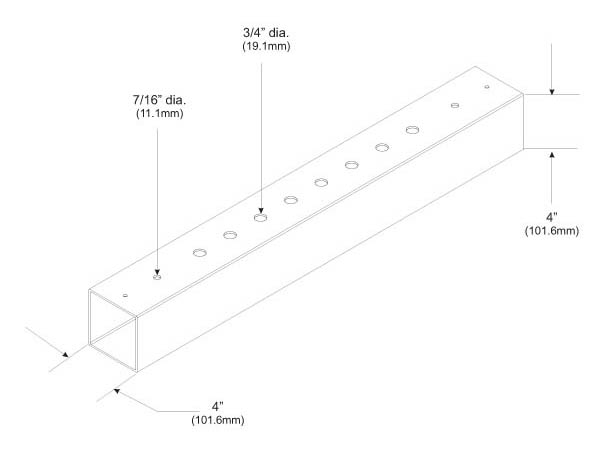

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | PVC |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Sleeper |
| Packaging quantity | 1 |
| Weight, net | 6.5 kg | 14.33 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Roof sleeper |
General specifications
| Cable Runs, quantity | 0 |
| Mounting | Non-penetrating |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 101.6 mm | 4 in |
| Length | 2438.4 mm | 96 in |
Material specifications
| Material Type | PVC |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Sleeper |
| Packaging quantity | 1 |
| Weight, net | 6.5 kg | 14.33 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
