MT-F1607
Base product: WALL-CABLE-SUPPORTS
Splice for Wall Kit, for four coaxial cable runs
Specifications
Product classification
| Product Type | Splice kit |
General specifications
| Cable Runs, quantity | 4 |
| Mounting | Wall coaxial cable support kits |
Dimensions
| Height | 127 mm | 5 in |
| Width | 127 mm | 5 in |
| Length | 304.8 mm | 12 in |

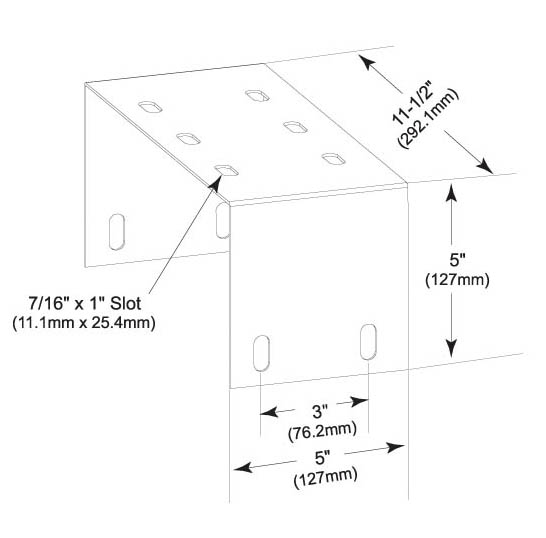

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Hardware | Splices |
| Packaging quantity | 1 |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Splice kit |
General specifications
| Cable Runs, quantity | 4 |
| Mounting | Wall coaxial cable support kits |
Dimensions
| Height | 127 mm | 5 in |
| Width | 127 mm | 5 in |
| Length | 304.8 mm | 12 in |
Material specifications
| Material Type | Galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Hardware | Splices |
| Packaging quantity | 1 |
| Weight, net | 1.1 kg | 2.425 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
