MT-F1703

Base product: ROOF-CABLE-SUPPORTS

Extension Kit for Bridge Kit for four coaxial cable runs

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Bridge kit

General specifications

Cable Runs, quantity 4
Mounting Rooftop bridge kits

Dimensions

Height 508 mm | 20 in
Width 304.8 mm | 12 in
Length 1016 mm | 40 in

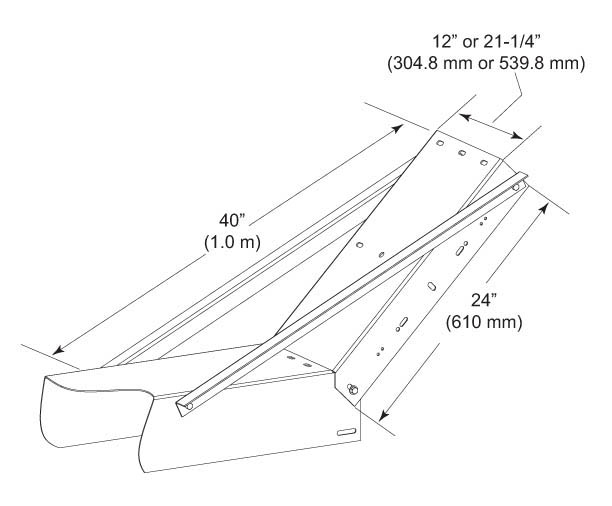

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Extension | Hardware
Packaging quantity 1
Weight, net 13.6 kg | 29.983 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Bridge kit

General specifications

Cable Runs, quantity 4
Mounting Rooftop bridge kits

Dimensions

Height 508 mm | 20 in
Width 304.8 mm | 12 in
Length 1016 mm | 40 in

Material specifications

Material Type Galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Extension | Hardware
Packaging quantity 1
Weight, net 13.6 kg | 29.983 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Assembly drawing

Extension Kit, for 4-run Bridge Kit
