RM-USBG
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Universal Round Member Support Bracket for six coaxial cable runs
Specifications
Product classification
| Product Type | Round Member Support Bracket |
General specifications
| Cable Runs, quantity | 6 |
| Hole, quantity | 6 |
| Mounting | Round member |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 431.8 mm | 17 in |
| Length | 254 mm | 10 in |
| Hole Size | 3/4 in | 7/16 in |

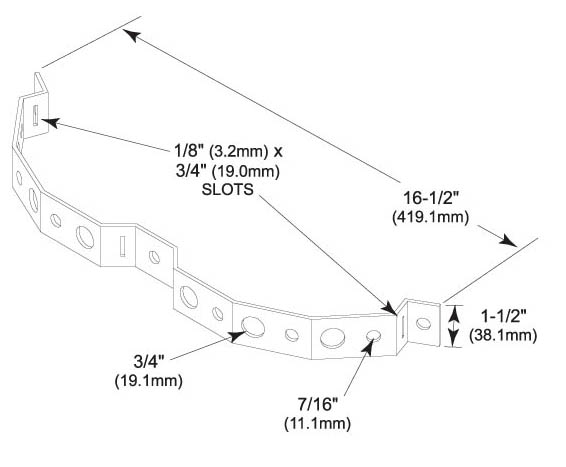

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 10 |
| Weight, net | 4.1 kg | 9.039 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Product Type | Round Member Support Bracket |
General specifications
| Cable Runs, quantity | 6 |
| Hole, quantity | 6 |
| Mounting | Round member |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 431.8 mm | 17 in |
| Length | 254 mm | 10 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 10 |
| Weight, net | 4.1 kg | 9.039 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
