RM-USBG-3
Base product: WGB-AND-MISC-CABLE-SUPPORTS
Universal Round Member Support Bracket for three coaxial cable runs
Specifications
Product classification
| Product Type | Round Member Support Bracket |
General specifications
| Cable Runs, quantity | 3 |
| Hole, quantity | 3 |
| Mounting | Round member |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 254 mm | 10 in |
| Length | 152.4 mm | 6 in |
| Hole Size | 3/4 in | 7/16 in |

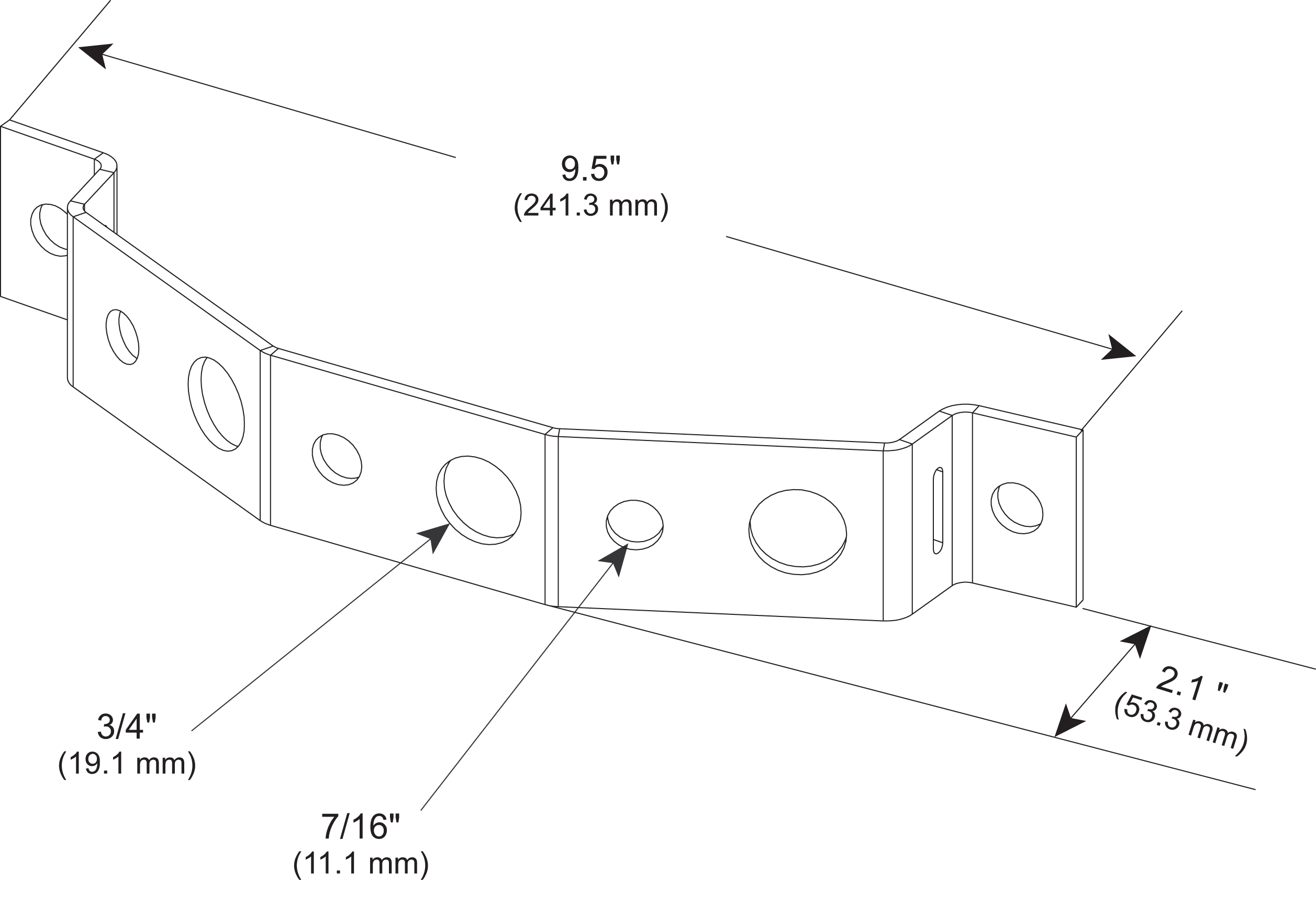

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 10 |
| Weight, net | 2.3 kg | 5.071 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Round Member Support Bracket |
General specifications
| Cable Runs, quantity | 3 |
| Hole, quantity | 3 |
| Mounting | Round member |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 254 mm | 10 in |
| Length | 152.4 mm | 6 in |
| Hole Size | 3/4 in | 7/16 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets |
| Packaging quantity | 10 |
| Weight, net | 2.3 kg | 5.071 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
