WB-TK24D

Base product: WGB-AND-MISC-CABLE-SUPPORTS

Trapeze Kit, 24 in wide, two rungs

Finish making your selections or clear them to view relevant specifications.
Find a partner

Product classification

Product Type Trapeze kit

General specifications

Application Waveguide bridge kit, 24 in
Cable Runs, quantity 28
Hole, quantity 24
Mounting Waveguide bridge channel
Rungs, quantity 1

Dimensions

Height 101.6 mm | 4 in
Width 609.6 mm | 24 in
Length 152.4 mm | 6 in
Hole Size 3/4 in | 7/16 in

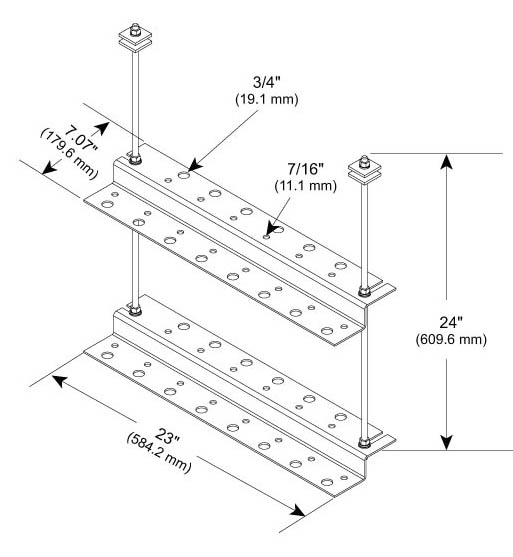

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Hardware | Threaded rod | Z-bracket
Packaging quantity 1
Weight, net 5.9 kg | 13.007 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Trapeze kit

General specifications

Application Waveguide bridge kit, 24 in
Cable Runs, quantity 28
Hole, quantity 24
Mounting Waveguide bridge channel
Rungs, quantity 1

Dimensions

Height 101.6 mm | 4 in
Width 609.6 mm | 24 in
Length 152.4 mm | 6 in
Hole Size 3/4 in | 7/16 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Hardware | Threaded rod | Z-bracket
Packaging quantity 1
Weight, net 5.9 kg | 13.007 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

Z-Bracket Trapeze Kit, 24 in, 2 rungs
