MTC9748
Base product: GROUNDING-BUSS-SERIES

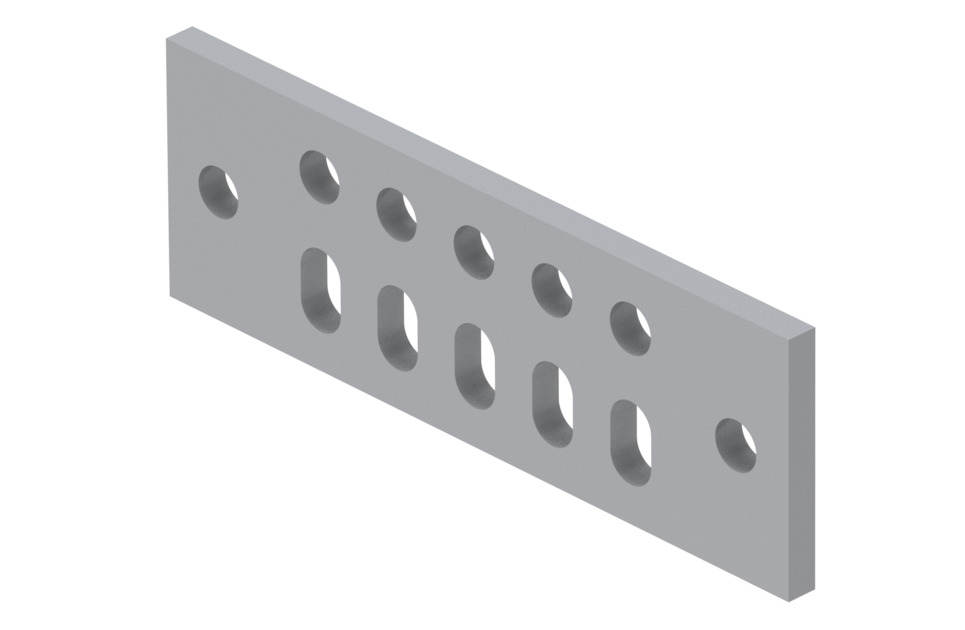

Tinned Copper Ground Buss Bar, 1/4 in x 2 in x 6 in (Buss Bar Only)
Specifications
Product classification
| Product Type | Grounding bar |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
Dimensions
| Height | 50.8 mm | 2 in |
| Length | 254 mm | 10 in |
| Material Thickness | 6.35 mm | 0.25 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material specifications
| Material Type | Tinned copper |
Packaging and weights
| Height, packed | 406.4 mm | 16 in |
| Included | Grounding bar |
| Packaging quantity | 1 |
| Weight, gross | 0.4 kg | 0.882 lb |
Product classification
| Product Type | Grounding bar |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
Dimensions
| Height | 50.8 mm | 2 in |
| Length | 254 mm | 10 in |
| Material Thickness | 6.35 mm | 0.25 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material specifications
| Material Type | Tinned copper |
Packaging and weights
| Height, packed | 406.4 mm | 16 in |
| Included | Grounding bar |
| Packaging quantity | 1 |
| Weight, gross | 0.4 kg | 0.882 lb |
