UGB-0412-G
Base product: GROUNDING-BUSS-SERIES

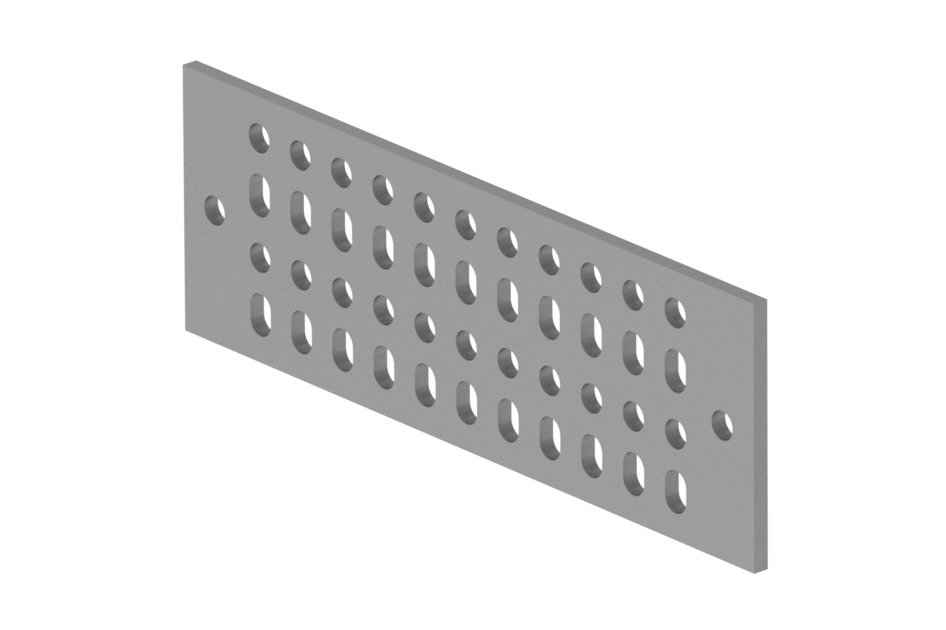

Galvanized Ground Buss Bar (no HW), 1/4 in x 4 in x 12 in
Specifications
Product classification
| Product Type | Grounding bar |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
Dimensions
| Height | 101.600 mm | 4 in |
| Length | 304.800 mm | 12 in |
| Material Thickness | 6.350 mm | 0.25 in |
| Hole Size | 7/16 in | 7/16 in x 5/8 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Grounding bar |
| Packaging quantity | 1 |
Product classification
| Product Type | Grounding bar |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
Dimensions
| Height | 101.600 mm | 4 in |
| Length | 304.800 mm | 12 in |
| Material Thickness | 6.350 mm | 0.25 in |
| Hole Size | 7/16 in | 7/16 in x 5/8 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Grounding bar |
| Packaging quantity | 1 |
