CS-PWRCN

Base product: COLD-SHRINK-SERIES

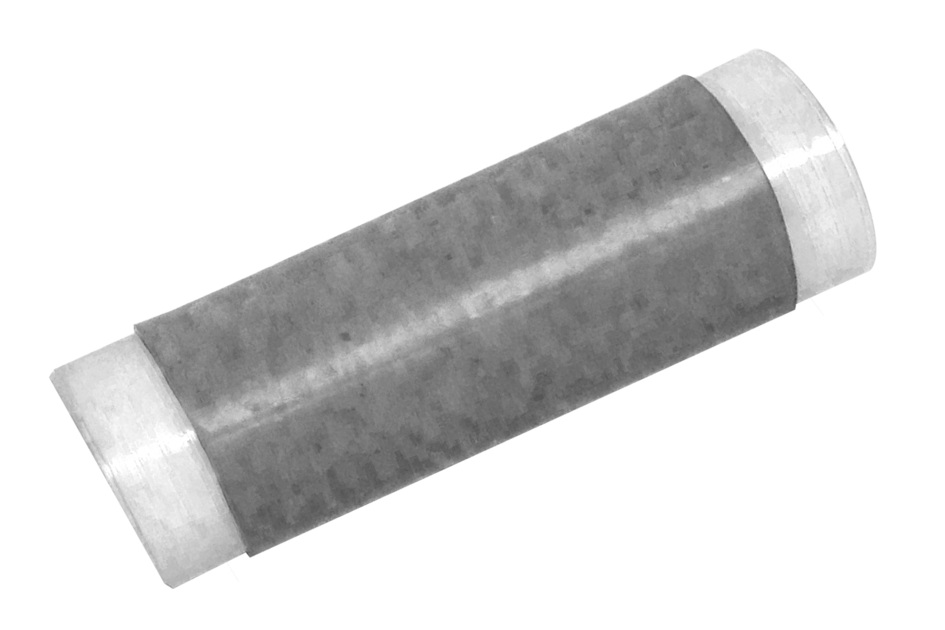

Cold shrink kit for Ericsson RRU power connector or for 27.99 mm (1.1 in) cables to 10.54 mm (0.41 in) connections

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Cold shrink kit
Product Brand HELIAX®
Ordering Note ANDREW® standard product (Global)

General specifications

Application Protects connector from corrosion
Color Gray

Dimensions

Length 152.4 mm | 6 in
Cable Diameter for Seal, maximum 27.99 mm | 1.102 in
Cable Diameter for Seal, minimum 10.54 mm | 0.415 in

Material specifications

Material Type Silicone rubber

Environmental specifications

UV Resistance Test Method UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp
UV Resistance, minimum with no degradation ≥2000 hours
Weather Resistance Test Method 04AS00-03.6.0 | IEC 60529:2001, IP67 | MIL-STD-1344A, Method 1002

Packaging and weights

Height, packed 50.8 mm | 2 in
Width, packed 50.8 mm | 2 in
Length, packed 177.8 mm | 7 in
Included One Silicone Rubber Tube
Packaging quantity 1
Weight, gross 0.08 kg | 0.176 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Cold shrink kit
Product Brand HELIAX®
Ordering Note ANDREW® standard product (Global)

General specifications

Application Protects connector from corrosion
Color Gray

Dimensions

Length 152.4 mm | 6 in
Cable Diameter for Seal, maximum 27.99 mm | 1.102 in
Cable Diameter for Seal, minimum 10.54 mm | 0.415 in

Material specifications

Material Type Silicone rubber

Environmental specifications

UV Resistance Test Method UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp
UV Resistance, minimum with no degradation ≥2000 hours
Weather Resistance Test Method 04AS00-03.6.0 | IEC 60529:2001, IP67 | MIL-STD-1344A, Method 1002

Packaging and weights

Height, packed 50.8 mm | 2 in
Width, packed 50.8 mm | 2 in
Length, packed 177.8 mm | 7 in
Included One Silicone Rubber Tube
Packaging quantity 1
Weight, gross 0.08 kg | 0.176 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Installation instruction

Cold shrink kit CS-PWRCN
