FA-FWS-AOPC
Base product: FA-SERIES-SHROUD-BOOTS

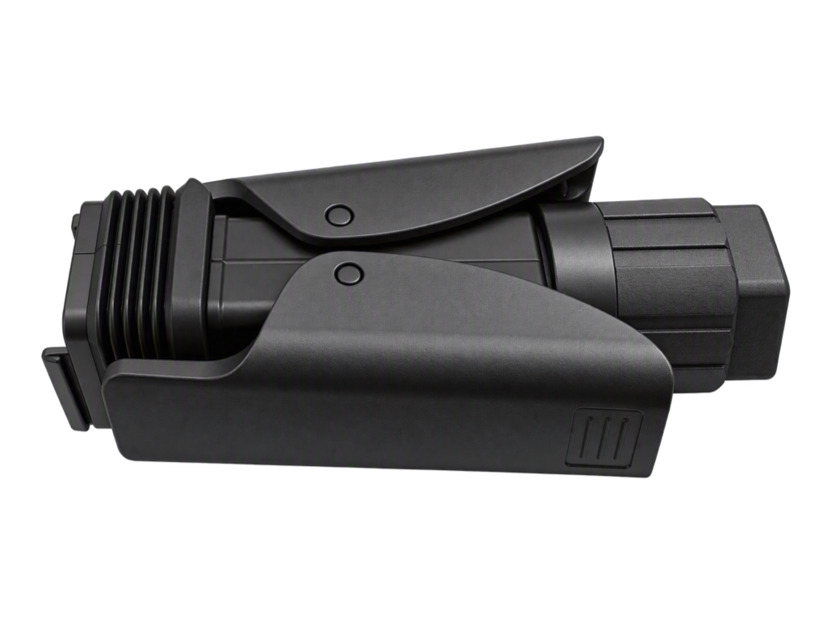

HELIAX® Weatherproofing Shroud Boot for NOKIA AOPC, protection for fiber connectors from dust and water for RRUs and FTTA connectivity
Specifications
Product classification
| Product Type | Weatherproofing shroud |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides moisture seal for fiber connections |
| Color | Black | Gray |
Dimensions
| Cable Diameter for Seal, maximum | 4.8 mm | 0.189 in |
| Cable Diameter for Seal, minimum | 7.2 mm | 0.283 in |
Material specifications
| Material Type | Engineered plastic |
Environmental specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Weather Resistance Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Packaging quantity | 1 |
Product classification
| Product Type | Weatherproofing shroud |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides moisture seal for fiber connections |
| Color | Black | Gray |
Dimensions
| Cable Diameter for Seal, maximum | 4.8 mm | 0.189 in |
| Cable Diameter for Seal, minimum | 7.2 mm | 0.283 in |
Material specifications
| Material Type | Engineered plastic |
Environmental specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Weather Resistance Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Packaging quantity | 1 |
