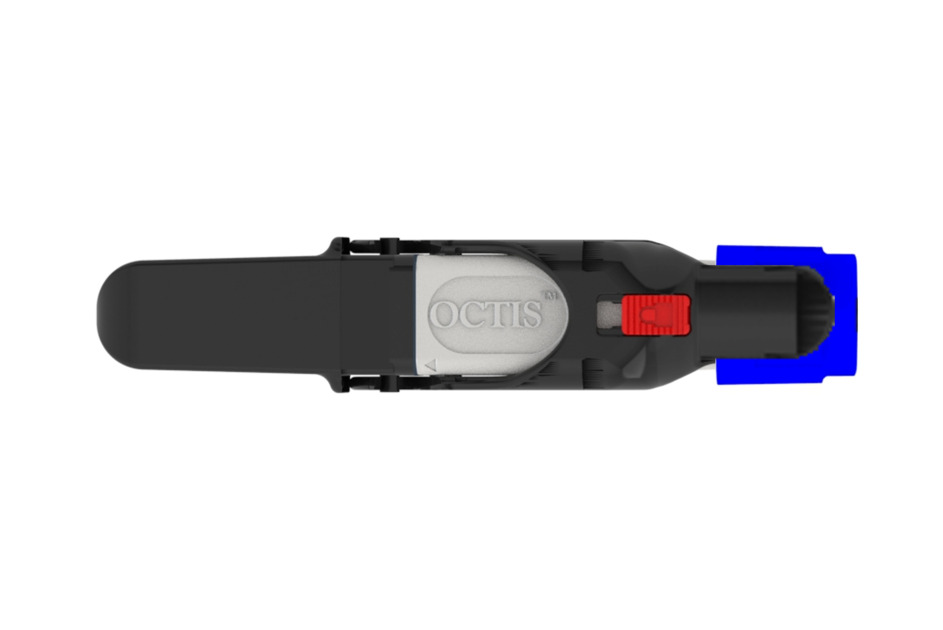

FA-FWS-OCTIS
Base product: FA-SERIES-SHROUD-BOOTS
HELIAX® Weatherproofing Shroud Boot for SFP+ OCTIS, protection for fiber connectors from dust and water for RRUs and FTTA connectivity, compatible with OCTIS fiber interfaces, dust cap included
Specifications
Product classification
| Product Type | Weatherproofing shroud |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides moisture seal for fiber connections |
| Color | Black | Blue | Gray |
Dimensions
| Width | 26.7 mm | 1.051 in |
| Length | 127 mm | 5.000 in |
| Cable Diameter for Seal, maximum | 4.8 mm | 0.189 in |
| Cable Diameter for Seal, minimum | 7.8 mm | 0.307 in |
Material specifications
| Material Type | Engineered plastic |
Environmental specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Weather Resistance Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Dust cap |
| Packaging quantity | 1 |
Product classification
| Product Type | Weatherproofing shroud |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides moisture seal for fiber connections |
| Color | Black | Blue | Gray |
Dimensions
| Width | 26.7 mm | 1.051 in |
| Length | 127 mm | 5.000 in |
| Cable Diameter for Seal, maximum | 4.8 mm | 0.189 in |
| Cable Diameter for Seal, minimum | 7.8 mm | 0.307 in |
Material specifications
| Material Type | Engineered plastic |
Environmental specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Weather Resistance Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Dust cap |
| Packaging quantity | 1 |
