FT-TB
Base product: WEATHERPROOFING-TAPE-SERIES

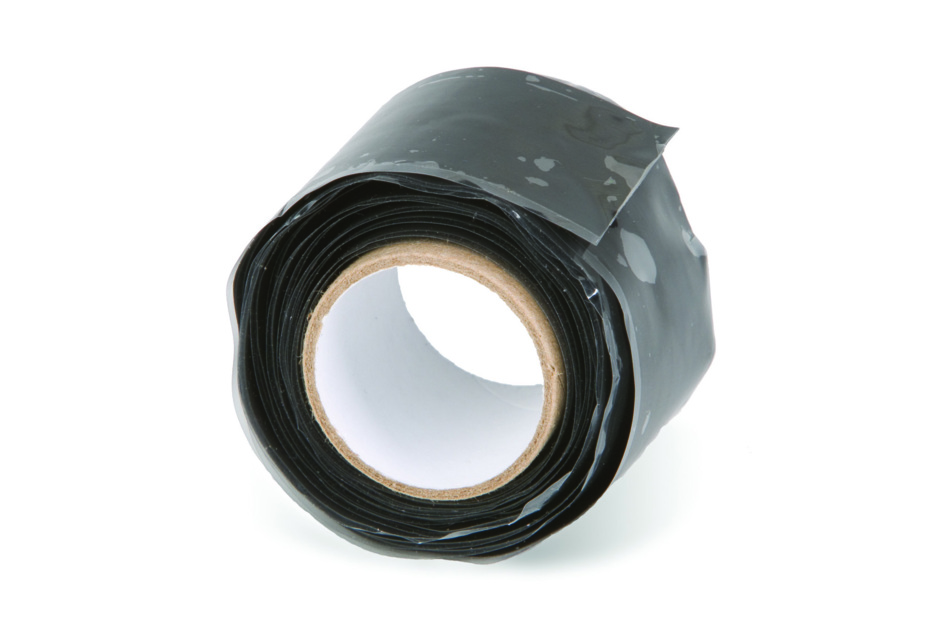

Black Self-fusing Tape, 15 ft
Specifications
Product classification
| Product Type | Weatherproofing tape |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides additional moisture seal for cable connections |
| Applications per Kit | Four 1/2 in–1/2 in | One 1/2 in–2-1/4 in | Two 1/2 in–7/8 in | Two 1/2 in–7/8 in to device |
| Color | Black |
Dimensions
| Width | 38.1 mm | 1.5 in |
| Length | 4572 mm | 180 in |
| Nominal Size | 1-1/4 in | 1-5/8 in | 1/2 in | 1/4 in | 2-1/4 in | 3/8 in | 5/8 in | 7/8 in |
Material specifications
| Material Type | Silicone tape |
Environmental specifications
| UV Resistance Test Method | ASTM D518, Test Method B |
| Weather Resistance Test Method | 04AS00-03.6.0 | MIL-STD-1344A, Method 1002 |
Packaging and weights
| Height, packed | 83.82 mm | 3.3 in |
| Width, packed | 83.82 mm | 3.3 in |
| Length, packed | 5.08 mm | 0.2 in |
| Packaging quantity | 2 |
| Weight, gross | 0.1 kg | 0.22 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Weatherproofing tape |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides additional moisture seal for cable connections |
| Applications per Kit | Four 1/2 in–1/2 in | One 1/2 in–2-1/4 in | Two 1/2 in–7/8 in | Two 1/2 in–7/8 in to device |
| Color | Black |
Dimensions
| Width | 38.1 mm | 1.5 in |
| Length | 4572 mm | 180 in |
| Nominal Size | 1-1/4 in | 1-5/8 in | 1/2 in | 1/4 in | 2-1/4 in | 3/8 in | 5/8 in | 7/8 in |
Material specifications
| Material Type | Silicone tape |
Environmental specifications
| UV Resistance Test Method | ASTM D518, Test Method B |
| Weather Resistance Test Method | 04AS00-03.6.0 | MIL-STD-1344A, Method 1002 |
Packaging and weights
| Height, packed | 83.82 mm | 3.3 in |
| Width, packed | 83.82 mm | 3.3 in |
| Length, packed | 5.08 mm | 0.2 in |
| Packaging quantity | 2 |
| Weight, gross | 0.1 kg | 0.22 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
